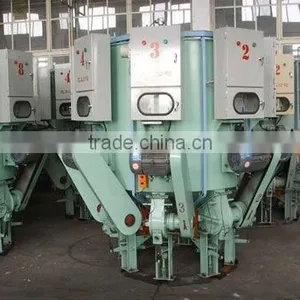

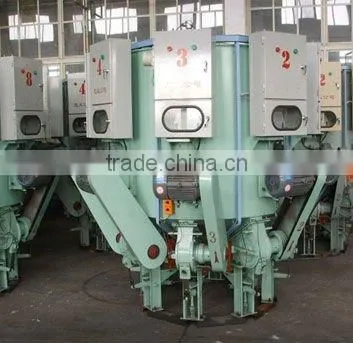

3 Spouts Fixed Automatic Cement Packing Machine

Name: 3 Spouts Fixed Automatic Cement Packing Machine
Brand: Huanqiu heavy
SKU: 139856727
Availability: InStock

US$ 8,000 - 80,000 MOQ: 1 Set

Key Specifications

Condition:

New

Application:

Other, Machinery & Hardware

Packaging Type:

Other, bags

Zhengzhou Huanqiu Heavy Industries Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai Tianjin

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Application Other, Machinery & Hardware

Packaging Type Other, bags

Packaging Material Metal

Automatic Grade Automatic

Driven Type Electric

Voltage 220v

Power 4kw

Place of Origin Henan, China

Brand Name Huanqiu heavy

Model Number cement packing machine

Dimension(L*W*H) 19500

Weight 3.9t

Certification CE AND ISO

Specifications

3 spouts cement packing machine
1.45T/H FOR PACKING CEMENT
2.AUTOMATIC WITH INSERT
3.1-12 SPOUTS PAKCING MACHINE FOR POWDER

Technical parameter of model BHYW-8D Rotary Cement Packing Machine

No.	Description			Unit	Technical data
1	Qty of filling spouts			pc	8
2	Designed bag filling capacity			t/h	120
3	Style of material filling				Central filling
4	Style of material feeding				Impeller
5	Form of weighing device				Computerized
6	weighing Precision	Weight of single bag		kg	50
		Error of single bag weight		kg	+0.4 -0.2
		Total weight of successive 20 bags		kg	1000~1004
7	Outer diameter of rotary hopper			mm	φ1520
8	Outer diameter of filling spouts			mm	φ2250
9	Distance from a filling spout to the ground			mm	1180
10	Max. rotary diameter			mm	φ2500
11	Driver Speed adjusting style				Frequency controller
12	Range of speed adjusting			rpm	0~6
13	Rated rotate rate of the machine			rpm	5
14	Power supply				AC 380V 3N 50HZ
15	Fluctuation			%	+10 -15
16	Main drive reducer		Model		BLD₃-59-2.2
16	Main drive reducer		Speed ratio		59
17	Main drive motor		Model		Y100L₁-4
			Power	kW	2.2
			Rotate velocity	rpm	1450
			Protection level		IP54
18	Filling motor		Model		Y112M-4
			Power	kW	4
			Rotate velocity	rpm	1450
			Protection level		IP54
			Quantity	pc	8
19	Double-position solenoid driver		Model		MQZ2-50-300
			Voltage	V	200
			Range	mm	50
			Operational frequency	times/h	360
20	Power of whole machine			kW	4×8+2.2=34.2
21	Dust collection airflow			m³/h	15000
22	Dust collection air pressure			Pa	-600
23	Rotary direction of the machine			Overhead view	Clockwise/anti-clockwise
24	Height of the machine			mm	6430
25	Total weight			kg	5000

The cement packing machine is equipped with new type control mechanism.
The advantages are simple structure, convenient maintenance, reliable operation and automatic functions of bag press and release, throttle close and bag dropping without any pneumatic element.
This type of cement packing machine also has some new characteristics,such as high precision measurement, reliable operation, convenient adjustment and maintenance etc.
