Specifications
Rotary Cement Packerautomatic operation with microcomputer
great packing capacity
bag inserting manually
6-12 Spouts
Specifications

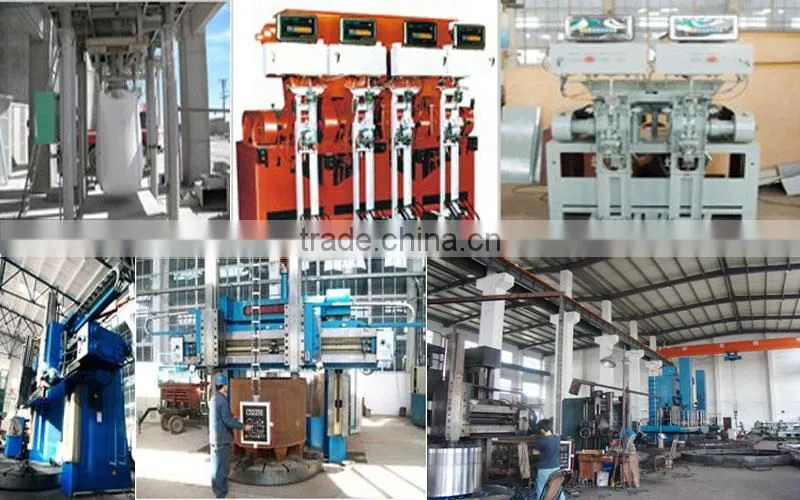

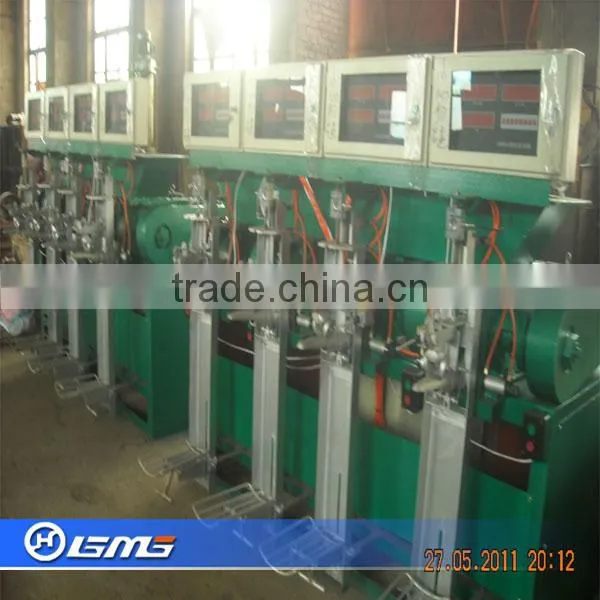

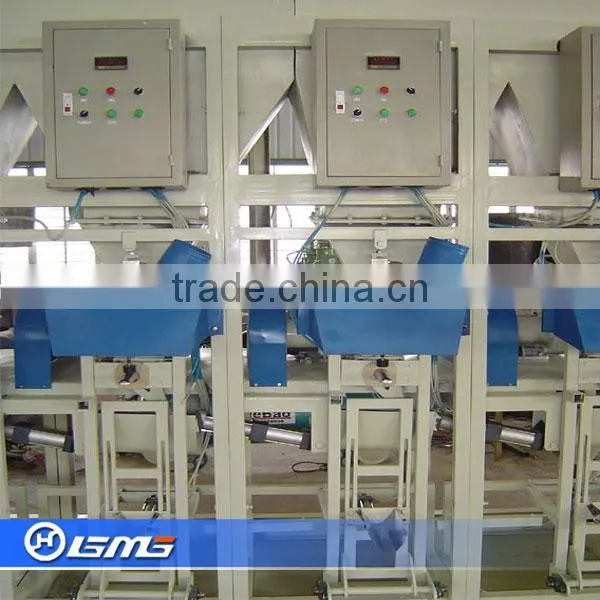

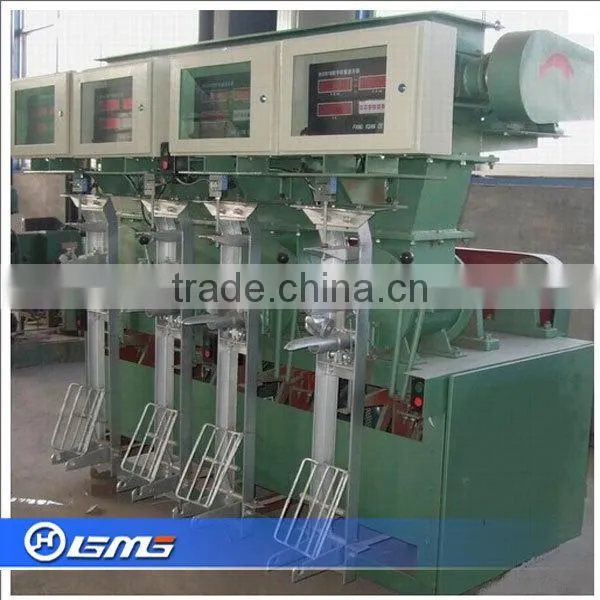

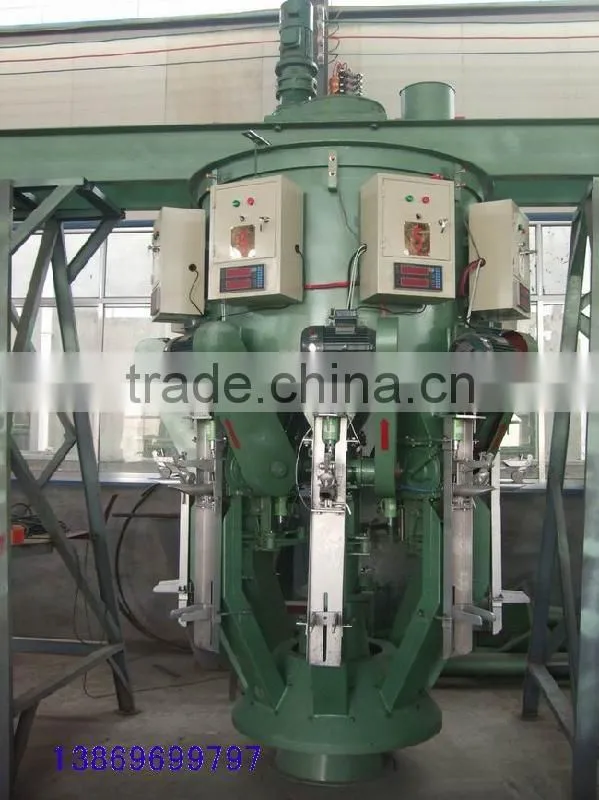

3 Spouts Impeller type cement packer for cement grinding station
1.Cement rotary packer
2.OEM accepted
3.Competitive price with good quality
4.Professional engineers for technology support
5.Energy saving and environment protection
This series of Cement rotary packer are mainly used for cement packing and also for the other powder and granular materials with good floating performance, during the packing process, except manually inserting bags on the discharging spouts, it can realize the work of filling up, weighing, falling down bags automatically and continuously.
Adopting computer scale measurement, Rotary Type Cement Packing Machine is characterized of high measuring precision and stable performance.

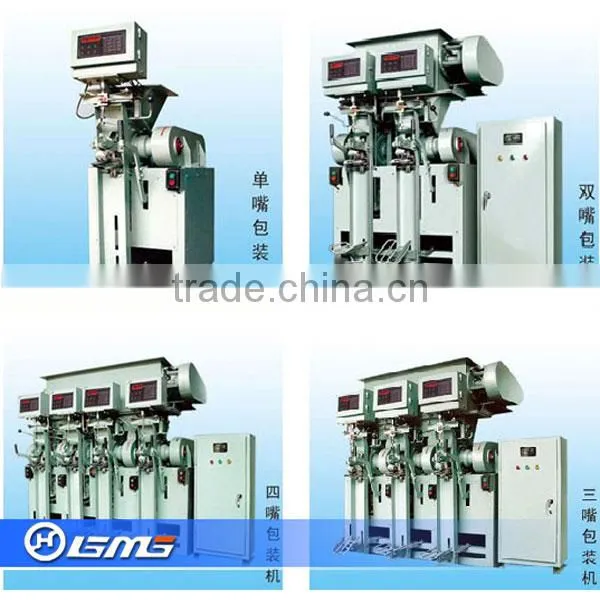

Besides five types of packing machine predesigned: 2-nozzles, 4-nozzles, 6-nozzles, 8-nozzles etc, we also offer design and remodel service by client requirement of special type packing machine.
Features of 6-12 Spouts Gypsum Powder Rotary Cement Packer machine:
2.Except bag inserting manually ,all of above operations can be continuously ,automatically completed ,such as filling ,measuring ,bag falling down etc,
3.special functions :
4.more advantages such as rational structrue ,accurate measurement ,,low energy consumption, greater packing capacity, convenient maintenance etc.
5.most outstanding feature is:
6.The series packer is equipped with microcomputer balance which is designed by our technical team considering the structure of rotary packer and cement material packing characteristic and it has high accurate measurement and good stability.
Technical Parameter of Rotary Cement Packer/packing machine:
No. |
Description |
Units |
Data |
No. |
Description |
Units |
Data |
|||
1 |
Qty. of spout |
Piece |
8 |
11 |
Power fluctuations |
% |
+10 -15 |
|||
2 |
capacity |
t/h |
120 |
12 |
The main drive reducer |
BLD3-59-2.2 |
||||
3 |
Weighing Precision |
Single bag weight |
kg |
50 |
13 |
The motor |
model |
Y100L1-4 |
||
Power |
kW |
2.2 |
||||||||
95% single bag weight error |
kg |
+0.4 -0.2 |
14 |
Discharging Motor |
model |
Y112M-4 |
||||
Power |
kW |
4 |
||||||||
speed |
r/min |
1440 |
||||||||
The total weight of 20 consecutive bags |
kg |
1000-1004 |
||||||||
Protection level |
IP44 |
|||||||||
4 |
Rotating tube diameter |
mm |
φ1520 |
|||||||
5 |
The outer diameter of spout |
mm |
φ2250 |
15 |
power |
kW |
4×8+2.2=34.2 |
|||
6 |
The distance from spout to the ground |
mm |
1180 |
16 |
The dust collecting airflow |
m3/h |
10000 |
|||
7 |
The max.Turning diameter |
mm |
φ2500 |
17 |
Pressure of dust collecting wind |
Pa |
-600 |
|||
8 |
The range of turning speed |
r/min |
0~6 |
18 |
The direction of turning |
Overlooking |
clockwise |
|||
9 |
The speed limit |
r/min |
5 |
19 |
Height |
mm |
6430 |
|||
10 |
Power supply |
AC 50Hz 3N 380V |
20 |
Total weight |
kg |
6000 |
||||
