High quality concrete pump truck
- 10 Set / Sets per Month
- Qingdao
- T/T L/C D/P D/A Credit Card PayPal
- outdoor Medium High pressure Portable abrasive waterjet reinforced concrete cutting machine
- 52 Meter Concrete Pump Truck
- Sany concrete pump hose reel 60031864
- Zhongyi motor concrete pump parts
- 37 Meter Concrete Pump Truck
- diesel mini concrete pump for sale Aggregate size 30mm post tension grout mortar cement pump
Product Details
Condition: | New | Power Type: | Diesel | Place of Origin: | Shandong, China |
Brand Name: | Lianchuang | Model Number: | HJC5320THB-47 | Weight: | 32300kg |
Dimension(L*W*H): | 12000x2500x4000mm | Certification: | ISO9001 | Warranty: | One year, one year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
1.Well and high quality control.2. Good after-sales service.
3. Concrete pump truck

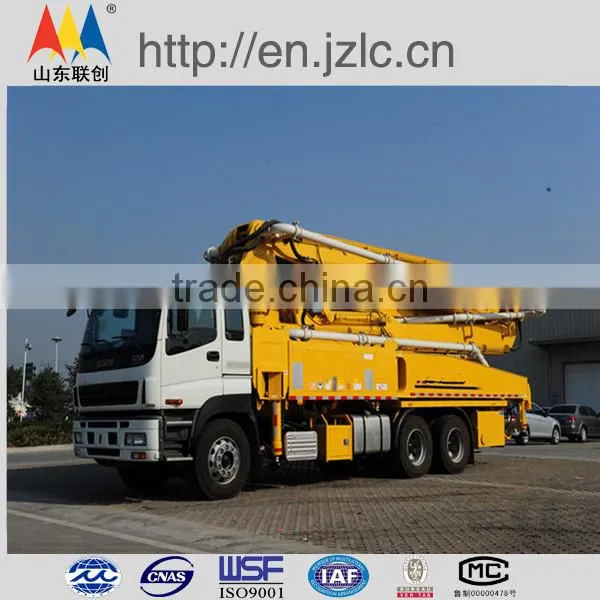

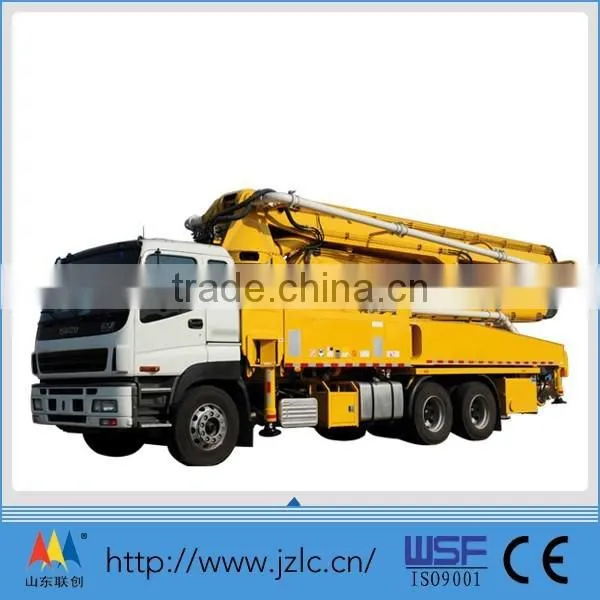

Concrete pump truck show
Specifications of the concrete pump truck
Model | Unit | HJC5320THB-47 | ||||||
Overall specification | L×W×H | mm | 12000x2500x4000 | |||||
Gross weight | Kg | 32300 | ||||||
Boom | Folding style |
| 5“RZ” | |||||
Articulation |
| 90/180/180/250/180 | ||||||
Vertical reach | m | 46.8 | ||||||
Horizontal reach | m | 42.8 | ||||||
Reach depth | m | 30 | ||||||
Unfolding height | m | 9.6 | ||||||
Rotation |
| 365° | ||||||
End hose length | m | 3 | ||||||
Hydraulic system pressure | MPa | 35 | ||||||
Outrigger | Folding style |
| “X” | |||||
Spread L-R front | m | 9.23 | ||||||
Spread L-R rear | m | 9.99 | ||||||
Pumping system | Theoretical concrete displacement | High pressure | m3/h | |||||
Low pressure | m3/h | 120 | ||||||
Theoretical pumping pressure | High pressure | MPa | ||||||
Low pressure | MPa | 7 | ||||||
Delivery cylinder bore | mm | 230 | ||||||
Delivery cylinder stroke | mm | 2000 | ||||||
Hopper capacity | L | 600 | ||||||
Slump scope | cm | 14~23 | ||||||
Max. aggregate size | mm | 40 | ||||||
System pressure | MPa | 32 | ||||||
Power system | Transfer case |
| Germany STIEBEL | |||||
Master pump |
| Germany Rexroth | ||||||
Boom/outrigger pump |
| Germany Rexroth | ||||||
Water pump | Drive mode |
| Hydraulic drive | |||||
Displacement | L/min | 20 | ||||||
Others | Remote controller |
| Germany HBC | |||||
Water tank capacity | L | 300 | ||||||
Oil tank capacity | L | 740 | ||||||
Hydraulic oil cooling method |
| Air cooled | ||||||
Lubrication method |
| Automatic hydraulic lubrication | ||||||
Chassis | Model |
| ISUZU CYZ51Q | BENZ ACTROS3341 | BENZ ACTROS3341 | |||
Wheelbase | 1-2 shaft | mm | 4595 | 4500 | 4500 | |||
2-3 shaft | mm | 1310 | 1350 | 1350 | ||||
tread | 1 shaft | mm | 2065 | 2034 | 2034 | |||
2-3 shaft | mm | 1850 | 1804 | 1804 | ||||
Min. turning radius | m | 8.8 | 9.9 | 9.9 | ||||
Tire |
| 295/80R22.5 | 315/80R22.5 | 315/80R22.5 | ||||
Engine | Model |
| ISUZU 6WF1A | OM501 LA V6 | OM501 LA V6 | |||
Power |
| 265kw/1800rpm | 300kw/1800rpm | 300kw/1800rpm | ||||
Displacement | ml | 14256 | 11946 | 11946 | ||||
Emission standard |
| Euro | Euro | Euro | ||||
Transmission | Model |
| MAL6U | G240-16/11.7~0.69 | G240-16/11.7~0.69 | |||
Operating method |
| Manual | Manual | Manual | ||||
Forward gears |
| 6 | 16 | 16 | ||||
Pumping gear |
| 5 | 14 | 14 |
After-sales service
1.May enjoy the life-long service after you buy our products.
2.Training the operator for free.
3. Under the condition that foundation, water source, power source, aggregate, hosting equipment, auxiliary staff is ready. Engineers are available if you need.
4.Certain quantity stochastic tool will be provided while delivering goods.
5. Promptly provides the fittings according to users’ demands, handles for the user consigns for shipment.
6. All products (easy worn parts not included) loss caused by non-human factors will be free of charge for half a year.
7. Provides the technology advisory service as necessary.
8. Please contact me via telephone 86531-58680778 or mobile 8615153122217 when you have any problems with the plant.

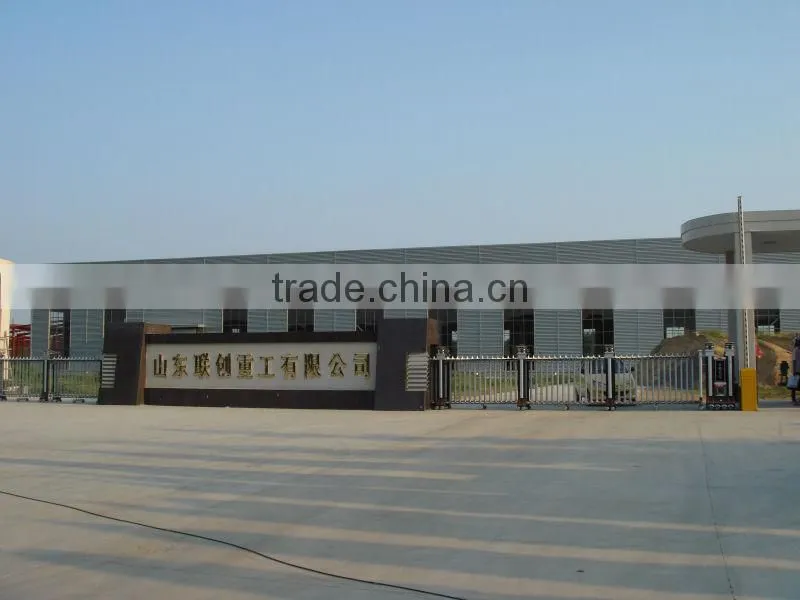

Our company
