Small scale mobile stone crushing plant with high efficiency
Stone Crushing Plant Usage and Application:

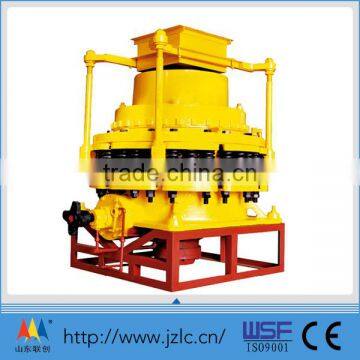

This Stone Crushing Plant mainly consists of Vibrating Feeder, Jaw Crusher, Cone Crusher or Impact Crusher, Vibrating Screen, Belt Conveyor and Control System, etc. It is completely capable to crush and screen limestone, marble, granite, basalt, river gravel and other hard stone materials, and produce sand & gravels with various granularities for construction and building industry. We are able to design and manufacture complete crusher plants with capacity from 30tph to 500tph, and to provide optimum and most economical solutions according to customers' requirements on stone specifications, output, application, etc.
Stone Crushing Plant Working Principle
Large stone materials from the storage hopper are evenly and continuously fed into jaw crusher through vibrating feeder for primary crushing; the crushed materials are transported to cone crusher or impact crusher for fine crushing through belt conveyor; then the materials are transported to vibrating screen to be separated into different sizes. The end products with desired sizes will be transported to the final product pile and those with big sizes will return to the cone crusher or impact crusher for re-crushing. This forms closed and continuously automatic cycles. The plant can be equipped with dust removing facilities to protect environment according to customers' requests.
Stone Crushing Plant Features
1.High degree of automatic operation; the entire production line requires almost no manual operation except for machine starting and stopping, routine maintenance.
2. High productivity, low investment, and good appreciation.
3. Regular end product granularity, good grain shape, and low powder output.
4. Adopting high advanced control system to ensure security and reliable operation of the entire production line.
Stone Crushing Plant Configurations for Referance
20-30t/h stone crushing plant configuration
No. |
Name |
Model |
Quantity(set) |
Power(kw) |
1 |
Vibrating feeder |
GZD750×2500 |
1 |
5.5 |
2 |
Jaw crusher |
PE250×400 |
1 |
18.5 |
3 |
Impact crusher |
PF0807 |
1 |
45 |
4 |
Vibrating feeder |
3YK1235 |
1 |
5.5 |
Belt conveyor
No. |
Name |
Specification |
Quantity(set) | Power(kw) |
1 |
belt conveyor |
B500×12/m |
1 |
4 |
2 |
belt conveyor |
B500×15/m |
1 |
4 |
3 |
belt conveyor |
B400×16/m |
1 |
4 |
4 |
belt conveyor |
B400×15/m |
3 |
3×3 |
Note: the belt conveyor may have slight changes according to the site situation.
30-50t/h stone crushing plant configuration
No. |
Name |
Model |
Quantity(set) |
Power(kw) |
1 |
Vibrating feeder |
GZD850×3000 |
1 |
7.5 |
2 |
Jaw crusher |
PE400×600 |
1 |
30 |
3 |
Impact crusher |
PF1008 |
1 |
55 |
4 |
Vibrating feeder |
3YK1235 |
1 |
5.5 |
Belt conveyor
No. |
Name |
Specification |
Quantity(set) |
Power(kw) |
1 |
Belt conveyor |
B650×15/m |
1 |
5.5 |
2 |
Belt conveyor |
B650×12/m |
1 |
5.5 |
3 |
Belt conveyor |
B500×16/m |
1 |
4 |
4 |
Belt conveyor |
B500×15/m |
3 |
3×4 |
Note: the belt conveyor may have slight changes according to the site situation.
50-70t/h stone crushing plant configuration
No. |
Name |
Model |
Quantity(set) |
Power(kw) |
1 |
Vibrating feeder |
GZD850×3000 |
1 |
11-15 |
2 |
Jaw crusher |
PE500×750 |
1 |
55 |
3 |
Impact crusher |
PF1010 |
1 |
75 |
4 |
Vibrating feeder |
3YK1545 |
1 |
15 |
Belt conveyor
No. |
Name |
Specification |
Quantity(set) |
Power(kw) |
1 |
Belt conveyor |
650×20m |
1 |
7.5 |
2 |
Belt conveyor |
650×20m |
1 |
7.5 |
3 |
Belt conveyor |
500×20m |
1 |
7.5 |
4 |
Belt conveyor |
500×15m |
3 |
3×4 |
Note: the belt conveyor may have slight changes according to the site situation.
There are more configurations of stone crushing plant, 70-120t/h, 130-180t/h, 160-250t/h and 260-360t/h.
Our services:
As a professional exporter,our target is to serve worldwide clients with high-quality products,greatreliability,devoted responsibility,professional services and honorable credibility to meet customers' requirements in all aspects. We will supply you 24 hours a day and 7 days a week after-sale services.
About after-sales and Packaging team:
1.Spare parts will be delivered as you need.
2.Engineers will go to clients’ site for guiding the installation and test-running;
3.Warranty period: 12 months since the installation and commisioning;
4.Service team will follow every placed order regularly till warranty period finished
For any question, please inform us freely, we are assure you of best services at all times!
