Concrete Truck Pump 37m

Specifications

Concrete Truck Pump
1.37m concrete truck pump
2. Isuzu chassis
3. friendly and convenient maintenance
4. easy operation

Concrete Truck Pump 37m

Concrete Truck Pump 37m Introduction

A Cummins engine with a Nikko transfer case features a powerful transmission and reliable operation.

The hydraulic system uses a constant power open hydraulic system. The Nikko electronic control reversing system features simple operation, easy maintenance and reliability.

As for the pumping system, the truck can pump concrete with the trailer pump or using external pipes. The Nikko advanced silencing technology ensures low noise and decreased vibration during pumping operation. The D-valve provides for easy cleaning and maintenance. The pumping system utilizes wear-resistent eye plates and cutting rings for reduced operating costs. The rear drive uses a S-pipe and shaft-less hopper for smooth flow, pump efficiency, and lower pressure loss. Constant pressure is applied automatically to adjust the clearance between the S-pipe and eye plate, for automatic sealing and to prevent cement leakage. Automatic material detection alerts operator via indicator lights.

Concrete Truck Pump 37m  Technical Paramter:

Model			Unit	HJC5270THB-37
Overall specifications	L×W×H		mm	12000×2500×4000
	Gross weight		Kg	27000
Boom	Folding style			4“R”
	Articulation			90/180/180/240
	Vertical Reach		m	36.6
	Horizontal Reach		m	32.6
	Reach Depth		m	23.7
	Unfolding Reach		m	6.5
	Rotation			365°
	End hose length		m	4
	Hydraulic system pressure		MPa	32
Pumping specifications	Theoretic concrete displacement	High pressure	m3/h	81
		Low pressure	m3/h	138
	Theoretical pumping pressure	High pressure	MPa	9.4
		Low pressure	MPa	5.5
	Delivery cylinder bore		mm	230
	Delivery cylinder stroke		mm	2000
	Hopper capacity		L	600
	Slump scope		cm	14~23
	Max. aggregate size		mm	40
	System pressure		MPa	32
Power system	Transfer case			Germany Stiebel
	Master pump			Germany Rexroth
	Boom/outrigger pump			Germany Rexroth
Water pump	Drive mode			Hydraulic drive
	Displacement		L/min	20
Others	Remote controller			Germany HBC
	Water tank capacity		L	300
	Oil tank capacity		L	700
	Hydraulic oil cooling method			Air cooled
	Lubrication method			Automatic hydraulic lubrication
Chassis	Model			ISUZU CYZ51Q
	Wheelbase	1-2 shaft	mm	4595
		2-3 shaft	mm	1310
	Tread	1 shaft	mm	2065
		2-3 shaft	mm	1850
	Min. turning radius		m	8.8
	Tire			295/80R22.5
Engine	Model			ISUZU 6WF1A
	Power			265kw/1800rpm
	Displacement		ml	14256
	Emission standard			Euro Ⅲ
Transmission	Model			MAL6U
	Operating mode			Manual
	Forward gears			6
	Pumping gear			5

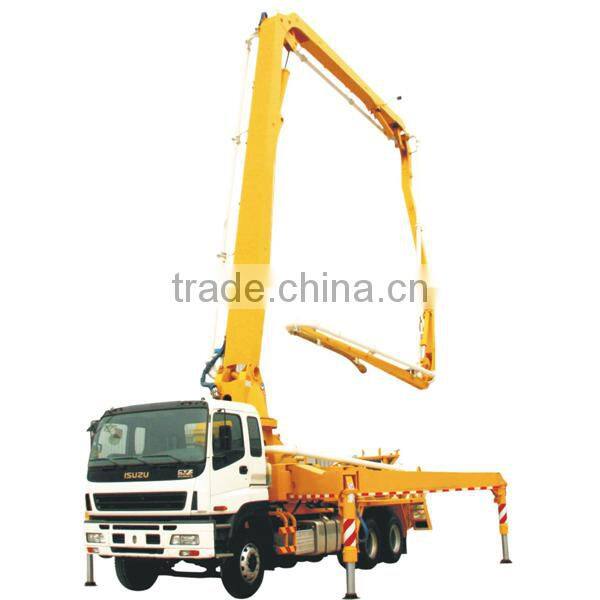

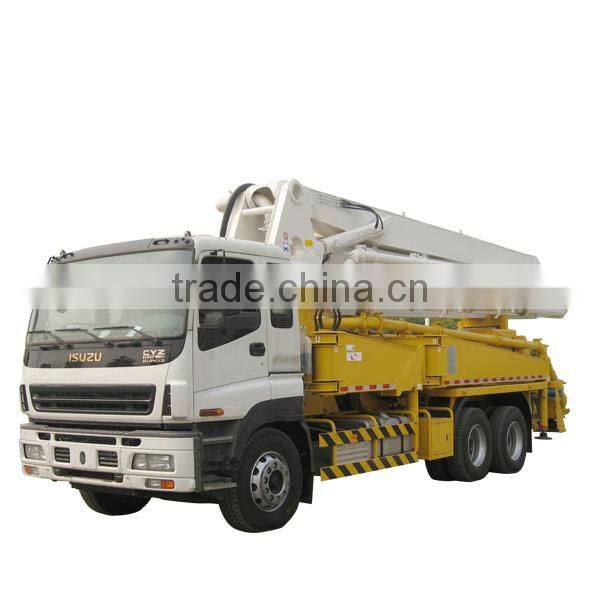

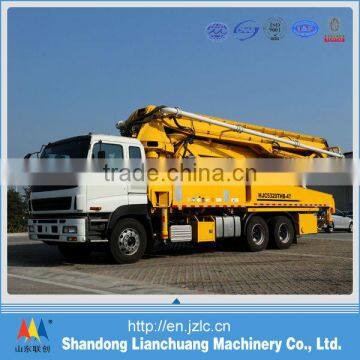

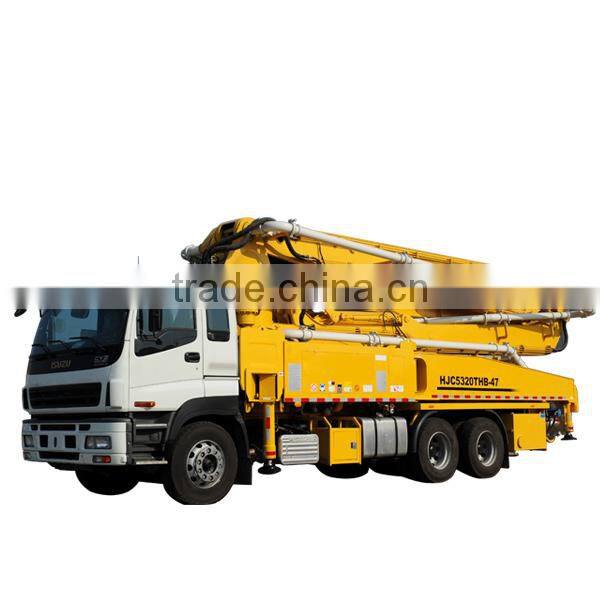

Concrete Truck Pump 37m Pictures for reference:
