Specifications
mobile concrete mixing plant1.Excellent Mixing performance
2.Accurate Weighing
3.Environmentally Friendly
4.ISO 9001:20

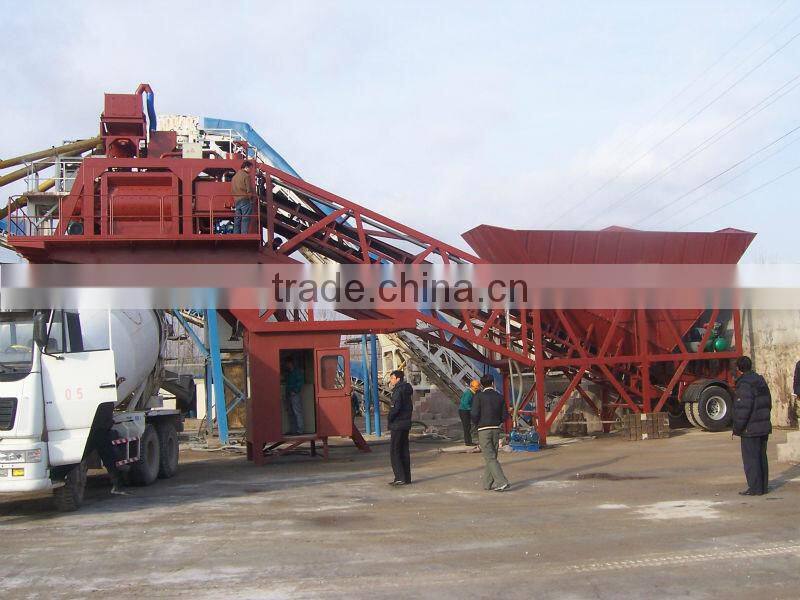

YHZS50 mobile ready mixed concrete plant
Technical parameter of mobile concrete batching plant:
ItemsModel |
mobile trailer batching plant YHZS50 | |
| Mixing Plant | heoretical productivity (m3/h) | 50 |
| Control | Microcomputer | |
| Measurement | Electronic Batcher | |
| Dumping Height (m) | 2.8-3.8 | |
| Installation Capability (kw) | 100 | |
| Mixer | Mixer Model | JS1000 |
| Power (Kw) | 18.5x2 | |
| Charge Capacity (L) | 1500 | |
| Discharge Capacity (L) | 1500 | |
| Material Diameter (Scree/Gravel) | 40-80 | |
| Aggregate Storage System | Batcher Model | PL1600 |
| Materials | 4Piece | |
| Measurement Range & Precision | 200-2500±2% | |
| Powder Storage System | Capacity (t) | 50x1 |
| Spiral Conveyor Capacity (t/h) | 45 | |
| Cement Measurement Range & Precision | 50-600±1% | |
| Coal Ash & Powder Admixture Measurement Range & Precision | 50-200±1% | |
| Water-reducing Admixture Storage System | Water Measurement Range (kg) | 50-350 |
| Water Measurement Range (kg) | ±1% | |
| Liquid Admixture Range (kg) | 5-20 | |
| Measurement Precision | ±1% | |
Model |
YHZS25 |
YHZS40 |
YHZS75 |
Production rate m3/h |
25 |
40 |
75 |
Matching stirring mill |
JS500 |
JS750 |
JS1500 |
Storage bin capacity m3 |
2×4 |
2×4 |
2×5 |
Aggregate measuring accuracy % |
±2 |
±2 |
±2 |
Cement measuring accuracy % |
±1 |
±1 |
±1 |
Water measuring accuracy % |
±1 |
±1 |
±1 |
Fly ash measuring accuracy % |
±1 |
±1 |
±1 |
Additive measuring accuracy % |
±1 |
±1 |
±1 |
Trail Speed |
15km/h |
15km/h |
15km/h |
Wheelbase (outside) |
2,800mm |
2,800mm |
2,800mm |
Concrete mixer
JS1000 serial double horizontal shaft compulsion type concrete mixer is a multi-function mixer, can be applied to mixer dry-hard concrete, plastic concrete, light aggergate concrete and all kinds of mortar.
This mixer has characteristics of simple structure, high mixing quality, hige efficiency, energy-saving, low noise, simple operation, and can be used together with dump car, truck and concrete mixing truck, it is the ideal machine of construction sites, large and medium-sized concrete factories

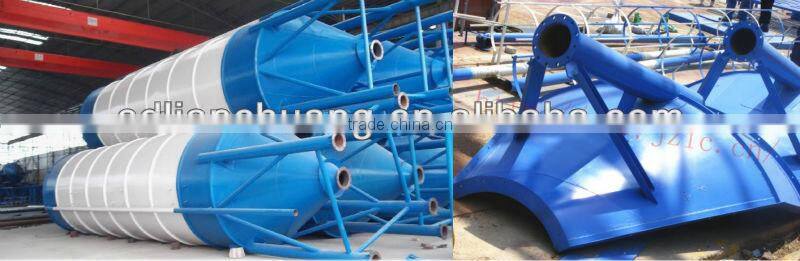

cement silo
Serial number |
Spec |
Diameter mm |
Leg height mm |
Theoretical capacity t |
1 |
SNC60T |
2800 |
2 m |
60 |
2 |
SNC100T |
2800 |
2 m |
100 |
3 |
SNC150T |
3900 |
4.2m |
150 |
4 |
SNC200T |
4500 |
4.2 m |
200 |
Note: The above technical parameters are just for your reference.
Multi-pieces cement silo has featurss of easy transportation by container and quick installation and service on site.

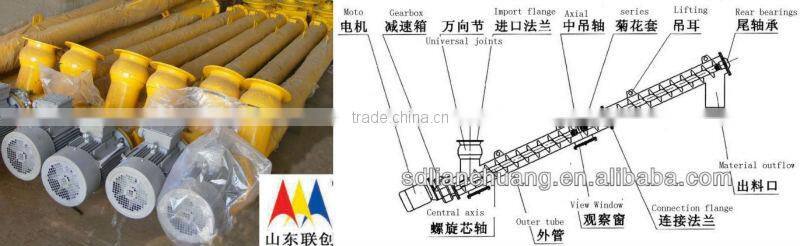

Screw conveyor

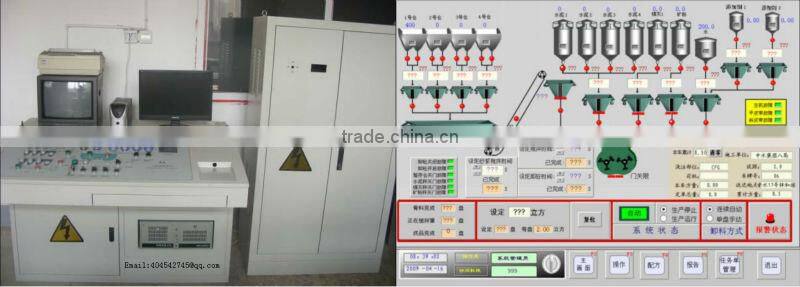

Electric contorl
The electrical control system of the plant can control two independent set of mixers, cement weigher, water weigher, liquid additive weigher and aggregate batching system. The aggregate batching system can finish the batching task automatically. There ia a highly reliable PLC and industry computer to control the concrete mixing plant. The component of electrical control system adopts imported parts from Japan OMRON company and French Schnider

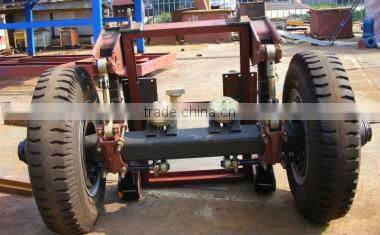

dragged system
Success Case
So far as now, our concrete mixers are sold in Mongolia, Uzbekistan, Kazakhstan, Congo, Nigeria, Singapore, Ghana, Russia, Chile, Philippines, Kenya, Armenia,
Our stationary concrete batching plants are sold in Nigeria, Congo, Chile, Philippines, Mongolia, Russia, Kazakhstan, Uzbekistan, Russia, Nigeria, Armenia, etc..
Our mobile concrete batching plants are sold in Mongolia, Russia, Kazakhstan, Uzbekistan, Pakistan, Philippines, etc.
What's more, they have received praise with good quality and excellent after-sale service.
You are always welcomed to visit our company and workshop!!
Our Service
As a professional exporter, our target is to serve worldwide clients with high-quality products, great reliability, devoted responsibility, professional services and honorable credibility to meet customers' requirements in all aspects. Offer skillful after-sale-service specialists are available for all customers at 7/24 hours every week.
certification
Welcome to visit our factory !
