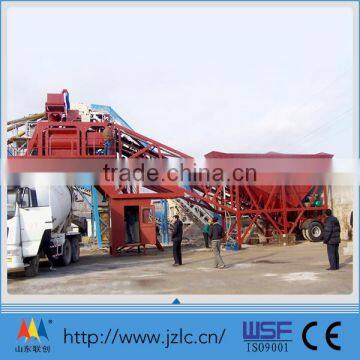

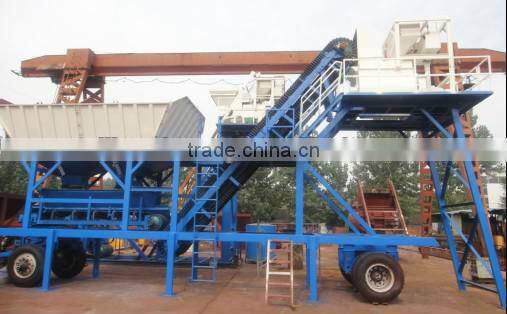

portable concrete mixing plant YHZS25
YHZS series of mobile concrete batching plant is a new type of moveable concrete batching plant. It is your best choice for mobile operations in various constructions such as highway, railway, architecture, municipal engineering, bridge, port and hydropower station.
Technical parameter of mobile concrete batching plant:
Model |
YHZS25 mini mobile concrete batching plant for sale |
Rated Productivity |
25m3/h |
Batching Unit |
PLD800 |
Measuring Scope & Accuracy of Aggregate |
1500Kg ±2% |
Measuring Scope & Accuracy of Cement |
300Kg ±1% |
|
Measuring Scope & Accuracy of Water (by flow meter) |
200Kg ±1% |
Discharging Height |
3.8 m |
|
Outline Dimension(Operational State) (L*W*H) |
14.5m *5.6m *5.9m |
General Power |
45.0KW (380V,50HZ) |
Total Weight |
7700Kg |
Control Mode |
Centralized control |
Cement Silos(Optional Parts) |
1*50T |
Screw Conveyor(Optional Parts) |
1*φ219 screw conveyor |
1. Batching System: PLD800-3 Aggregate Bin:3*3.2m3 Measuring Bin:1*0.8m3
2. Inclined Belt Conveyor: 28000mm*600mm 18°
3. Measuring System: measure water, cement and additive
4. Pneumatic system: air compressor 5.5kw
5. Electric Control System: control panel manually operated
6. Powder Supply System:LSY219mm*8M*11KW
Model |
YHZS25 |
YHZS40 |
YHZS50 |
YHZS75 |
Production rate m3/h |
25 |
40 |
50 |
75 |
Matching stirring mill |
JS500 |
JS750 |
JS1000 |
JS1500 |
Storage bin capacity m3 |
2×4 |
2×4 |
2×5 |
2×5 |
Aggregate measuring accuracy % |
±2 |
±2 |
±2 |
±2 |
Cement measuring accuracy % |
±1 |
±1 |
±1 |
±1 |
Water measuring accuracy % |
±1 |
±1 |
±1 |
±1 |
Fly ash measuring accuracy % |
±1 |
±1 |
±1 |
±1 |
Additive measuring accuracy % |
±1 |
±1 |
±1 |
±1 |
Trail Speed |
15km/h |
15km/h |
15km/h |
15km/h |
Wheelbase (outside) |
2,800mm |
2,800mm |
2,800mm |
2,800mm |
Concrete mixer

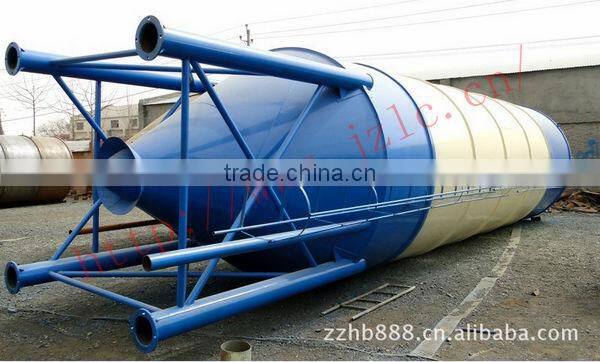

cement silo

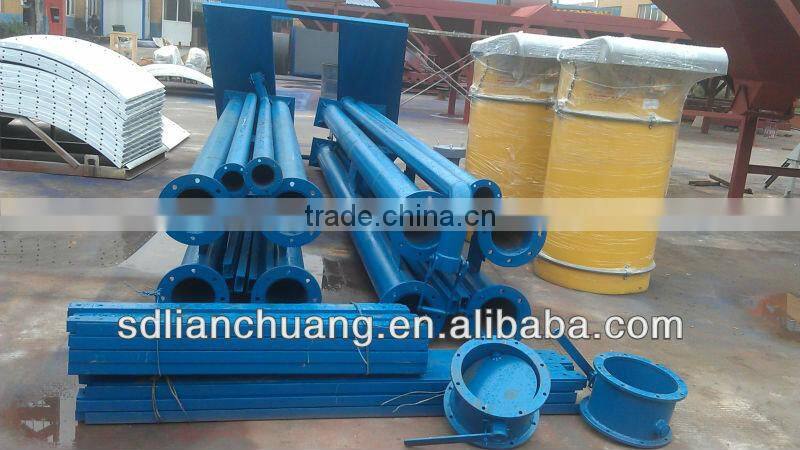

Screw conveyor
Batching

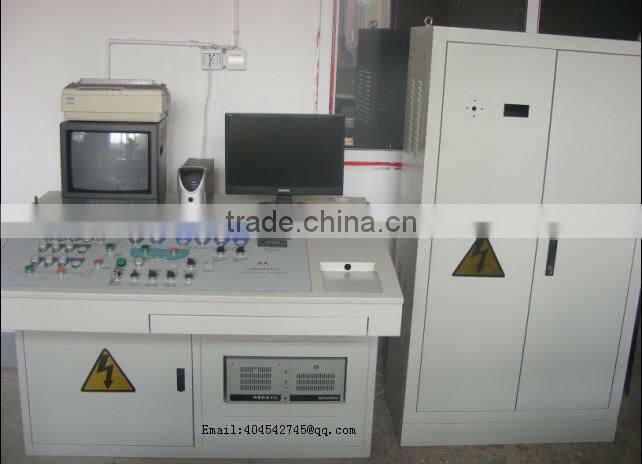

Electric contorl

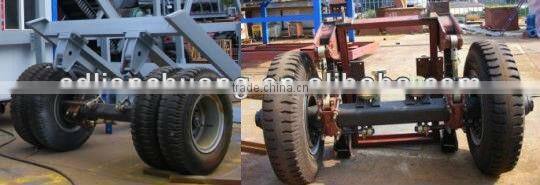

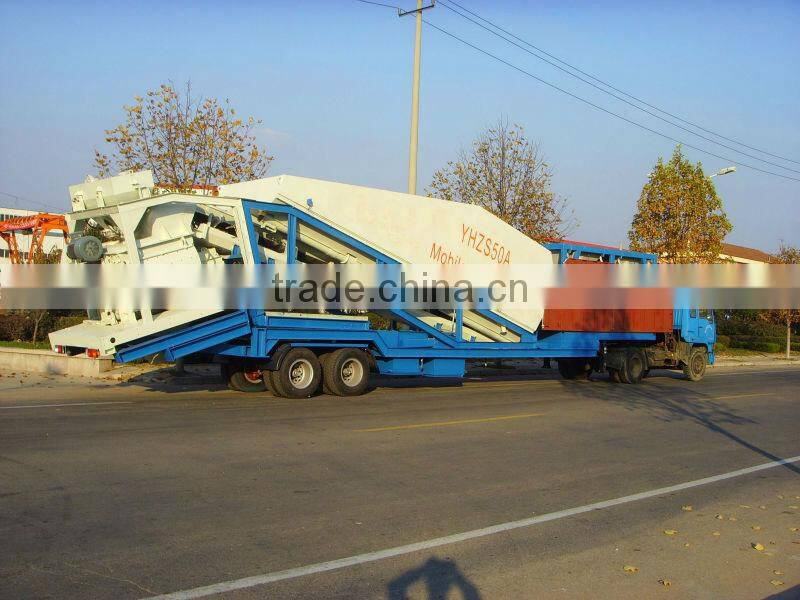

dragged system
After sale service
1.Spare parts will be delivered as you need.
2.Engineers will go to clients’ site for guiding the installation and test-running;
3.Warranty period: 12 months since the installation and commisioning;
4.Service team will follow every placed order regularly till warranty period finished
Success Case
So far as now, our concrete mixers are sold in Mongolia, Uzbekistan, Kazakhstan, Congo, Nigeria, Singapore, Ghana, Russia, Chile, Philippines, Kenya, Armenia,
Our stationary concrete batching plants are sold in Nigeria, Congo, Chile, Philippines, Mongolia, Russia, Kazakhstan, Uzbekistan, Russia, Nigeria, Armenia, etc..
Our mobile concrete batching plants are sold in Mongolia, Russia, Kazakhstan, Uzbekistan, Pakistan, Philippines, etc.
What's more, they have received praise with good quality and excellent after-sale service.
You are always welcomed to visit our company and workshop!!
Our Service
As a professional exporter, our target is to serve worldwide clients with high-quality products, great reliability, devoted responsibility, professional services and honorable credibility to meet customers' requirements in all aspects. Offer skillful after-sale-service specialists are available for all customers at 7/24 hours every week.
