Specifications
HBT100.13.132RSA8V Concrete PumpAutomatically control
Hydraulic integration design
High quality with competitive price

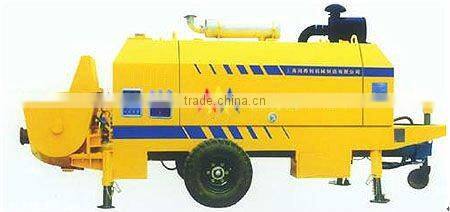

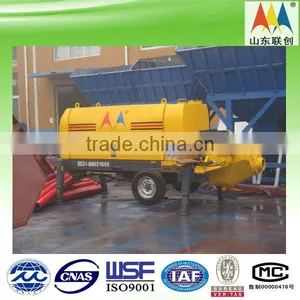

HBT100.13.132RS A8V Concrete Pump
Main motor adopts German Deutz and Volvo diesel engine; central hydraulic pump and valve adopts Germany Rexroth or Hawe products; pipe joint and hydraulic tubing adopt products imported from Germany and Italy; piston head adopts original products imported from Germany and implements global purchasing. Electric control of operation and control center adopts Siemens technology, improving integrating stability and reliability of pump; self-tracking of pumping speed, as the main body starts, just pressing send button, the rotate speed will be automatically tracked according to the instruction. If the work need to be increased as the normal work is over 1,000r/min, just pressing the button, the main body will change upon the instruction. The pump has three operation structures, which can be operated in the machine or remote control. If there is accident, the hand standby accelerator device is available.
Technical Data Sheet of LIANCHUANG Concrete Pump HBT50.8.55RSG
Parameter Name |
Unit |
Technical Data |
Remark |
Model |
|
HBT00.13.132RS A8V |
|
Theory output |
m3/h |
106/56 |
|
Theory pressure |
Mpa |
7/13 |
|
Approximate conveying distance |
m |
900 |
(Level) |
260 |
(Vertical) |
||
Delivery cylinder: diameter*journey |
mm |
220×1600 |
|
Diesel engine power |
kW |
132 |
|
Hopper capacity |
l |
550 |
|
Feeding height |
mm |
1400 |
|
Size: L×W×H |
mm |
5200*2160*2700 |
|
Approx. weight |
kg |
5500 |
|
Type |
|
(S-valve Trailer Concrete Pump) |
|
Grain size |
mm |
10—50,(Delivery pipe dia.)ø150 |
|
10—40,(Delivery pipe dia.)ø125 | |||
Slump |
mm |
100~230 |
|
Batching machine:
Certificates:
Our factory :
our customer:
Welcome come to our factory.
