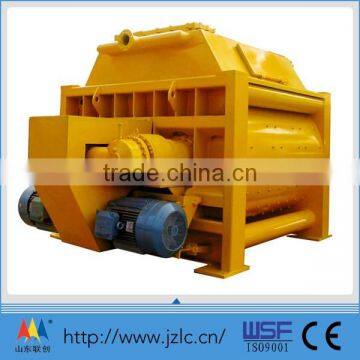

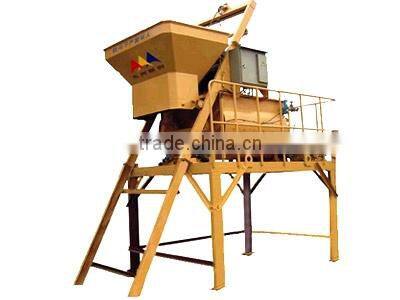

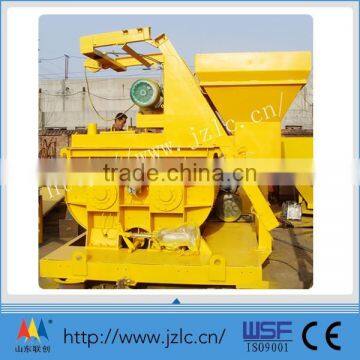

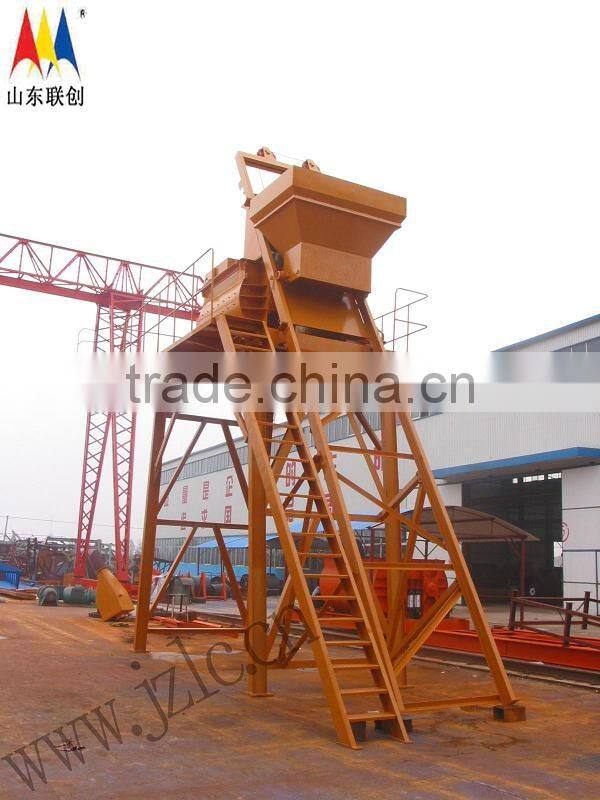

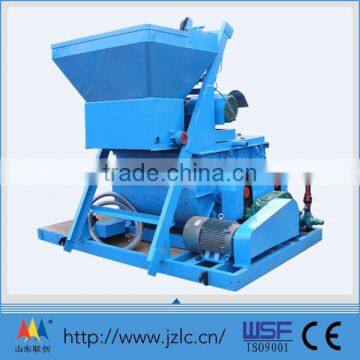

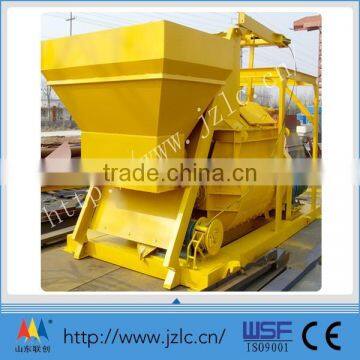

JS500 Concrete Mixers With Lifting System

Name: JS500 Concrete Mixers With Lifting System
Brand: Lianchuang
SKU: 139855071
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Place of Origin:

Shandong, China

Brand Name:

Lianchuang

Shandong Lianchuang Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Shandong, China

Brand Name Lianchuang

Model Number JS500

Motor Power 24.75KW

Mixing Power 18.5KW

Charging Capacity 800L

Reclaiming capacity 500L

Speed of Mixing Drum 36r/min

Water Supply Mode water pump

Working Cycle Period 35-45S

Discharge Way automatic

Outline Dimension 4480*3003*5634mm

After-sales Service Provided Engineers available to service machinery overseas

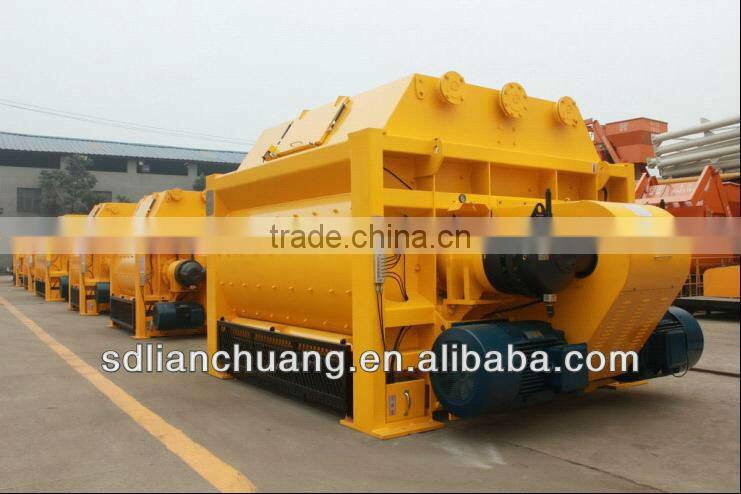

JS500 Concrete Mixers

Model		JS500	JS750	JS1000	JS1500	JS2000
Charging Capacity (L)		800	1200	1600	2400	3200
Reclaiming capacity (L)		500	750	1000	1500	2000
Rated production rate m3		25-30M	37-45	50-60	75-90	100-120
Aggregate Maximum grain diameter	Scree (mm)	80	80	80	80	80
Aggregate Maximum grain diameter	Gravel(mm)	60	60	60	60	60
Stirring vane	Rev(r/min)	36	33	27	27	24
Stirring vane	Qty	2×7	2×8	2×8	2×8	2×8
Main motor power KW		18.5	30	37	60	74
Discharging height (m)		1.6/3.8	1.6/2.2/3.0/3.8	3.8	3.8	3.8
Discharging type		Manual/ pneumatic/ electromotion	Pneumatic/electromotion	Pneumatic	Pneumatic	Hydraulic pressure
Total weight(Kg)		4100	5500	11000	12000	15000
Overall dimensions (LXWXH) mm		4448×3003×4606	4950×3636×6260	9500×3800×8605	11700×3800×9010	10560×3876×10710
