Specifications
1.Excellent mixing performance2.PLC control system
3.Easy operation
4.Reasonable price

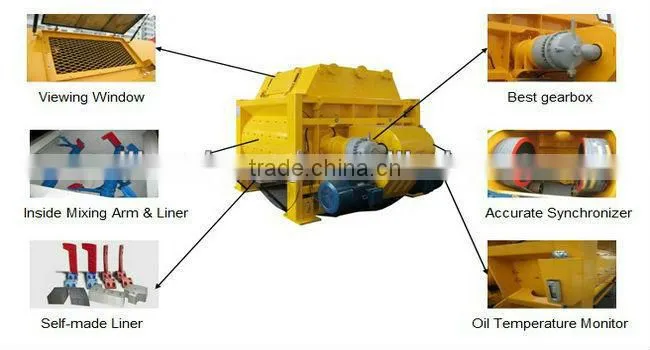

1. Horizontal twin-shaft compulsor mixer has the strong mixing ability with uniform mixing and high production output. The admixtures are widely mixed by the shafts, and reach the best proportional ratio of uniform
2. The mixing shafts adapt anti-binding technology to prevent the cement from binding on the shafts..
3. Mixing paddles, arms and blades are made of special high chromium and high manganese alloy materials. The wear resistance of the mixing paddles saves time and cost to replace, and at the same time, improves the machines durability and reliability.
4. The greasing system, which is controlled by central control system, lubricates the greasing points at the fixed position, fixed time and fixed quantity
5. Decelerating system uses high-speed, synchronized, and closed planetary. decelerators.
6. The opening of discharge gate can be adjusted by hydraulic system as per specific requirements.
| Model | HLS60 | HLS90 | HLS120 | HLS180 |
| Rated productivity ( m3/h) | 60 | 90 | 120 | 180 |
| Matching mixer | JS1000 | JS1500 | JS2000 | JS3000 |
| Storage bin capacity (m3) | 3×10 | 3×16 | 4×20 | 4×20 |
| Discharging height (m) | 3.8 | 3.8 | 3.8 | 3.8 |
| Total power (kw) | 78 | 112 | 150 | 198 |
| Aggregate measuring accuracy (%) | ±2 | ±2 | ±2 | ±2 |
| Cement measuring accuracy( %) | ±1 | ±1 | ±1 | ±1 |
| Water measuring accuracy (%) | ±1 | ±1 | ±1 | ±1 |
| Fly ash measuring accuracy( %) | ±1 | ±1 | ±1 | ±1 |
| Additive measuring accuracy (%) | ±1 | ±1 | ±1 | ±1 |
| Total weight( Kg) | 40000 | 52000 | 70000 | 85000 |
