Help CenterFlake Cement Silo/pieces of 100T Cement Silo
Related Products
-
Cement,concrete ,construction Mixing Plant !!!200T Concrete Cement SiloNegotiableMOQ: 1 Set -
50 Ton Used Cement Silo for Sale or 100t,150t,200tNegotiableMOQ: 1 Set
-
Multi-piece 100 Ton Concrete Cement SiloNegotiableMOQ: 1 Set
-
500t Cement SiloNegotiableMOQ: 1 Set
-
Multi-piece 60t Cement SiloNegotiableMOQ: 1 Set
Specifications
1.Rich expertise2.Wide storing capacity range
3.ISO9001:2008&CE
4.The silo body uses Galvanizing steel
5.Operated easil

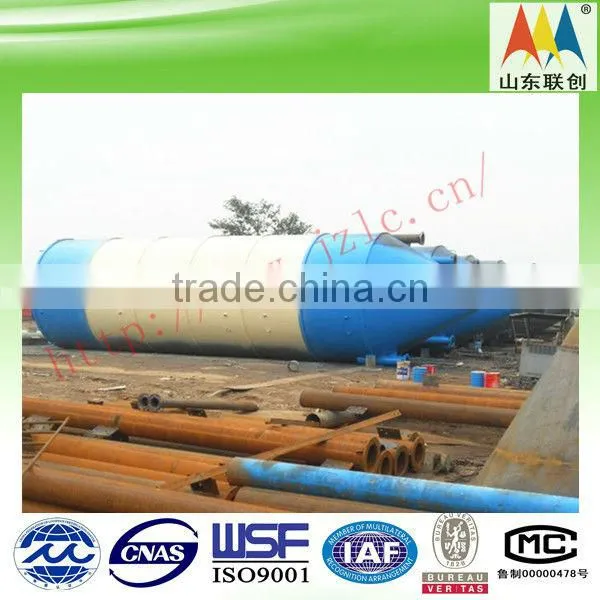

Flake cement silo/pieces of 100T cement silo
Advantages
- With different capacities:50T,100T,150T,200T,etc.
- Customized sizing and layout to specific requirement
- Sub-structure, easy transportation, installation fast, level display, with positive and negative regulator,Green filter
- Put in bulk powder (cement or fly ash), waterproof and moisture, easy to use and reduce costs , the top of cement silo with green filter, used to reduce dust leakage.
- Equipped with a safety valve at the top of cement silo, cement silo used to balance the pressure difference between inside and outside. Upper and lower parts of the cement silo is equipped with display materials, can monitor the number of cement materials warehouse. With gas in the lower part of broken cement storage devices, to ensure smooth unloading.
- Cement bin is cylinder and supporting structure. The superior part has dust removing device to avoid leakage of dust; and the inferior part is equipped with arch breaker to avoid powder caking and make discharging smooth, and bin level sensing device to master usage of material in the bin at any time.
-
Cement bin generally adopts bulk cement conveying truck to send powder in the bin by pneumatic conveying; according different structures of cement bin, there are two kinds of discharging: the first is the inferior part is connected with screw conveyer and screw conveyer send powders into powder measure; the second is to adopt pneumatic conveying (to special cement bin).
Model
100T
Silo Diameter (A)
3,000mm
Silo Body Height (H1)
9,810mm
Silo Cone Height (H2)
2,579mm
Silo Height (H3)
19,789mm
Total Height (H4) (including handrails)
20,902mm
Discharging Height (H5)
7,400mm
Total Weight
8T
Material
Q235
Steel Thickness (from Cone to Top)
6-6-5-4-3mm
Accessories
Dust Collector, Handrails, Inside& Outside Ladders,
Inlet Tube, Butterfly Valve, Support Legs, Arch Breaking
Serial number |
Spec |
Diameter mm |
Leg height mm |
Total height mm |
Theoretical capacity t |
1 |
SNC60 |
2,800 |
4,000 (6,000) |
8,130 |
60 |
2 |
SNC100 |
2,800 |
4,000 (6,000) |
12,000 |
100 |
3 |
SNC150 |
3,900 |
4,000 (6,000) |
12,736 |
150 |
4 |
SNC200 |
4,500 |
4,000 (6,000) |
13,000 |
200 |
5 |
SNC500 |
7,000 |
4,000 (6,000) |
17,500 |
500 |
transportation
After-Sales Service
1.Spare parts will be delivered as you need.
2.Engineers will go to clients’ site for guiding the installation and test-running;
3.Warranty period: 12 months since the installation and commisioning;
4.Service team will follow every placed order regularly till warranty period finished
Success Case
So far as now, our concrete mixers are sold in Mongolia, Uzbekistan, Kazakhstan, Congo, Nigeria, Singapore, Ghana, Russia, Chile, Philippines, Kenya, Armenia,
Our stationary concrete batching plants are sold in Nigeria, Congo, Chile, Philippines, Mongolia, Russia, Kazakhstan, Uzbekistan, Russia, Nigeria, Armenia, etc..
Our mobile concrete batching plants are sold in Mongolia, Russia, Kazakhstan, Uzbekistan, Pakistan, Philippines, etc.
What's more, they have received praise with good quality and excellent after-sale service.
You are always welcomed to visit our company and workshop!!
Our Service
As a professional exporter, our target is to serve worldwide clients with high-quality products, great reliability, devoted responsibility, professional services and honorable credibility to meet customers' requirements in all aspects. Offer skillful after-sale-service specialists are available for all customers at 7/24 hours every week.
certification
Welcome you to our factory
Welcome you to visit our factory!
