Cement Silo
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
Lianchuang
Model Number:
50T 80T 100T 150T 200T
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Shandong, China
Brand Name
Lianchuang
Model Number
50T 80T 100T 150T 200T
Specifications
1.diameter:3140mm.2.discharge height:3.9m .
3.Thickness:3.4.5mm
Cement silo:
1. Cement bin is general used as supported product of concrete mixing station.
2. Cement bin is suitable for bulk cement and dry fly ash, featured by rain and dampness resistant, and easy to use, etc. Spec and size can be made according to clients different requirements.
3. Cement bin is cylinder and supporting structure. The superior part has dust removing device to avoid leakage of dust; and the inferior part is equipped with arch breaker to avoid powder caking and make discharging smooth, and bin level sensing device to master usage of material in the bin at any time.
4 Cement bin generally adopts bulk cement conveying truck to send powder in the bin by pneumatic conveying; according different structures of cement bin, there are two kinds of discharging: the first is the inferior part is connected with screw conveyer and screw conveyer send powders into powder measure; the second is to adopt pneumatic conveying (to special cement bin).
Technical index (just for reference)
Serial number |
Spec |
Diameter mm |
Leg height mm |
Total height mm |
Theoretical capacity t |
1 |
SNC60 |
2,800 |
4,0006,000 |
8,130 |
60 |
2 |
SNC100 |
2,800 |
4,0006,000 |
12,000 |
100 |
3 |
SNC150 |
3,900 |
4,000 (6,000) |
12,736 |
150 |
4 |
SNC200 |
4,500 |
4,000 (6,000) |
13,000 |
200 |
5 |
SNC500 |
7,000 |
4,000 (6,000) |
17,500 |
500 |
Sizes above can be changed according to the fact, also can be made according to clients different requirements.
Arch breaker electromagnetic valve AC220v or air control box Level detector LEF-1 (AC220v1A)
Vibrating motor: JZ-0.8(AC380 0.3Kw 0.8KN).
Concrete Batching plant of HZS40:
Welcome to your inquiry!
Welcome to visit our factory!
Alibrothers construction machinery is your best choice!
50 to
Customers around the world :
High quality !
We are selection of High-quality steel :

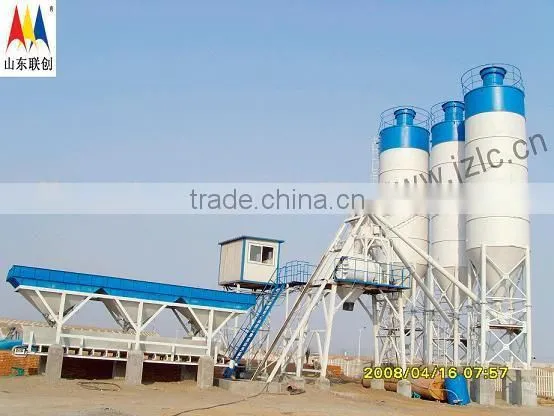

Use in Concret Batching plants:

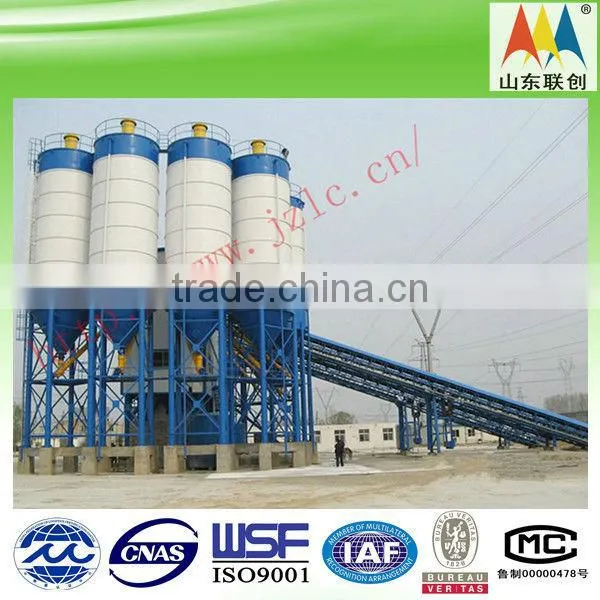

Concret Batching plants:

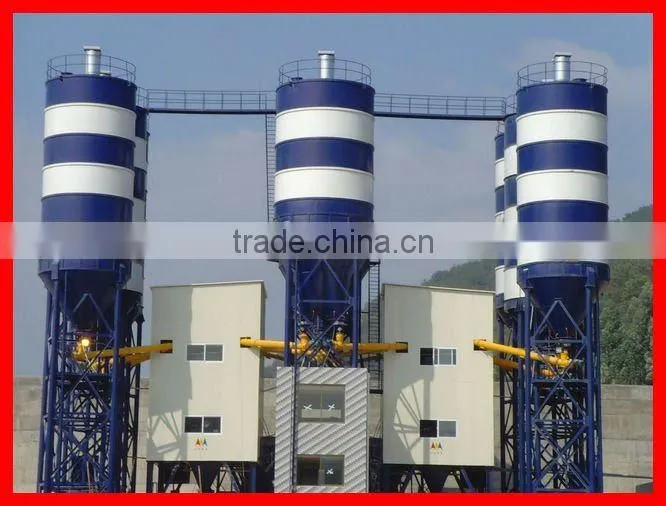

Cement silo:

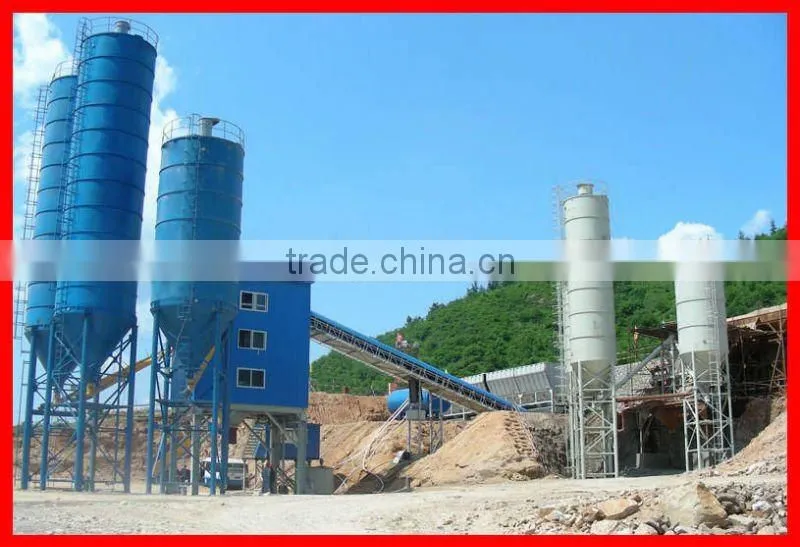

Around the world:
IF you are interesting, Please let me know:
Please contact me:
