The rotary kiln belongs to construction equipment. According to different material , the rotary kiln
canbe divided into :cement kiln, metallurgy kiln and limestone kiln
Application of rotary klin:
The cement kiln is mainly used for calcimine of cement clinker, there are dry and wet types.
The metallurgy kiln is used in metallurgy industry and ironworks. for lean iron ore, chromium ore and
ferronickel ore calcimine. Rotary kiln is used for calcimine of high aluminum vandal ochre in refractory
material industry; for calcimine of calotte and aluminum hydroxide in aluminum manufacturer; for
claiming of chrome sand ore and chrome power ore in chemical plant.
Lime kiln (active lime kiln) is used for calcimine of active lime and dolomite in ironworks and alloy works.
Rotary kiln cement clinker dry process and wet are the main equipment of production line, is high-grade cement clinker the necessary equipment production. Also widely used in metallurgical, chemical,
building, fire-proof material, environmental protection industry, etc.
Rotary transmission device divide into barrel, supporting device,block, kiln head, sealing device hoods
and burning device, kiln components.
Rotary kiln cylinder is heated rotary parts, using quality calm steel plate soldering and become,
barrel through the Lun Dai strut in 2-7 against sliding or rolling bearing support device, and amid a
or a few files on the device equipped with mechanical or support, to control the hydraulic block
wheel cylinder body axial channeling move; Transmission device through the barrel of the gear ring
that central cylinder body required speed turned; Due to the need of installation and maintenance,
larger kiln has made barrel at a low speed rotary auxiliary transmission device; To prevent cold air
into the dust and gas spill in cylinder, the incoming end (tail) and the material end (head) a reliable
preheater and kiln head sealing device. Cylinder Settings temperature measuring devices on the
hoods, kiln pressure measuring element with.
Technical parameters of rotary kiln:
01. for construction material
02.of metallurgy kiln
| Specification (m) | Shell Speed (r/min) | Obliquity (%) | Capacity (t/h) | Bearings form | Block form | Motor power (KW) |
| Ø3.2×26A | 0.71~1.58 | 3.5 | 40 | Rolling Bearing | Hydraulic pressure | 90 |
| Ø3.2×28A | 0.67~1.69 | 3.5 | 50 | Rolling Bearing | Hydraulic pressure | 110 |
| Ø3.5×29C | 0.6~1.7 | 4 | 70 | Rolling Bearing | Hydraulic pressure | 160 |
| Ø4×28E | 0.48~1.6 | 4 | 90 | Rolling Bearing | Hydraulic pressure | 160 |
| Ø4×32 | 0.3~1.48 | 4.25 | 120 | Rolling Bearing | Hydraulic pressure | 160 |
| Ø4.3×32 | 0.5~1.6 | 4 | ≥120 | Rolling Bearing | Hydraulic pressure | 190 |
| Ø4.5×30 | 0.46~1.45 | 4 | ≥110 | Rolling Bearing | Hydraulic pressure | 250 |
| Ø4.6×33 | 0.46~1.45 | 4 | 140 | Rolling Bearing | Hydraulic pressure | 315 |
03.of petroleum calcination coke kiln
| Specification (m) | Shell Speed (r/min) | Obliquity (%) | Capacity (t/h) | Bearings form | Block form | Motor power (KW) | Weight (t) |
| Ø2.2×45 | 0.504~1.51 | 3 | 5~6 | Rolling Bearing | mechanical | 55 | 12.58 |
| Ø2.84×55 | 0.1~2.5 | 3 | 8~10 | Rolling Bearing | mechanical | 75 | 248.35 |
| Ø2.84×58 | 0.25~2.5 | 3 | 8~10 | Rolling Bearing | mechanical | 75 | 262.4 |
| Ø3.6×62 | 1.6 | 3.5 | 12~15 | Rolling Bearing | mechanical | 110 | 410.768 |
04.of chemical kiln
| Specification (m) | Shell Speed (r/min) | Obliquity (%) | Bearings form | Block form | Motor power (KW) | Weight (t) |
| Ø3×26.7 | 0.6 | 3.5 | Rolling Bearing | mechanical | 160 | 257.8 |
| Ø3.6×42 | 0.6 | 3.5 | Rolling Bearing | mechanical | 220 | 568.7 |
Zhengzhou Toper company is the leading supplier if industrial equipemnt in China, and also the professonal exporter and service provider of mining machinery. we forcus on complete service for design to after sales and spare parts fast supply on such aspects: ore crush and grind equpments, large and medium scale mingin production line, cement production line of less than 5000t/d, ball mill for coal, full set of production equipments for oxide pellet, full set of production line for reduced iron, full set of production line for petroleum coke calcined, production line of crushing ans screening and various specification desulfuration, power making system, etc.

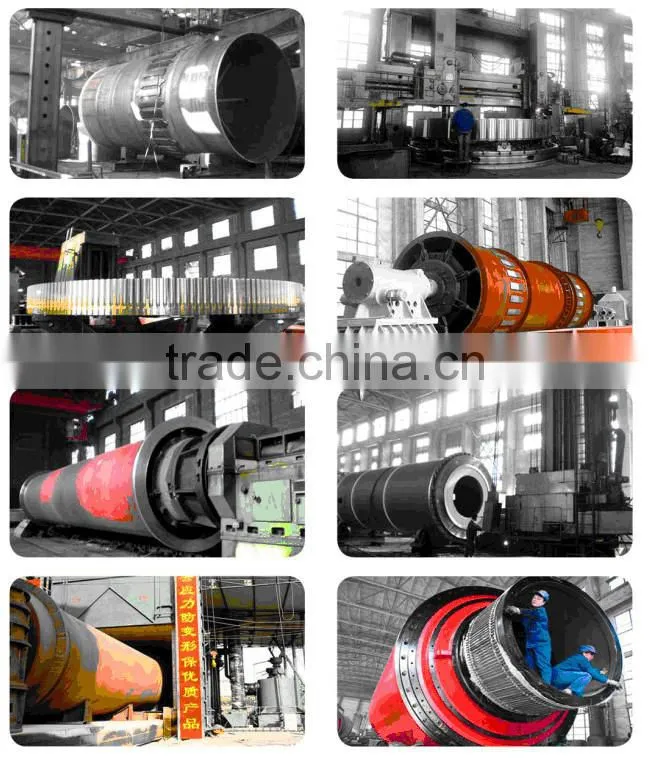

Factory capacity.

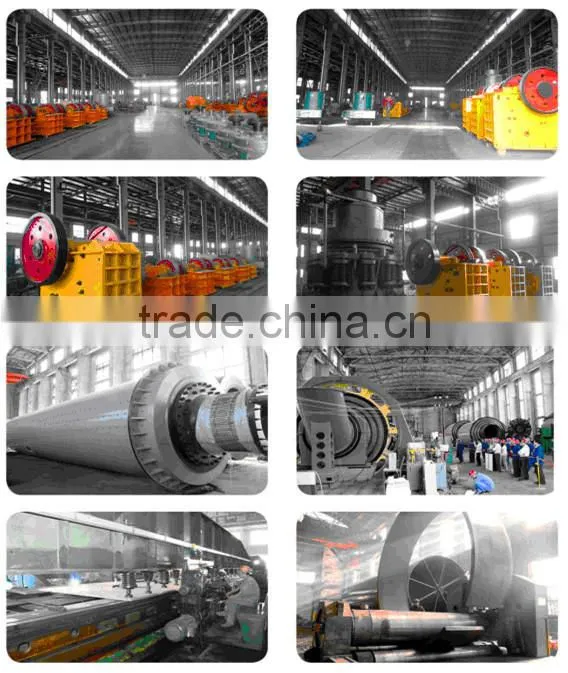

Image of factory

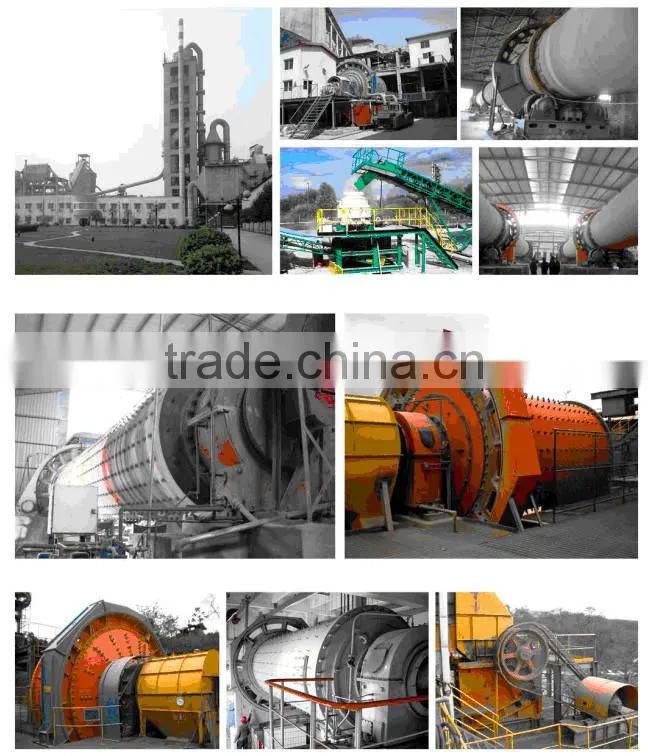

Project case:
All of our products:
1. Grinding mill: Rod mill, Lttice type ball mill, Overflow type ball mill, Low speed mill for coal grinding, Air-swept coal mill, Coal slurry mill, Vertical mill, Air-swept drying raw material mill, Tube mill, Swing mill.
2. Rotary kiln: Rotary kiln, Rotary kiln for construction material
3. Rotary dryer
4. Roller press machine
5. Crusher: Roller crusher, Jaw crusher, Cone crusher, High efficiency cone crusher, Impact crusher, Single-stage hammer crusher, Hammer crusher
6. Vacuum crusher
7. Apron feeder, vibration feeder, vibration screen, belt conveyor, bucket elevator, magnetic separator, flotation machine, spiral classifier and so on.
