Introduction:

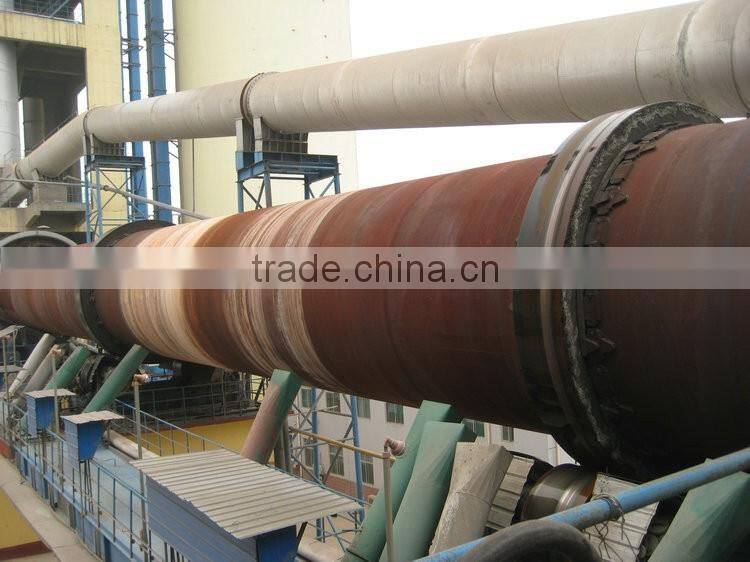

Rotary kiln is composed of drum, driving unit, support unit, end seal unit, end shield and fuel unit. The shell fabricated from high-quality steel plate is supported on the supporting device of sliding bearing or rolling bearing. Mechanical or hydraulic thrust roller is installed on the support unit to control axial moving. The driving unit makes the drum rotate through the girth gear in the middle of the drum. To meet the need of installation and maintenance, the bigger kiln have auxiliary driving unit. The ends of kiln are provided with sealing unit to prevent cool air into the kiln and fuel dust out of kiln.
Application:
Rotary kiln can be used in chemical, construction, cement, environmental protection, metallurgy, ceramics, lime, refractories, metakaolin, titanium dioxide, alumina, vermiculite and many other industries
Cement Rotary Kiln:
Cement kilns are used for the pyroprocessing stage of manufacture of Portland and other types of hydraulic cement, in which calcium carbonate reacts with silica-bearing minerals to form a mixture of calcium silicates. Over a billion tonnes of cement are made per year, and cement kilns are the heart of this production process: their capacity usually defines the capacity of the cement plant. As the main energy-consuming and greenhouse-gas–emitting stage of cement manufacture.
Lime Rotary Kiln:
A lime kiln is used to produce quicklime through the calcination of limestone (calcium carbonate). The chemical equation for this reaction is
CaCO3 + heat → CaO + CO2
This reaction takes place at 900 °C (at which temperature the partial pressure of CO2 is 1 atmosphere), but a temperature around 1000 °C (at which temperature the partial pressure of CO2 is 3.8 atmospheres[1]) is usually used to make the reaction proceed quickly.[2] Excessive temperature is avoided because it produces unreactive, "dead-burned" lime.
Technical parameters
No. |
Model |
Specification |
Power |
Capacity |
Weight |
1 |
XLJY1500 |
Φ1500X7500 |
5.5 |
1 |
|
2 |
XLJY2000 |
Φ2000X8000 |
7.5 |
2 |
|
3 |
XLJY2500 |
Φ2500X9000 |
11 |
3 |
|
4 |
XLJY3000 |
Φ3000X10000 |
11 |
6 |
|
5 |
XLJY3500 |
Φ3500X12000 |
22 |
10 |
|
6 |
XLJY4000 |
Φ4000X15000 |
22 |
20 |
|
Our two production base of mining machinery has about 700 sets of various production equipments. Annual production capacity is 40,000 tons of mechanical products. All these make us have the ability to produce larger and special larger equipments. Our main products including: ball mill, rotary kiln, jaw crusher, cone crusher, etc. and all kinds of spare parts.
Our manufacturing base of filter equipment mainly produce full automatic or semi-automatic membrane filter press, recessed filter press, belt filter press, centrifuge, etc. All these products are widely used in mining, metallurgy, petroleum, chemical, medicine, textile, printing and dyeing, paper making, food, alcohol, inorganic salt, coal washing, and waste water processing industry.
Our products has passed ISO9001 International Quality Management System Certification and is exported to America, Canada, Chile, Bolivia, Indonesia, Malaysia, Israel, Iran, Egypt, Turkey, Romania, Sweden, Finland, etc. about more than 50 countries and area. We have won good reputation depends on our best qualified products and after-sales service. Warmly welcome new and old friends all over the world to come our company for good cooperation with each other!
