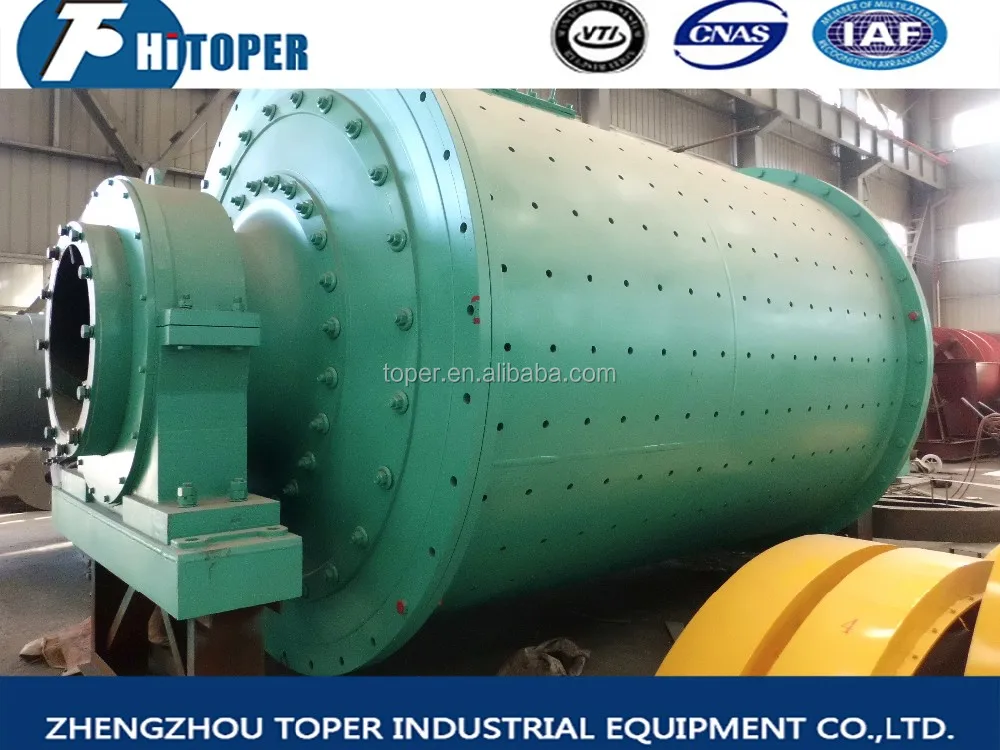

Ball Mill.
Ball grinder mill is a horizontal rotating device transmittedby outside gear. Material is transferred to grinding chamber through the quillshaft uniformly. There are ladder liner and ripple liner with differentspecifications of steel balls in the chamber. The centrifugal force caused byrotation of barrel brings the steel balls to a certain height to impact andgrind the material. The ground material is discharged through the discharging board, thus the grinding process is finished.
The ball mill is made up of feeding part, discharging part, gyre part, transmission part,(decelerator, small transmission gear, generator, electrical control) and soon. The hollow axis adopts the cast steel and the lining can replace, therotating big gear processes in the way of casting rolling gear. The cylinder iswearable well and bears wearable lining board. This machine runs steadily and works reliably.
A Ball Mill grinds material by rotating a cylinder with steelgrinding balls, causing the balls to fall back into the cylinder and onto thematerial to be ground. The rotation is usually between 4 to 20 revolutions perminute, depending upon the diameter of the mill. The larger the diameter, theslower the rotation. If the peripheral speed of the mill is too great, itbegins to act like a centrifuge and the balls do not fall back, but stay on theperimeter of the mill. The point where the mill becomes a centrifuge is called the "Critical Speed", and ball mills usually operate at 65% to 75% of the critical speed.
1) Ball mill is an efficient tool for grinding many materials into fine powder.
2) The ball mill is used to grind many kinds of mine and other materials, or to select the mine
3) Ball mill is widely used in building material, and chemical industry.
4) Our ball mills have been used to grind glass, powder food products, create custom varnishes, make ceramic glaze, powder various chemicals.
5) There are two ways of grinding: the dry way and the wet way.
6) Ball mill can be divided into tabular type and flowing type according to differentexpelling mine
7) To use the ball mill, the material to be ground is loaded into the neoprene barrel that contains grinding media.
8) As the barrel rotates, the material is crushed between the individual pieces of grinding media that mix and crush the product into fine powder over a period of several hours.
9) The longer the ball mill runs, the finer the powder will be.
10) Ultimate particle size depends entirely on how hard the material you're grinding is, and the time how long the ball mill runs.

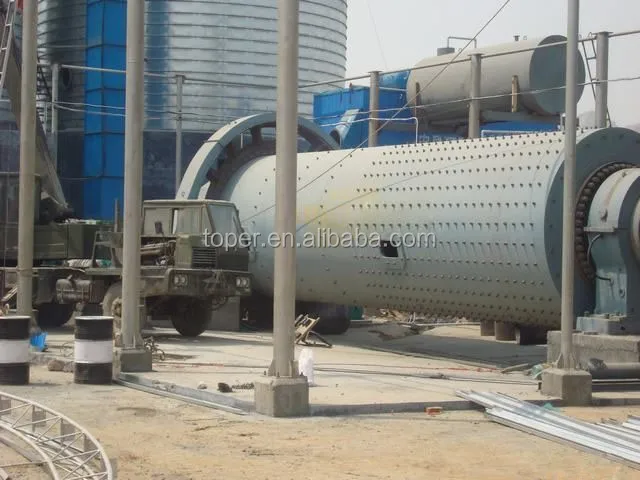

Ball mill is a key equipment for regrinding. Itis widely used for the cement, the silicate product, new type buildingmaterial, fire-proof material, chemical fertilizer, black and non-ferrousmetal, glass, ceramics and etc. Our ball mill can grind ore or other materialsthat can be grinded either by wet process or by dry process.
Pre-Sales Service
1.To provide technical advisory services,for free testing and provide 1:1 technical parameter for the customers.
2.Provide technical data,equipment floor diagram,space diagram, installation detailed drawing and electric system drawing,etc.
After-Sales Service
1.We shall offer equipment schedule,equipment layout,foundation drawing etc.
2.Provide installation guide,commissioning and technical training,assure production operation on schedule and design requirement.
Contact infos,
Company, Henan Zhongyueda Machinery Co., Ltd
Add: No. 99, Daxue Road, Zhengzhou city, Henan, China
Tel: 0086-371-8608-1678
Fax: 0086-371-6372-0313
WhatsAPP: +8618637361678
