Multi Gravity Separator for Azuki Bean

Multi Gravity Separator for Azuki Bean photo-1

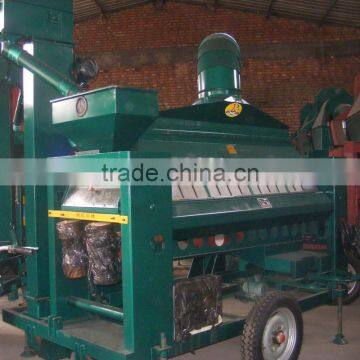

Multi Gravity Separator for Azuki Bean photo-2

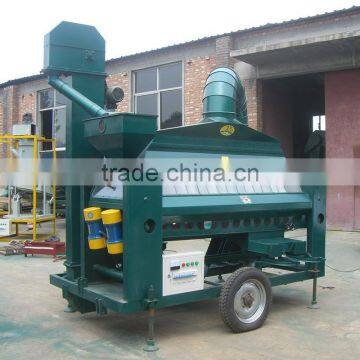

Multi Gravity Separator for Azuki Bean photo-3

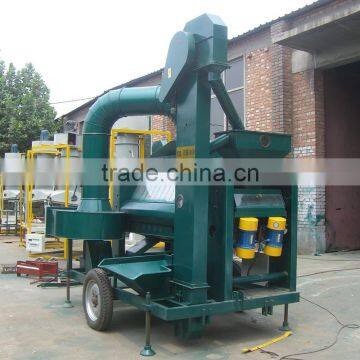

Multi Gravity Separator for Azuki Bean photo-4

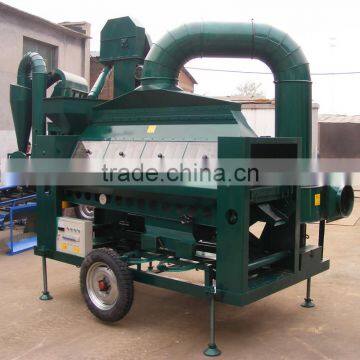

Multi Gravity Separator for Azuki Bean photo-5

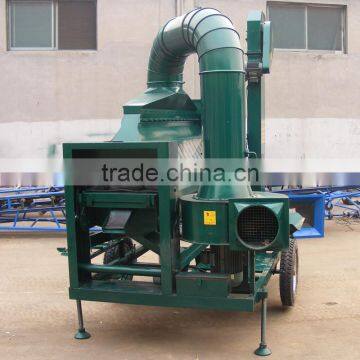

Multi Gravity Separator for Azuki Bean photo-6
US$ 3,900 - 4,500 MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
gravity separator, Air suction type
Use:
multi gravity separator for azuki bean
Certification:
ISO9001
Payment & Shipping
Payment Methods:
Port of Shipment:
Xingang
Delivery Detail:
Delivery time depends on order quantity.
Type gravity separator, Air suction type
Use multi gravity separator for azuki bean
Certification ISO9001
Place of Origin Hebei, China
Brand Name SYNMEC gravity separator
Model Number 5XZC-5B
Condition New
After-sales Service Provided Engineers available to service machinery overseas

multi gravity separator for azuki bean

Product Description

Introduction of 5XZ-5B pepper seed gravity separator

5XZ-5B pepper seed gravity separator is the suction type used for separating grain and seed which have same shape but different in gravity, finally obtain the best seed and grain which will be used for sowing.



The 5XZ-5B pepper seed gravity separator has upgraded, which has two vibratory motors. The pepper seed gravity separator works without rubber vibration absorbers. It proves to be time-saving, more efficient and durable.



Application of 5XZ-5B pepper seed gravity separator

The pepper seed gravity separator can efficiently remove moldy kernel, immature shriveled, insect damaged seed or broken seed to ensure maximum quality of the final product. The pepper seed gravity separator can be used to separate most kinds of seed and grains, such as coffee bean, wheat, barely, maize, corn, sunflower seed, etc.



Working Principle of 5XZ-5B pepper seed gravity separator

By air aspiration and sieve oscillation, the seed is fluidized and stratified. Heavy seed (good seed) sink into bottom layer of material on the sieve while the bad seed (light seed) suspends to the top layer. After stratified, materials go forward to the discharging part. Bottom layer good seed fall through the sieve discharge from outlets. The light seed with bad quality will be discharged directly. Mixture quality seed through sieves and return back to feeding hopper via vibrating material reflow gear.

Specification of grain gravity separator

Model

No.

Capacity

(T/H)

Power

(kw)

Weight

(kg)

Sieve Size

Dimensions

(mm)

Remarks
5XZ-3B  3  4.25  1100  2000X325  4000X18000X2900  Suction Type

 5XZ-5B

 5  9  1550  2000X625  4000X1900X3100  Suction Type
 5XZ-3A  3  5  1200  2000X325  4000X1800X2750  Suction Type with Dust Cyclone Separator
 5XZ-5A  5  9.62  1600  2000X475  4000X1900X3100   Suction Type with Dust Cyclone Separator
 5XZ-6  5  8.95  2000  3360X1420  3440X1630X1900  Blow Type



multi gravity separator for azuki bean



multi gravity separator for azuki bean



multi gravity separator for azuki bean



multi gravity separator for azuki bean



multi gravity separator for azuki bean



multi gravity separator for azuki bean



You may would like other seed grain processing machine

(Click the picture to view more details)

Seed Coating Machine (5BY-5A)

multi gravity separator for azuki bean



Magnetic Separator (5XCX-5)

multi gravity separator for azuki bean



Destoner (5XQS-5)

multi gravity separator for azuki bean



Seed Cleaner & Grader (5XZF-7.5F)

multi gravity separator for azuki bean

Packaging & Shipping

multi gravity separator for azuki bean

Our Services

multi gravity separator for azuki bean

Pre-Sale

Your inquiry will be replied by our well-trained & experienced staff within 12 hours.

Shipping

By sea with less container load or full container load

We will choose or advise the most convenient way for you.

Payment

We accept T/T, Western Union, MoneyGram, Paypal, L/C(above 30K USD).

30% in advance, balance should be paid before shipment.

Feedback

We sincerely invite you to leave positive feedback to us.

If you have any questions, please feel free to contact us at any time.

We will reply as soon as possible.

After Sale

Any questions of the production, please let me know directly by email or phone.

We can deal with these issues on time, promise give you happy answers.

We focused on the after sale.

Welcome send any comments to us.

Company Information

We are an international trading company also a professional manufacturer for grain cleaning and seed processing machinery. Our manufactory’s name is Hebei RUIXUE Grain Selecting Machinery Limit, SYNMEC as an international brand of‘RUIXUE grain selecting machinery’, also it is an independent corporate entity ‘SYNMEC International trading Ltd.’, so we can provide professional machinery making and professional international trading service.

multi gravity separator for azuki bean

multi gravity separator for azuki bean

FAQ
1.Q Are you the factory?
   A Yes, We are a professional grain cleaning machine manufacturers.
2.Q Can you ship to my country?
   A Yes, no problem.
       We can ship your cargo to worldwide.
3.Q How long does the cargo to delivery to my address?
   A It takes about 25-35 workdays to arrive your address by sea.
4.Q Do you help to install the machines?
   A Yes, no problem.
       we will send our senior engineers to take charge the installation, test running, and training local operators.
