multi seeds gravity separator
Introduction of multi seeds gravity separator :
Multi seeds gravity separator is the blowing type bean separator, used for separating grain and seed which have same shape but different in gravity, finally obtain the best seed which will be used for sowing.
Application of multi seeds gravity separator :
Multi seeds gravity separator can efficiently remove moldy kernel, immature shriveled, insect damaged seed or broken seed to ensure maximum quality of the final product. The bean separator can be used to separate all kinds of seed and grains, such as coffee bean, cocoa bean, peanuts, corn, peas, beans ,rice, wheat, sesame etc.
The bean separator also has wide applications, from heavy industrial materials like glass, stone, metal and sand, to lighter agricultural seeds beans and nuts.
Working Principle of multi seeds gravity separator :
Multi seeds gravity separator works on a fluidized bed principle. Materials is fed on oscillating sieve deck. By the pressure of air & deck oscillation, material is fluidized and stratified. Heavy fraction sink into the deck while light fraction is suspended in fluidized state. Deck oscillation causing heavy and light fraction travel in separated path and collected separately.
Specification of multi seeds gravity separator:
Model No. |
Capacity(T/H) |
Power(KW) |
Weight(KG) |
Sieve Size |
Dimensions(MM) |
Remarks |
5XZ-3B |
3 |
4.25 |
1100 |
2000×325 |
4000×1800×2900 |
Suction Type |
5XZ-5B |
5 |
9 |
1550 |
2000×625 |
4000×2050×3100 |
Suction Type |
|
5XZ-3A |
3 |
5 |
1200 |
2000×325 |
4000×1800×2750 |
Suction Type with Dust Cylone Separator |
|
5XZ-5A |
5 |
9.75 |
1600 |
2000×475 |
4000×1900×3100 |
Suction Type with Dust Cylone Separator |
5XZ-3 |
3 |
7.45 |
1300 |
2250x1150 |
2600x1500x2100 |
Blow Type |
5XZ-6 |
5 |
8.95 |
2000 |
3360×1420 |
3900×1700×1750 |
Blow Type |
5XZ-10 |
10 |
15 |
2500 |
3900x1550 |
4300x1960x2500 |
Blow Type |

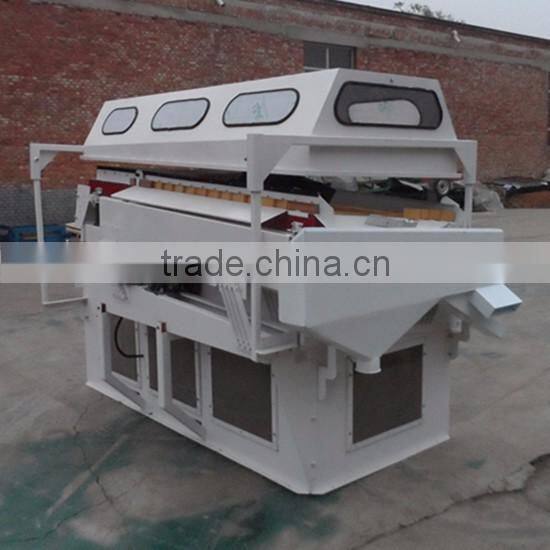

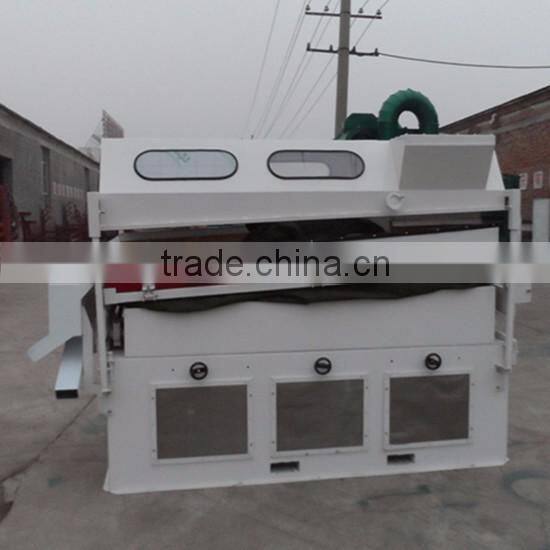

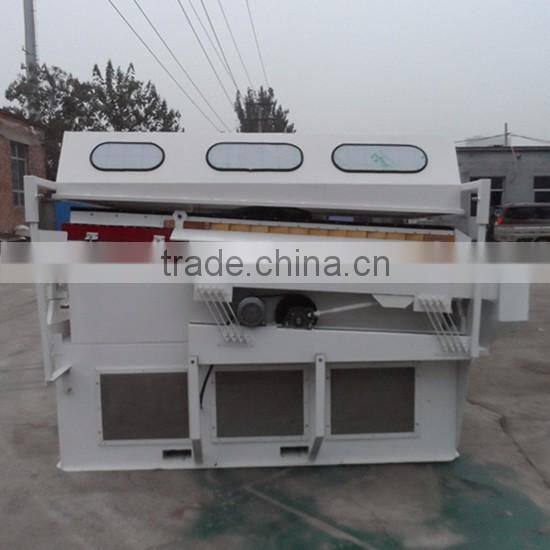

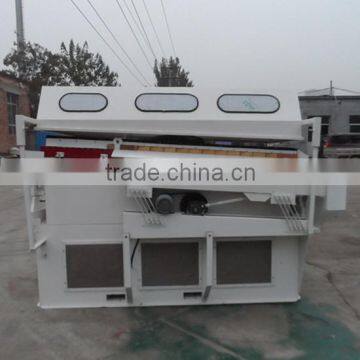

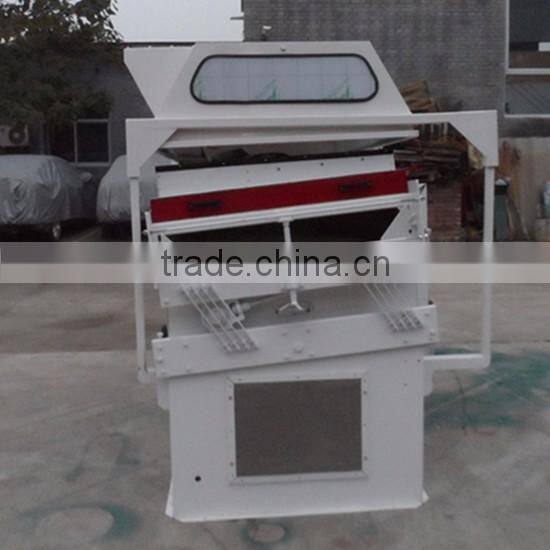

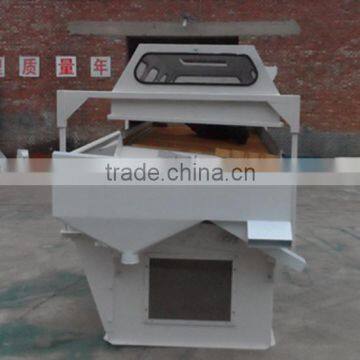

Photos of multi seeds gravity separator:
LCL goods are bulb film wraped then packed in plywood package.
FCL goods are bulb film wraped then packed and fixed in containers.
Seed cleaner & grader is used to remove dust, light impurity, big and small impurity.
WELCOME TO VISIT OUR FACTORY!
2.Q Can you offer machine working video?
A Yes, no problem. Please send me inquiry or contact me by joyce at ( or j at ). I will send machine video to you.
A Of course. Up to now, we sold machine over 100 countries. We load containers every week. Express delivery, air shipping, sea shipping, are all we farmiliar transportation methods.
4.Q What about after sales service? Do you help to install the machines?
A We offer user manual book, operation guidance DVD. We also can send engineers offer on site installation, test running, and training. Clients` satisfiaction is our aim.
