American Quality Gravity Separator/ Gravity Table
Application of 5XZ-6 American Quality Gravity Separator/ Gravity Table:
The American Quality Gravity Separator/ Gravity Table can efficiently remove moldy kernel, immature shriveled, insect damaged seed or broken seed to ensure maximum quality of the final product. The American Quality Gravity Separator/ Gravity Table can be used to separate all kinds of seed and grains, such as coffee bean, cocoa bean, peanuts, corn, peas, beans ,rice, wheat, sesame etc.
The American Quality Gravity Separator/ Gravity Table also has wide applications, from heavy industrial materials like glass, stone, metal and sand, to lighter agricultural seeds beans and nuts.
Working Principle of 5XZ-6 American Quality Gravity Separator/ Gravity Table:
The American Quality Gravity Separator/ Gravity Table works on a fluidized bed principle. Materials is fed on oscillating sieve deck. By the pressure of air & deck oscillation, material is fluidized and stratified. Heavy fraction sink into the deck while light fraction is suspended in fluidized state. Deck oscillation causing heavy and light fraction travel in separated path and collected separately.
Specification of 5XZ-6 American Quality Gravity Separator/ Gravity Table:
Model | 5XZ-3 | 5XZ-6 | 5XZ-10 |
Capacity(Count by wheat) | 3000kg/h | 5000kg/h | 10000kg/h |
Sieve Table Dimension | 2250×1150mm | 3000×1200mm | 3900×1550mm |
Total Power | 7.45kw | 8.95kw | 15kw |
Motor for build-in Air Blower | 4.5kw | 6kw | 9.9kw |
Motor for vibration | 2.2kw | 2.2kw | 4kw |
Motor for Good Grain Release | 0.75kw | 0.75kw | 1.1kw |
Lateral angle of inclination | 3°~6° | 3°~6° | 3°~6° |
Longitudinal angle of inclination | 0~6° | 0~6° | 0~6° |
Amplitude | 7mm | 7mm | 7mm |
Dimension (L*W*H) | 2600×1500×2100 mm | 3440×1630×1900 mm | 4300×1960×2500 mm |
Weight | 1300kg | 2000kg | 2500kg |
Remarks | 3 mute air blower | 4 mute air blower | 6 mute air blower |

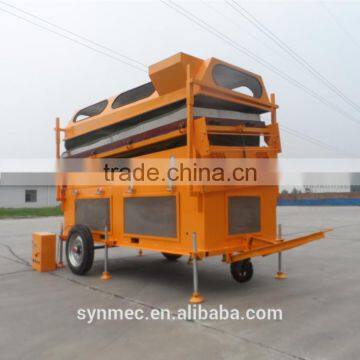

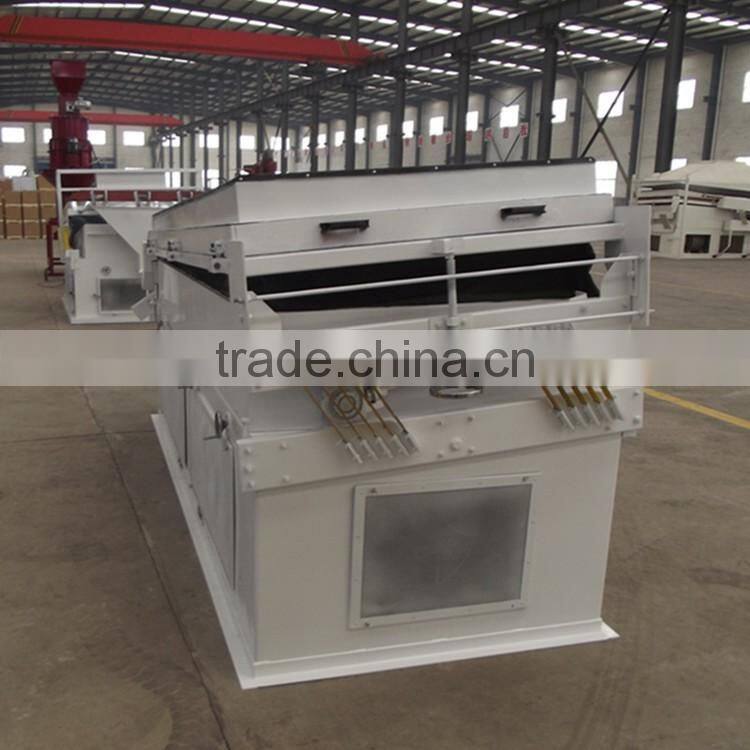

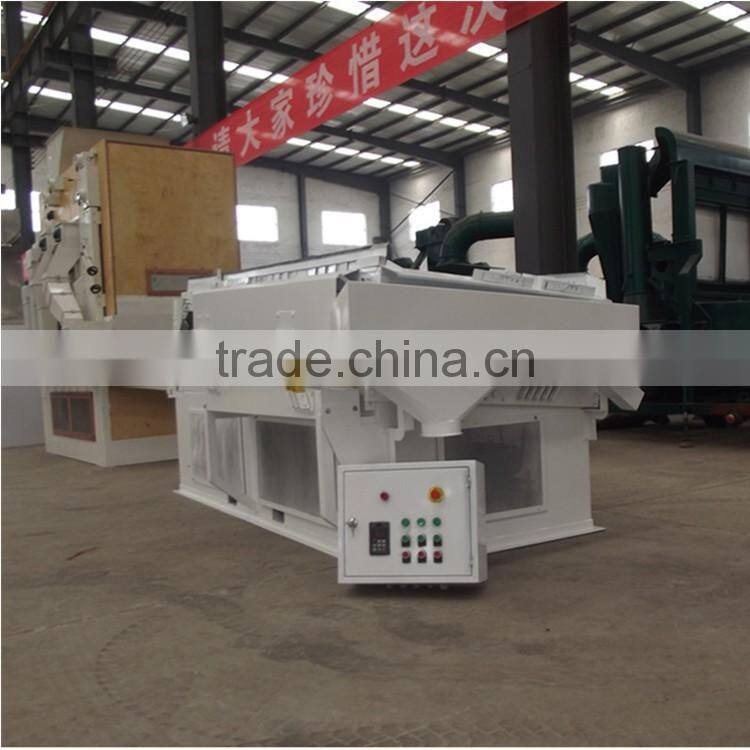

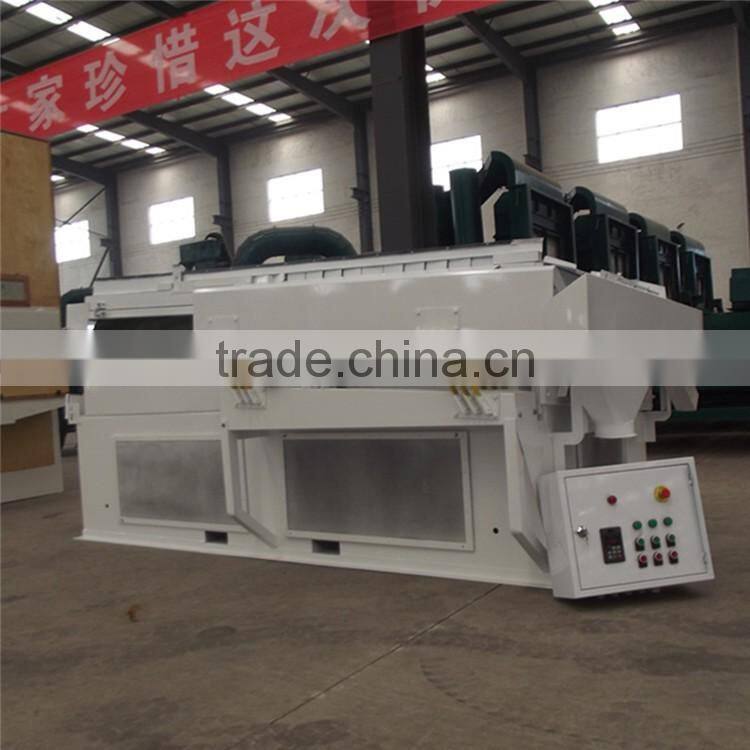

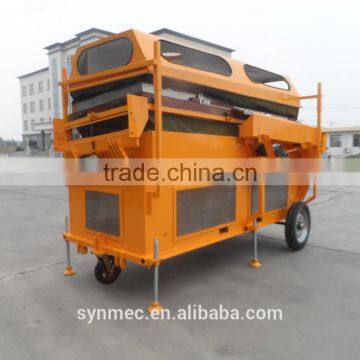

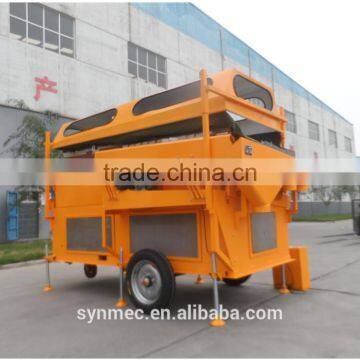

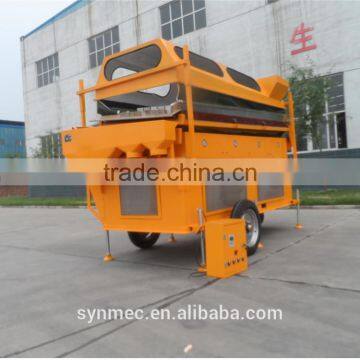

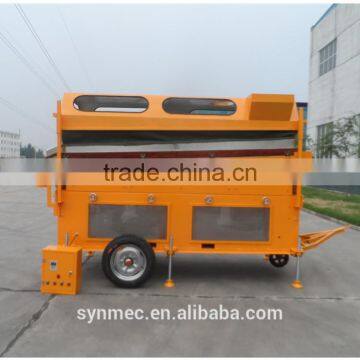

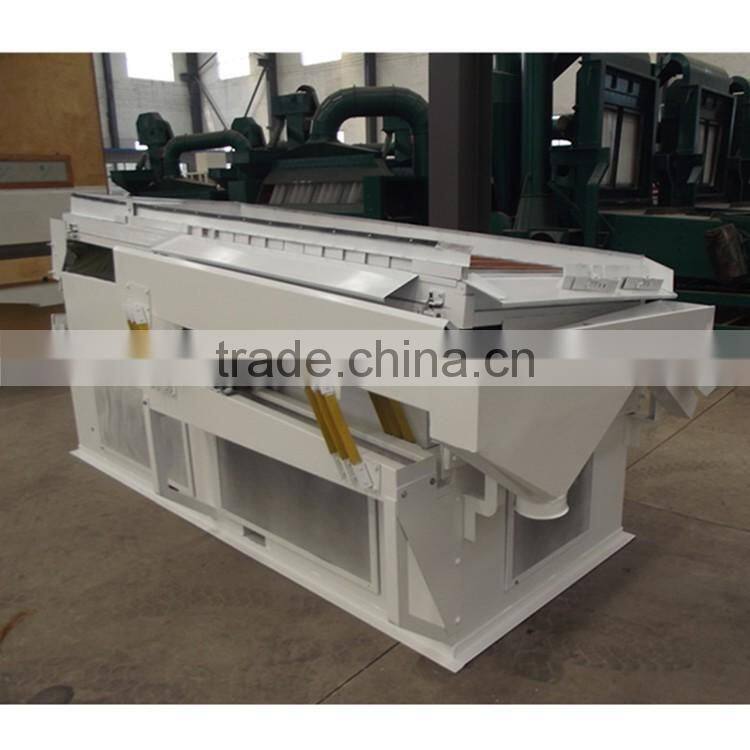

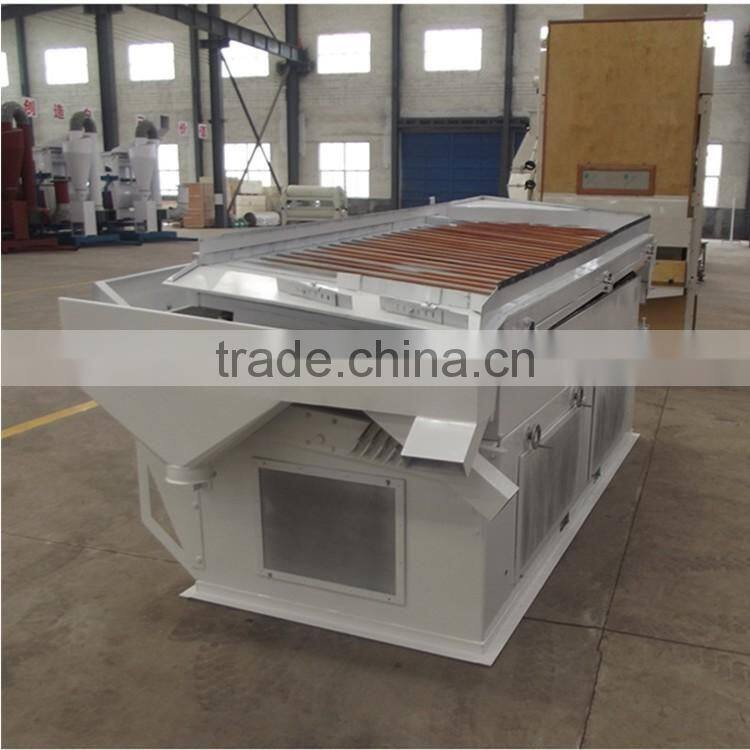

Photos of 5XZ-6 American Quality Gravity Separator/ Gravity Table:

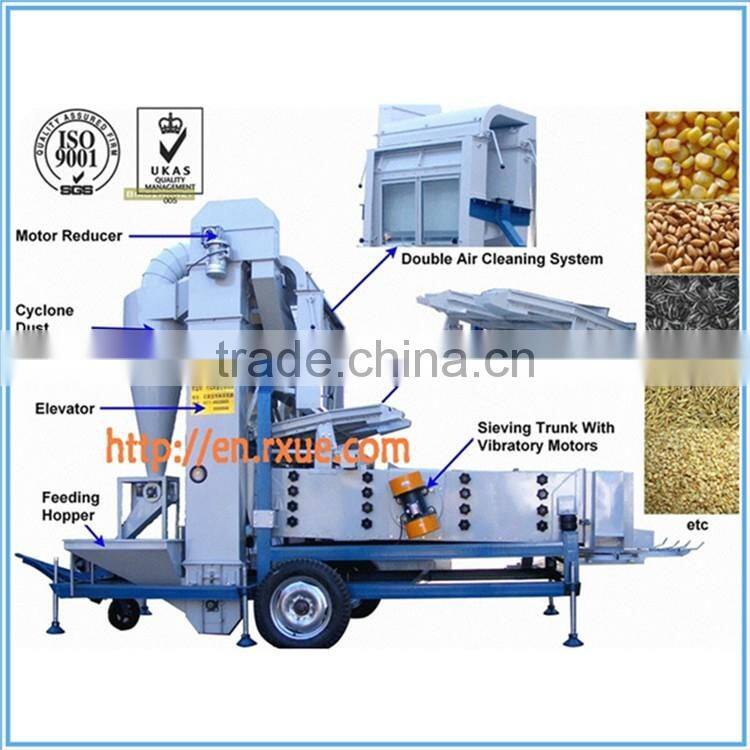

The following is other models you may like:

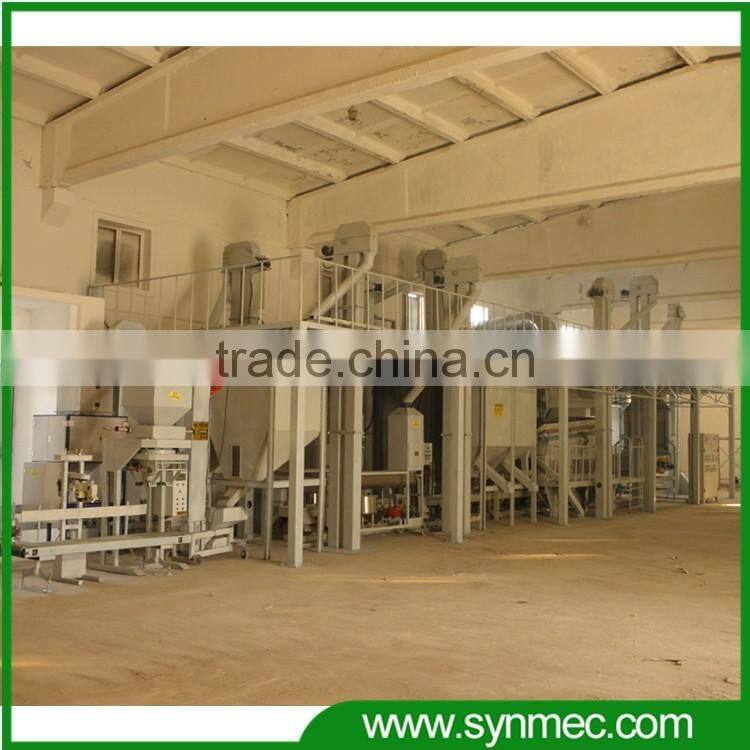

If you need seed cleaning and processing plant, please click the following picture for details.
1.Q Are you the factory?
A Yes,We are a professional grain seed processing machines factory for 15 years old.
2.Q Do you accept small order?
A Yes,We accept small order and trial order.
3.Q Do you accept L/C?
A Yes,We can accept T/T and L/C.
4.Q Can you ship to my country?
A Yes, no problem .
Please let me know your destination port name and I will check the sea freight for you.
5.Q How long does the new machine take to delivery to my address?
A For single machine, we can use 10-15 days to manufacture machine.
For processing plant, we can use 30-40 days to finish, We also need one day to test.
We will book a fast ship for you.
6.Q I want to more machines , how can I get latest catalogue for reference?
A You can contact us by Trade Manager or Email ,
We will give you our latest catalogue according to your information.
