Grain Paddy Seed Rice Destoner/ Sand and Stone Removing Machine
Introduction of TQSF-60 Grain Paddy Seed Rice Destoner/ Sand and Stone Removing Machine:
TQSF Grain Paddy Seed Rice Destoner/ Sand and Stone Removing Machine is applied for efficient separation of stones and pebbles, glass, and other high-density impurities from the stream of grain, according to the difference in specific weight.
Features of TQSF-60 Grain Paddy Seed Rice Destoner/ Sand and Stone Removing Machine:

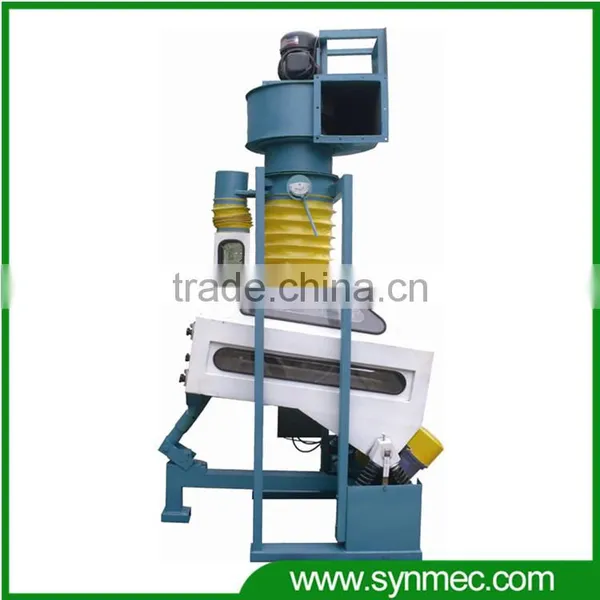

TQSF-60 Grain Paddy Seed Rice Destoner/ Sand and Stone Removing Machine is suction type destoner, but it has two sieve layers, the first sieve layer to remove out some large impurities such as straws, and the second sieve layer is used for remove out stones.
Working Principle of Grain Paddy Seed Rice Destoner/ Sand and Stone Removing Machine:
The sieve box normally equipped with two-layer sieves, and its vibration depend on two vibratory motors.

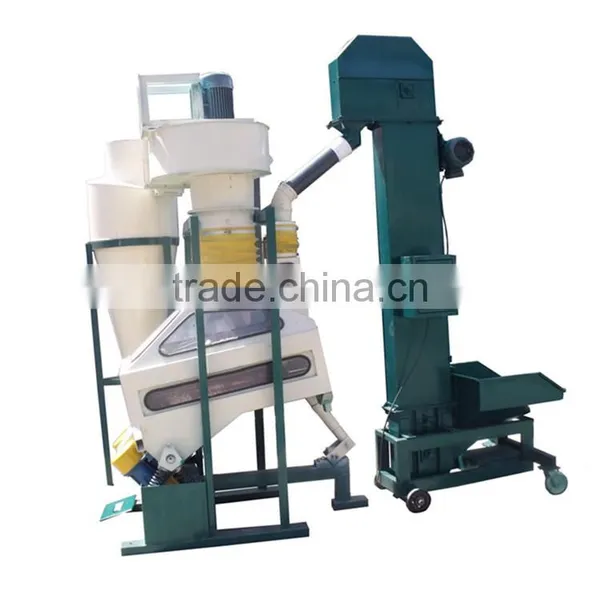

The grain feed in with an elevator, and then the grain stream fluided by the vibration of the screen and air suction from bottom to top. The light particles collect at the top, and the heavy ones including the stones at the bottom.
The lower layer with the heavy particles flows upward and transport to the stone outlet. The stone-free grain streams on the two screens float on cushions of air, flowing slowly toward the grain outlet.
To achieve the optimum degree of separation, the inclination of the screens, the air volume and final separation can be adjusted accordingly.
Model |
Capacity (tone/hour) |
Power (kw) |
Weight (kg) |
Dimension (L×W×H)mm |
Remarks |
5XQS-3 |
3 |
4.75 |
600 |
2200×1200×1600 |
Blowing type |
5XQS-5 |
5 |
7 |
700 |
2500×1660×1600 |
Blowing type |
QSX-85 |
5 |
3.55 |
400 |
1300×1500×3200 |
Suction type |
TQSF-60 |
5 |
3.5 |
320 |
1450×876×1800 |
Suction type |
TQSF-80 |
7.5 |
3.5 |
400 |
1450×1046×1800 |
Suction type |
TQSF-100 |
10 |
3.5 |
480 |
1450×1246×1920 |
Suction type |
1.Q Are you the factory?
A Yes,We are a professional grain seed processing machines factory for 15 years old.
2.Q Do you accept small order?
A Yes,We accept small order and trial order.
3.Q Do you accept L/C?
A Yes,We can accept T/T and L/C.
4.Q Can you ship to my country?
A Yes, no problem .
Please let me know your destination port name and I will check the sea freight for you.
5.Q How long does the new machine take to delivery to my address?
A For single machine, we can use 10-15 days to manufacture machine.
For processing plant, we can use 30-40 days to finish, We also need one day to test.
We will book a fast ship for you.
6.Q I want to more machines , how can I get latest catalogue for reference?
A You can contact us by Trade Manager or Email ,
We will give you our latest catalogue according to your information.
