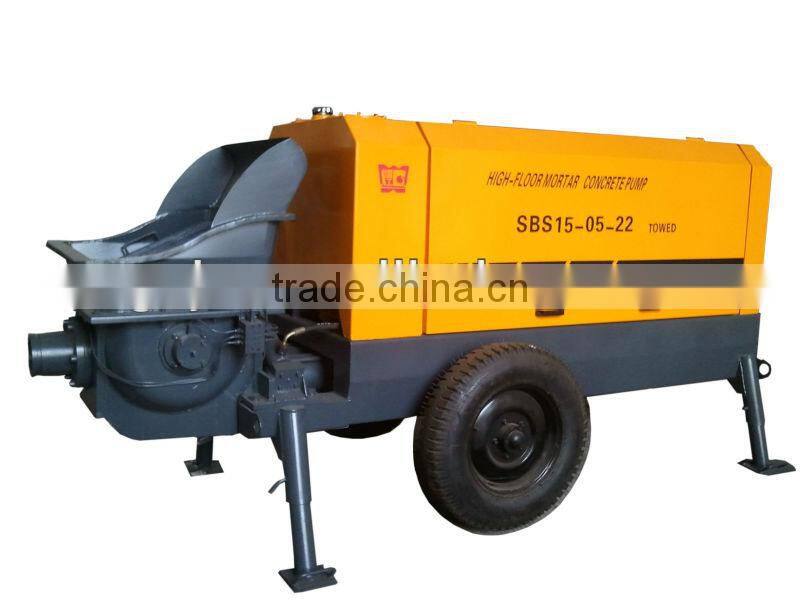

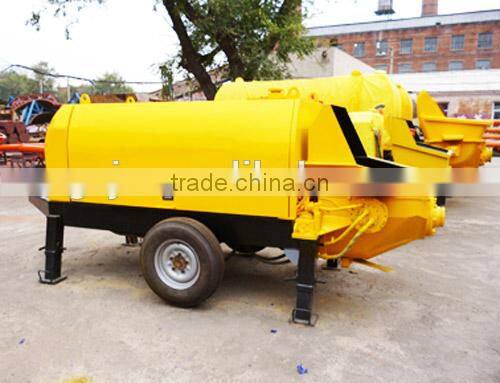

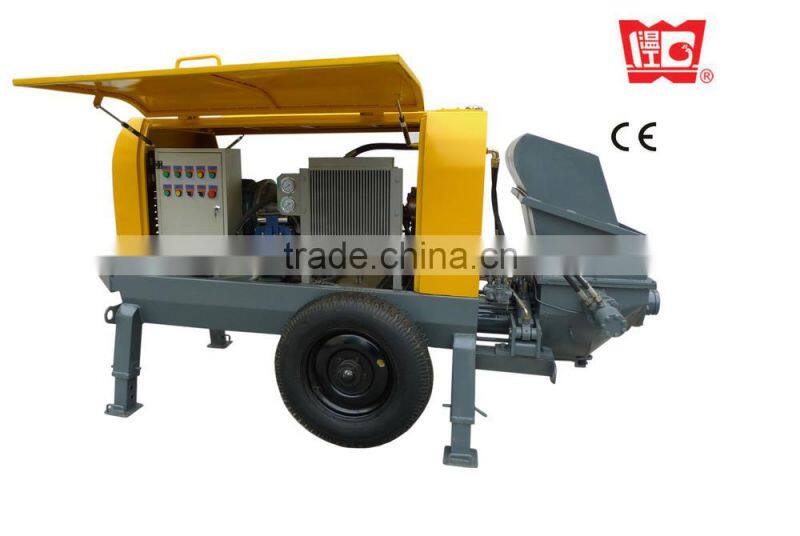

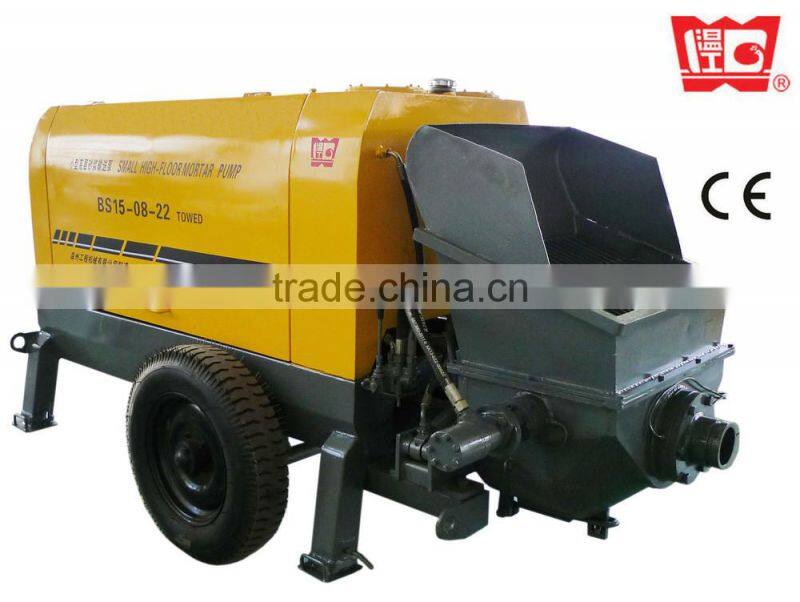

20m3/h concrete pump
Application

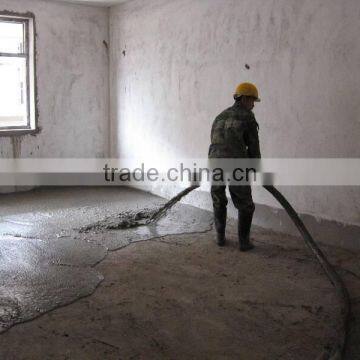

Deliver mortar of ground, warm layer or other backfill or small aggregate concrete
Features
1.Power system use Chinese well-known diesel engine
2.Use three-pump system, hydraulic circuit interference from each other, the system is stable
3.With anti-pump feature, enable it to rule out the blocking of the malfunction at once, and can be to stop in a short for waiting material.
4.Use advanced S-control valve to automatically compensate wear gap with good sealing performance
5.Adopt glasses plate with wear-resistant alloy and cutting ring for extending life
6.The long-stroke cylinder can extend service life of material cylinder and piston
7.Optimal design of the hopper makes suction better performance and higher working efficiency
8.Equipped with a hydraulic driven pressure washer, cleaning fast and less water.
9.Automatic lubrication system ensures the machine lubrication in effective operation
10.Human design for product makes the operation more convenient and simpler to maintain.
Main technical parameters
| Items | Units | BS30-09-37 |
| Theoretical maximum output | m3/h | 20-30 |
| Maximum pumping pressure | MPa | 9 |
| Theoretical maximum vertical delivery distance | m | 100 |
| Theoretical maximum level delivery distance | m | 300 |
| Maximum aggregate sizes | mm | 20 |
| Land-slide degree | cm | 12--23 |
| Delivery hose inside diameter | mm | 100A/80A |
| Qty of delivery cylinder | pc | 2 |
| Concrete cylinder inside diameter × stroke | mm | Φ140×800 |
| Electric motor power | kw | 37 |
| Dimensions (L × W × H) | mm | 3020×1370×1400 |
| Net Weight | kg | 2000 |
1. The hydraulic system in concrete pump
Main components parts pictures shown as below:

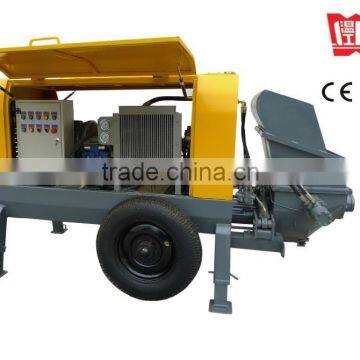

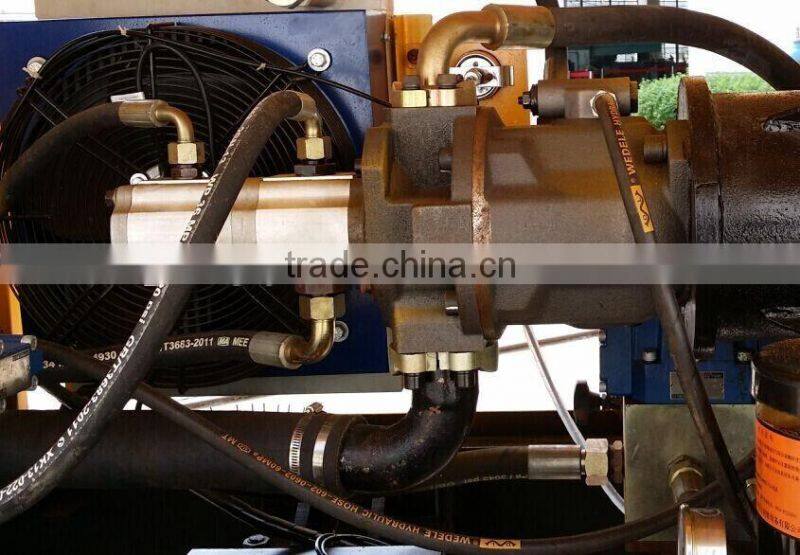

a. Hydraulic pump and Cooling System

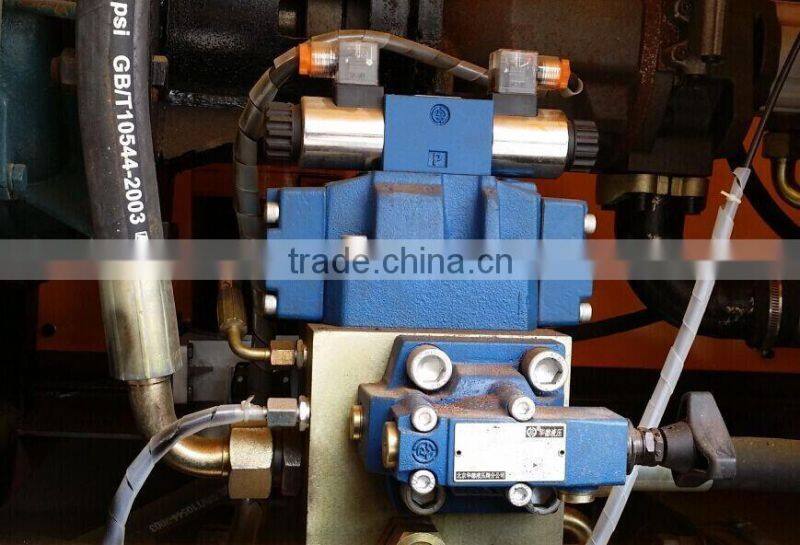

b. Hydraulic directional valve system

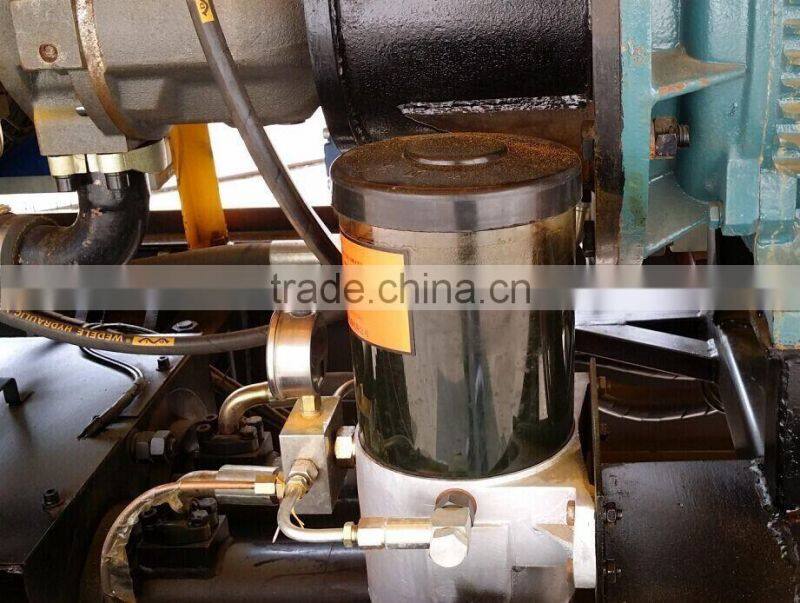

C. Hydraulic lubrication system
2. Our concrete pump workshop, we can produce 300-500sets per month and export to different countries in the world.

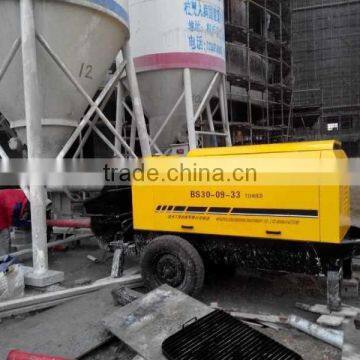

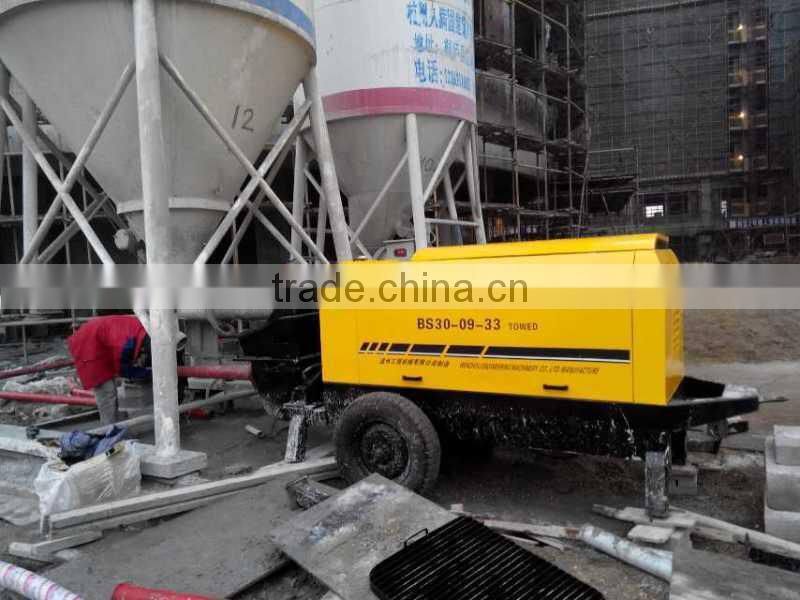

3. The concrete pump is used for pumping fine concrete and mortar which have been used for 3years in Philippines and Malaysia.
1. It's packed into 20ft container and export to Philippines.
2. Customer check concrete pump in our factory
3. Our contact
