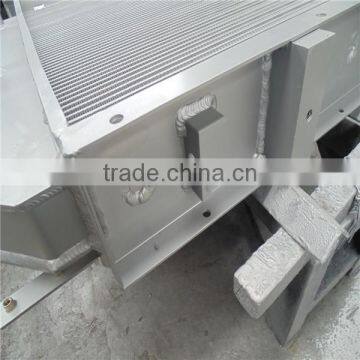

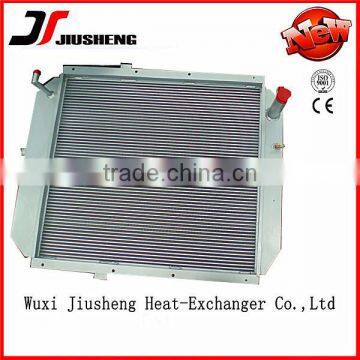

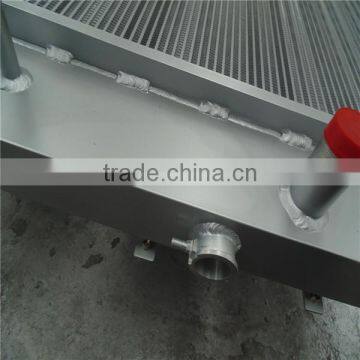

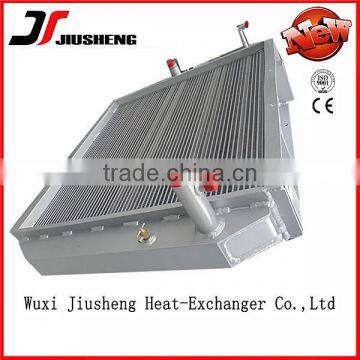

Air Cooled Plate Bar Aluminum Compact Air Cooled Radiator
We have sepecial design engineer that can desigh the
coolers according to your tech requirement.
Features:
-Modules are pressure and leak tested, assembled and packaged
-prototypes and production products can be completed in a short lead time.
-production core geometries for radiators(water-air), oil coolers(oil-air), air coolers for engines(CAC). Air coolers for compressors(air-air), air-oil welded combos.
-P-Bar complete cooling packages can be equipped with fan, motor, finger guard, etc
Advantages:
-Superior performance
Aluminum, as up to 25% higher heat transfer capacity in comparison to traditional cooper/brass cooling material
-Rugged, Lightweight and compact
-Air-side fin design minimizes fouling and static pressure ensuring long-term reliable performance
-Welded aluminum fittings/ports and manifolds ensure structural integrity
-Standard prots-SAE, NPT AND BSPP ports available
-Customized units are available to meet your specific performance requirements.
FIN SPEC |
Pitch(mm/FPI) |
G(mm) |
H(mm) |
Louvered Fin |
2.5~5mm/10~20FPI |
0.1~0.17 |
6.5~18 |
Wavy Fin |
2.5~8mm/6~20FPI |
0.1~0.35 |
2.5~12 |
Flattop Fin |
2.1~10mm/5~20FPI |
0.1~0.2 |
2.5~12 |
Offset Fin1 |
4.5~8mm/6~16FPI |
0.15~0.5 |
1~5 |
Offset Fin2 |
4~8mm/6~13mm |
0.12~0.2 |
5~18 |
Wuxi Jiusheng's Cooling System Application
1.For air compressors
2.For construction machinery(Like Komatsu,Hitachi, Daewoo, Hyundai)
3.For modified car and heavy truck,racing car intercooler
4.For air separation
5.For engines
6.For hydraulic system
7.For new energy
8.For mechanics and aerospace.
working progress
FIN TYPE
QUALITY TIG WELDING
CORE DETAILS
PRODUCT SHOWCASE
certification
WORKING PARTNER
To be your best Supplier!
Help you find your worth brazed aluminum Air Cooled Air Cooled Radiator
Quality and Service is our Advantage!
