Specifications
rooftop solar water heater1.Keymark approved;
2.Multifunctionfor solar / heat pump
3.1 year for warranty
Professional stand-alone rooftop solar water heater

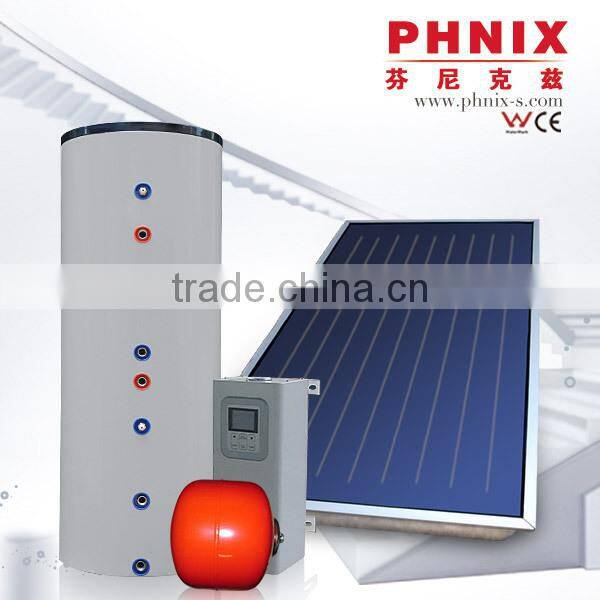

| Picture show of rooftop solar water heater |
PHINX |
| Details for rooftop solar water heater |
PHINX |
|
Solar Collector | |||
| PSHC-2C | PSHC-2C B | ||
| Dimensions (L*W*D) | mm | 2015*1015*105 | 2015*1015*105 |
| Shipping dimensionGross area | m2 | 2070*1075*140 | 2070*1075*140 |
| Gross area | m2 | 2.05 | 2.05 |
| Absorber area | m2 | 1.72 | 1.72 |
| Absorption | % | 95±2 | 95±2 |
| Emission | % | 5±2 | 5±2 |
| Max.operating pressure | bar | 6 | 6 |
| Content | L | 0.95 | 0.95 |
| Flow / return distance | mm | 1800 | 850 |
| Connections | G | 3/4'' | 3/4'' |
| Angle of inclination | . | 0-90 | 0-90 |
| Absorber | eta plus-Cu | ||
| Absorber coating | High selective vacuum coating | ||
| Heat transfer medium | Polypropylene glycol / water mixture | ||
| Brief of rooftop solar water heater |
PHINX |
| Technical data |
PHINX |
|
PAWT tank
| ||
|
Nominal capacity |
L | 50 / 80 / 100 / 120 / 150 / 200 / 250 / 300 / 400 / 500 / 600 / 700 / 800 |
|
Inner tank diameter |
mm | Φ370 / Φ370 / Φ370 / Φ370 / Φ370 / Φ470 / Φ470 / Φ500 / Φ600 / Φ600 / Φ650 / Φ700 / Φ700 |
|
Inner tank material |
SUS304 , SUS316L, duplex stainless steel (<500L) | |
|
Out shell material |
Galvanized steel with painting, stainless steel | |
|
Out shell color |
White, silver-grey, blue, red | |
Max. working pressure |
bar | 6 |
Max. testing pressure |
bar | 10 |
| Max. running temperature | oC | 90 |
| E-heater | Flange welded type, screw thread type (optional) | |
| Mg. anode | Optional | |
| Material |
PHINX |
1.Material of out shell: Galvanized-steel with painting, stainless steel, PU soft coat, aluminum-alloy.
2.Material of inner tank: Duplex stainless steel 2304/2205, SUS304, SUS316L are available.
3.Insulation: polyurethane resin foaming / PU soft coat.
4.Material of inner coils: Copper / stainless steel / wave stainless steel.
| Unique technology/advantage |
PHINX |
| Feature & charecter of Solar Collector |
PHINX |
1.PHNIX is NO.1 stainless steel water tank manufacturer in China to use butt-welding technology, duplex stainless steel material and developed hundreds different design tanks.
2. Our water tanks have gained CE and WaterMark certificates, and cooperated with customers to get NFand UL certificates. Good help for you to sale the certificated products!
3.Process high-class auto welding machines, connectors ' hole punching machines, efficiency water leakage test requirements and professional testing laboratory, which double ensure to offer customers long-term reliable high quality products.
4.The most important thing is PHNIX have a well-educated technical & QC engineers team and a quick-act sales team, so that we can offer customers reliable and satisfaction OEM and ODM service.
| Working principle |
PHINX |
1. The solar collector absorbs solar energy and transit the heat to the tank through heating-liquid.
2. When the temperature of collector and tank bottom temperature difference reach to 8 degree, the circulating pump start running to take the solar heat to tank.
3. The tank heat exchanger coil will transfer the heat with outside cold water to reach customer's hot water using.
4. If there is no sunshine or not enough sunshine, it can start E-heater, heat pump unit or other auxiliary heating sources ensure enough hot water for users.
| Other type of water tank |
PHINX |
|
|
|
|
| Working process |
PHINX |
| PHNIX company |
PHINX |
