SUS Coils Storage Water Tank for Heat Pump

US$ 142 - 280 MOQ: 1 Unit

Key Specifications

Type:

Other, storage water tank

Pressure:

Pressurized

Circulation Type:

Indirect / Closed Loop (Active)

Guangzhou SST Heating Energy Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Guangzhou China

Delivery Detail:

Delivery time depends on order quantity.

Type Other, storage water tank

Pressure Pressurized

Circulation Type Indirect / Closed Loop (Active)

Heating System Thermosyphon (Passive)

Connection Type Direct-Plug

Installation Other, Freestanding, Freestanding/ Wall mounted

Housing Material Other, precoated sheet steel/Stainless teel

Certification CE, Other, UR, CE, RoHS, UR

Capacity 200

Brand Name SST

Model Number Storage water tank for heat pump

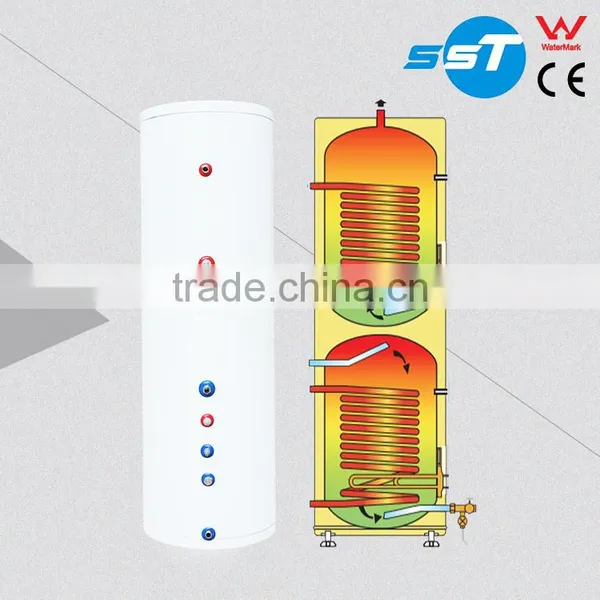

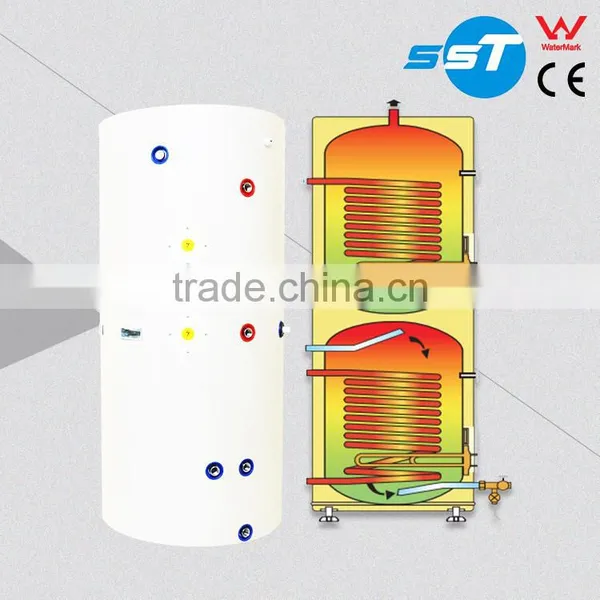

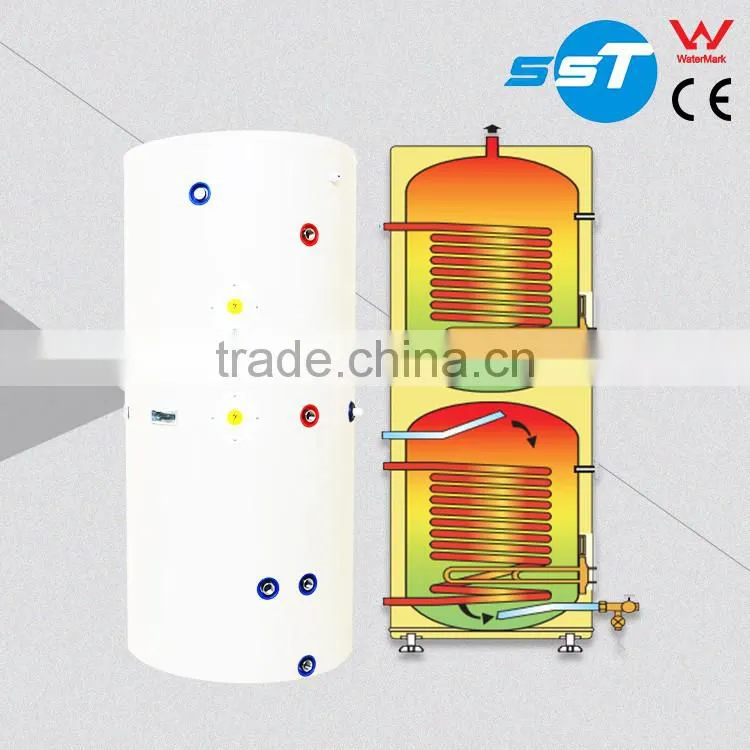

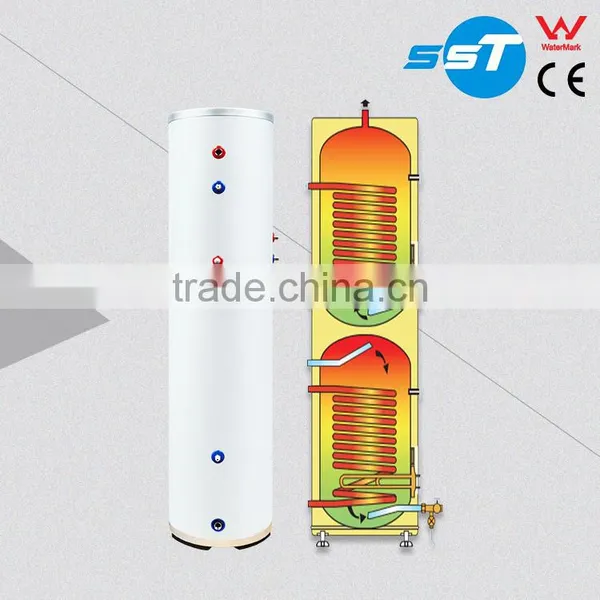

SUS coils Storage water tank for heat pump

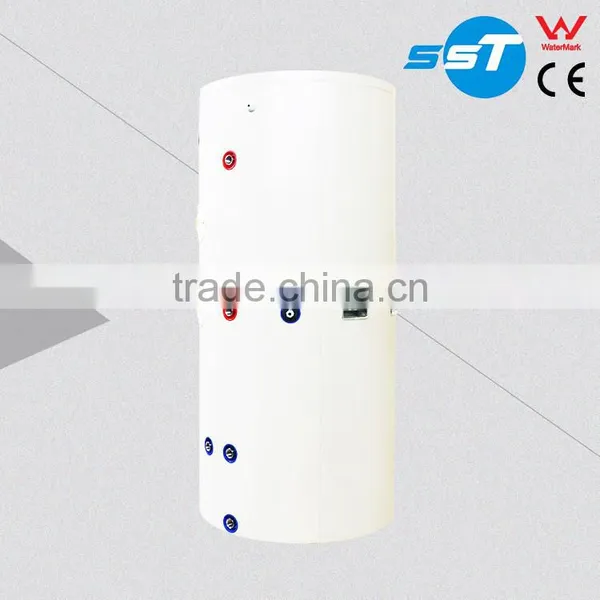

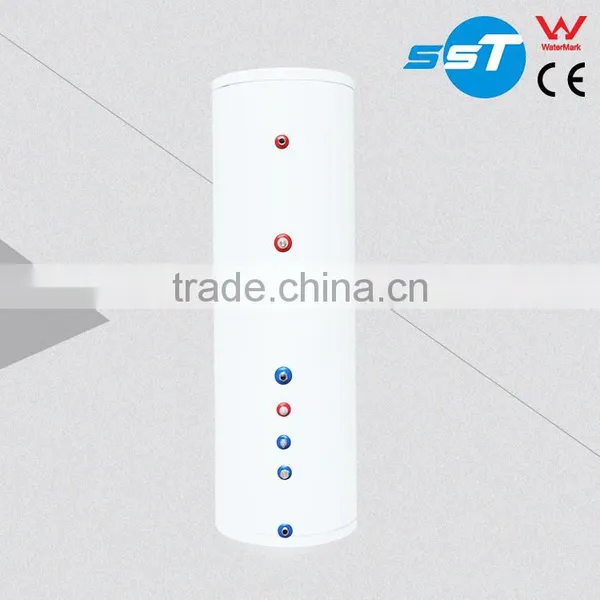

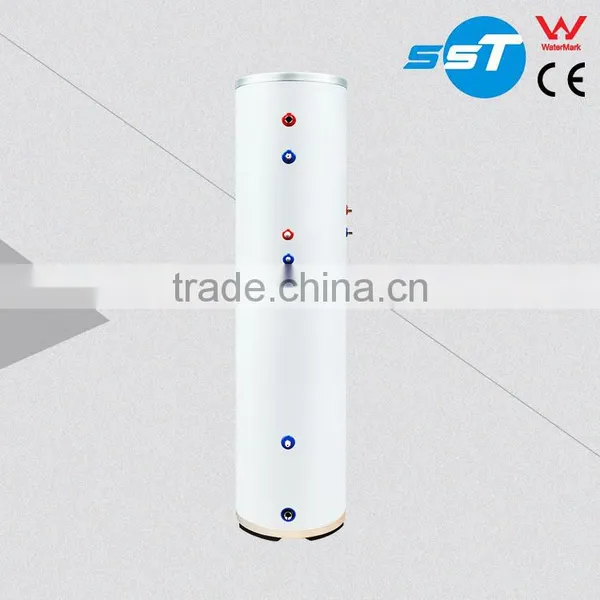

Product Show

SST

Product Parameters

SST

Capacity	L	100	200	300	400	500	600	800	1000
Inner tank diameter	mm	Φ370	Φ470	Φ500	Φ550	Φ600	Φ650	Φ700	Φ800
Out shell diameter	mm	Φ470	Φ560	Φ600	Φ650	Φ700	Φ760	Φ800	Φ900
Inner tank material	mm	SUS304 / SUS316L / Duplex2205 / Duplex2304
Out shell material	mm	galvanized steel with painting / stainless stell / PU
Out shell color		white / silver-grey / blue /red / golden / stainless stell
ing pressure	bar	6	6	6	6	6	6	6	6
Max.testing pressure	bar	10	10	10	10	10	10	10	10
Max.running temperature	℃	90	90	90	90	90	90	90	90
Heating loss	W/K	0.65	0.72	0.89	1.02	1.15	1.26	——	——
Standing loss	W	30	33	40	46	52	57	——	——
ERP Class		A	A	A	A	A	A	A	A
Electrical heater	kw	1.5	1.5	1.5	1.5	3	3	3	3
Mg.Anode	mm	*Φ22300**
Water connection		G / BSP / NPT 3/4"				G / BSP / NPT 1"
Packing size	mm	L:540 W;540 H:117	L:630 W:630 H:1440	L:670 W:670 H:163	L:720 W:720 H:1920	L:780 W:780 H:1930	L:850 W:850 H:1940	*Φ9002200**	*Φ9802420**
