fireproof diesel fuel storage tank with enamel coating
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
What is Enamel coating diesel fuel storage tank ?
The steel round (cylindrical) shell of the tank is built from two-layer emanelled sheets coated on both sides. The sheets are attached with special high-grade bolts and sealed by constantly flexible silicone (sealant). The surface of connecting material and the shell itself are properly treated.
This is the only tank finish where two materials are fused together to achieve the best of both: the strength and flexibility of the steel combined with the corrosion resistance of the glass. The high temperature fusion of glass to steel fired at 850 degree results in an inert, durable finish. Applied to both interior and exterior, the GFS technology is able to withstand the rigours of the construction site and provide many years of trouble free service in harsh environments.
Enamel coating steps
Center enamel Inc. possesses advanced enameling technology and more than 20 years experience. Steels show good chemical and physical performance because it contains titanium. Furthermore, the superfine glass foam-like structure of the enameling layer, enable the materials’ excellent flexibility and durability.
| Product Name |
enamel coating diesel fuel storage tank |
| Coating Color | dark green, white, blue, color can be customized |
| Coating Thickness | 0.25~0.40mm ,double coating |
| Acid and alkalinity proof | Standard sheet PH:3~11 |
| Special sheet PH: 1~14 | |
| Adhesion | 3,450 N/cm |
| Elastic | Same as steel sheet,around 500 Kn /mm |
| Hardness | 6.0 ( Mohs ) |
| Service life | ≥30Years |
| Holiday test | >1500v |
| Permeability | Gas / liquid impermeable |
| Easy to clean | Teh Smooth, glossy, inert, non adhesive |
| Corrosion resistance | Excellent,suitable for wastewater,salt water,sea water,high-sulfur crude oil,salt fox,organic and inorganic compounds |
| Advantages |

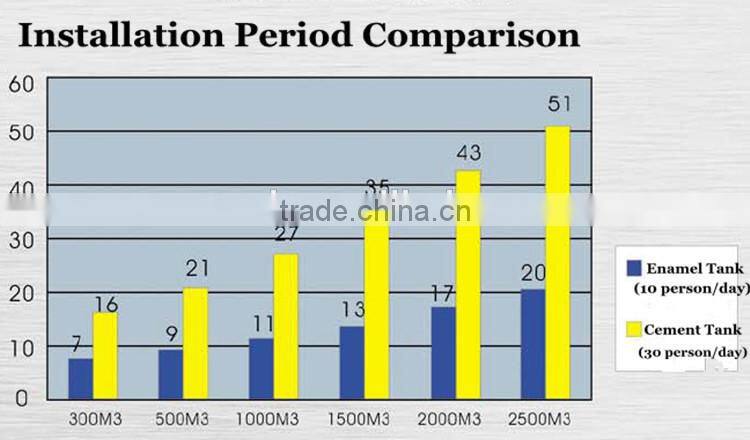

- short construction period - superior corrosion resistance, service life is more than30 years - low project cost - tank volume can be easily expanded - beautiful appearance, color can be customized - no need big installation equipment - easily expand , dismantle, move |

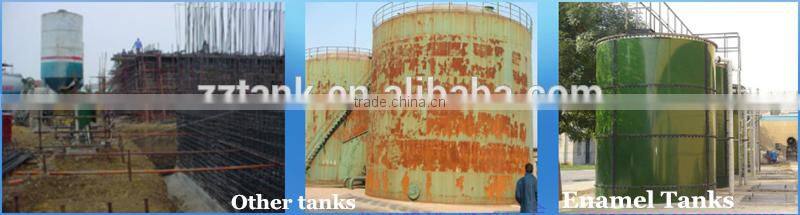

| Comparison of various tank characteristics - 1 | ||||
| Name | Concrete Tank | Carbon steel tank |
Enamel tank (Glass-fused-to-Steel tanks) |
LIPP tank |
| Beautiful degree | Low | Low | High | High |
| Temperature adaption | A stress |
Adapt to low temperature |
Adapt to low temperature |
Adapt to low temperature |
| Shape | Any shape | Round shape | Round shape | Round shape |
| Ground Or underground | Both | Ground | Both | Ground |
| Corrosion resistance | Normal | No resistance to corrosion | Good | Not |
| Abrasion resistance | Good | Bad | Good | Bad |
| Easy to clean | Bad | Bad | Good | Normal |
| Easy to repaire | Normal | Good | Good | |
| Weight (T) | heavy | Little heavy | light | Little light |
| Tank cost | middle | high | low | low |
| Tank temperature protect | no | need | need | need |
| Anti-corrosive Treatment | no | need | no | need |
| Annual anticorrosive cost | no | High cost | no | High cost |
| Corrosion resistance | normal | no | superior | normal |
| Abrasion resistance | good | bad | good | bad |
| Service life | 30 | 10 | 30 | 25 |

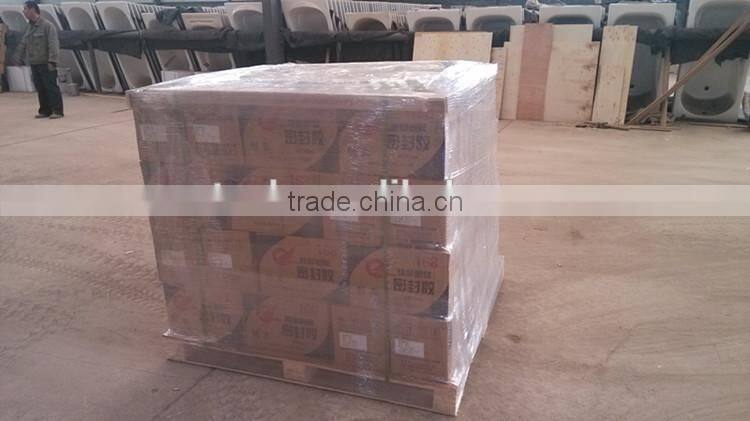

Double checking is required before packaging, confirm the plate’s code and quality. The steel plates is separated with each other by PE foam, to avoid any damage on the coating surface. And the whole pallet steels packed in wooden case.
Shi Jiazhuang Center Enamel Inc.
The leader of enamel coating storage tank in China!
The production base of enamel tank in china !
The largest and the most profession enamel tank supplier in china!
1.To improve the steel quality performance after enameling, we developed special steel ART310 with Angang Steel Group in 2005 which can greatly Increase not only the adhesive power between steel and enamel coating, but also solve fish scaling problem and improve the steel yield strength after firing.
We have 26 years experience in producing enameled steel sheet in China.

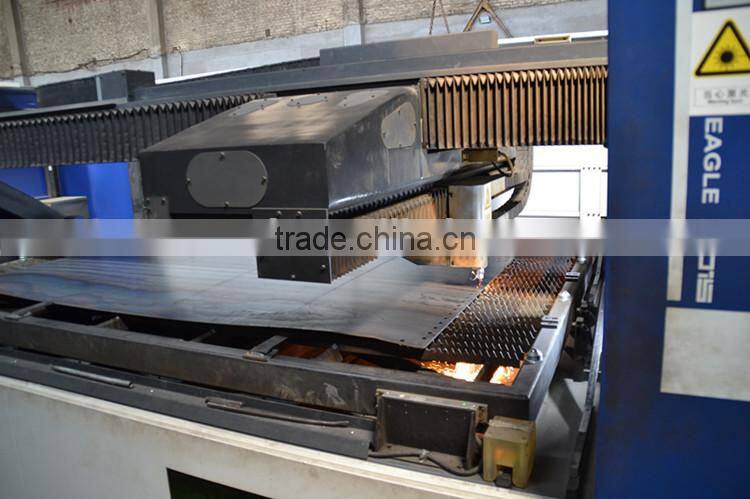

2.We are the only one factory have the laser cutting machine in China that can greatly improve both the production and the quality of the glass-fused-to-steel water storage tank.
3.Our glass-fused-to-steel water storage tank has already passed the ISO9001-2000 quality system certification
4.Our glass-fused-to-steel water storage tank and design reach AWWA D103-09 standard, OSHA and meet European standards.
5.We are the only enterprise that can produce AA grade (acid proof and alkali proof ) enameled sheet now.
6.We are the factory direct selling that can offer glass-fused-to-steel water storage tank at competitive prices.
7.We can customize various products according to customers’ different operating requirements.
Dear Friend, Thank you for your time. If you feel interested in fireproof diesel fuel storage tank with enamel coating or have any questions, please feel free to contact me:
Gabby Xuan
E-mail : zztank_gabby(at)
Skype: gabby8427
Tel : 86-20-34061259
Mobile /whatsapp: +86 18620551151
