Prawn Shrimp Feed Pellet Press Machine with Ring Die/Ring Die Pelletizer Machine Price
1. Introduction for FDSP fish feed pellet machine
FDSP chicken feed pellet mill is an ideal pelletizing machine for high quality feed pellets.It is developed based on international CPM technology, and now is the most common type pellet machine in feed industry.
2. Features of FDSP fish feed pellet machine
a)Adopt aerodynamic technology, reducing the temperature in pelletizing chamber to around 90°C, therefore the machine can work well continuously.
b) Using spheroidal graphite cast iron, the machine body is more durable.
c)Treated by hardness quenching and milling machine,the gears maintain high concentricity with the shaft, Thus ensuring a good performance and large capacity than belt driven models.
d)With lubrication system, you can add grease to main shaft without having to turn off the machine .
e)The ring die mould are cast by heat processing technology, thus having a durable life and producing qualified pellets.
f)Equipped with an advanced compensation serpentine-spring coupling which connects the pelletizing chamber with the motor to increase safety and stability.
g) Permanent magnet device can remove impurities in the pelletizing process.
h) Multi-layer conditioners can be customized to improve quality of feed pellets.
3. Technical parameters of FDSP fish feed pellet machine
Model |
Output (t/h) |
Main Power (kw) |
Inner diameter of Die (mm) |
Pellet Size (mm) |
SZLH25 |
0.5-2 |
15/22 |
250 |
2-18 |
SZLH32 |
2-5 |
37/45 |
320 |
2-18 |
SZLH35 |
3-7 |
55 |
350 |
2-18 |
SZLH400 |
4-10 |
75/90 |
400 |
2-18 |
SZLH420 |
4-12 |
110 |
420 |
2-18 |
SZLH508 |
6-20 |
160 |
508 |
2-18 |
SZLH678 |
8-28 |
200/220/250 |
678 |
2-18 |
SZLH768 |
10-35 |
250/280/315 |
768 |
2-18 |
4. Conditioners of FDSP fish feed pellet machine
The optimum conditioning of feed ensures you to get the highest performance out of a FDSP pellet mill. The gain of good conditioning:
*higher production throughput
*better pellet durability
*improved digestibility
*reduced pellet mill power consumption.
Kindly note:
We can customize different kinds of conditioners to meet your request. All the FDSP conditioners are made from stainless steel, have a very stable design and allow an easy installation on top of the pellet mill.

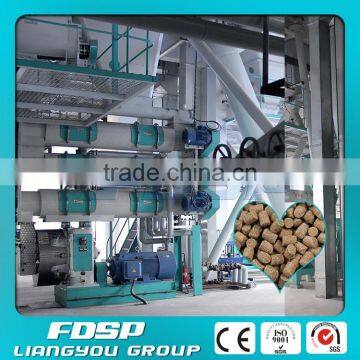

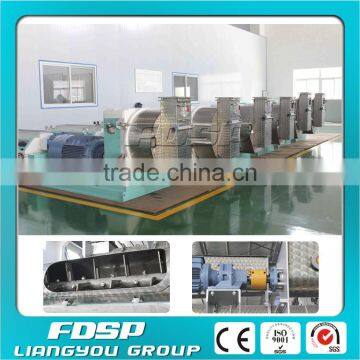

5. FDSP feed pellet machine in our workshop
6. Feed pellets produced by FDSP feed pellet machine
7. Certifications of FDSP feed pellet machine
1.The quality assurance system of LIANGYOU is authenticated with ISO9001 quality assurance system.
2.The FDSP ring die feed pellet machines of LIANGYOU are issued CE certification by European Union.
8. After-sale service
Warranty: 1 years
Our professional service includes: Free training, Guidance Installation and Debugging.
9. Company View
We manufacture and export feed machines more than 15 years, and we can make over
1,000 sets of pellet mills each year.
Covering total area of 15,000 square meters with over 200 staffs, our company has two
large scale workshops and one large comprehensive warehouse. We have full set of
production facilities and series of CNC machines to meet forging, casting, machining, etc.
10. Overseas customers visit
Our pellet mill has been exported over 30 countries including Russia, Africa, Iran, Korea,
Germany, Italy, Netherlands, Spain, United Kingdom, France, etc. Our products enjoy
good reputation for the high quality in domestic and overseas market.
11. Exporting shipment
Any question or need for fish feed pellet machine, please do not hesitate to contact us!
