Specifications
FDD quick freezing freezer/ tunnel quick freezer1.ISO certificatre
2.Energy-saving
3.High-efficiency
FDD series tunnel type single broadband instant freezer

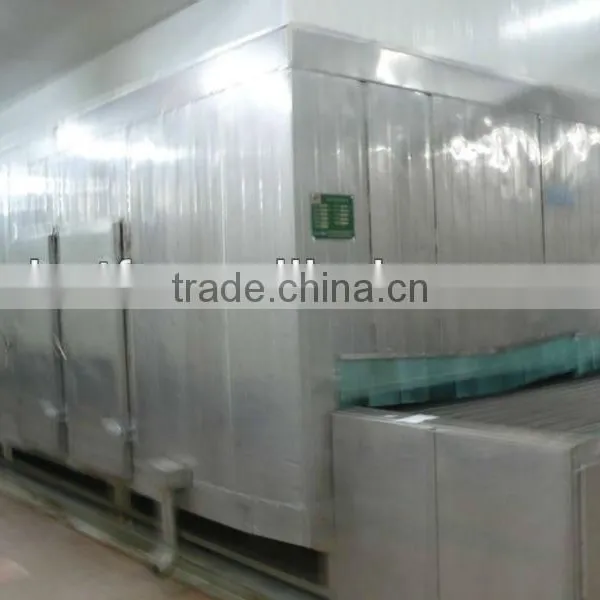

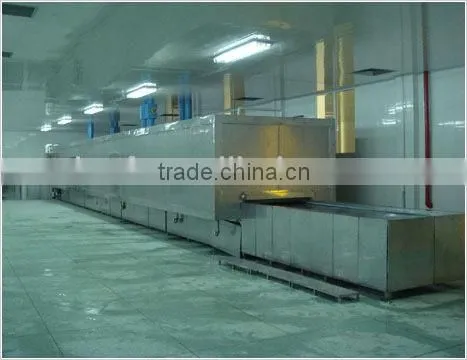

Quick freezing freezer/ tunnel quick freezer
FDD broadband quick-freezing machine series is a kind of single quick-freezing machine with advanced design and excellent performance., it has the advantages of energy saving, high efficiency and keeping food fresh over maximum limit. Its outstanding characteristics :Large frozen area, wide application scope. This device is widely used in frozen bar type , lump, flake or granular food, such as shrimp meat, the shrimp, asparagus, fish fillet, potato piece, dumplings, steamed stuffed bun , spring rolls, pig's tongue, chicken, etc. Can use single frozen, block frozen, dish frozen etc. Energy saving, healthy, convenient cleaning and maintenance. Up and down, left and right sides multiple directions blowing closed air duct structure, make the food freeze more perfect, improving the quality and efficiency of freeze.

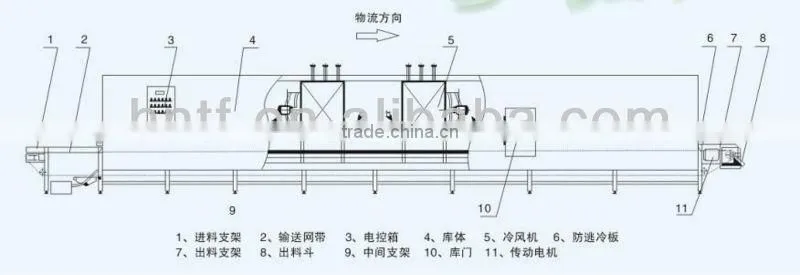

FDD Freezer structure
Advantages:
1, High quality of IQF products, frozen products without coagulum, fully in line with the export of food hygiene standards.
2, frozen time is short, use air convection, the effect is good, only 3 ~ 60 minutes to freeze time.
3, double speed motor, expand the using range and saving energy.
4, frozen goods, front and back, up and down, left and right direction of the wind, make freeze more hasten is perfect, the quality is better, more efficient.

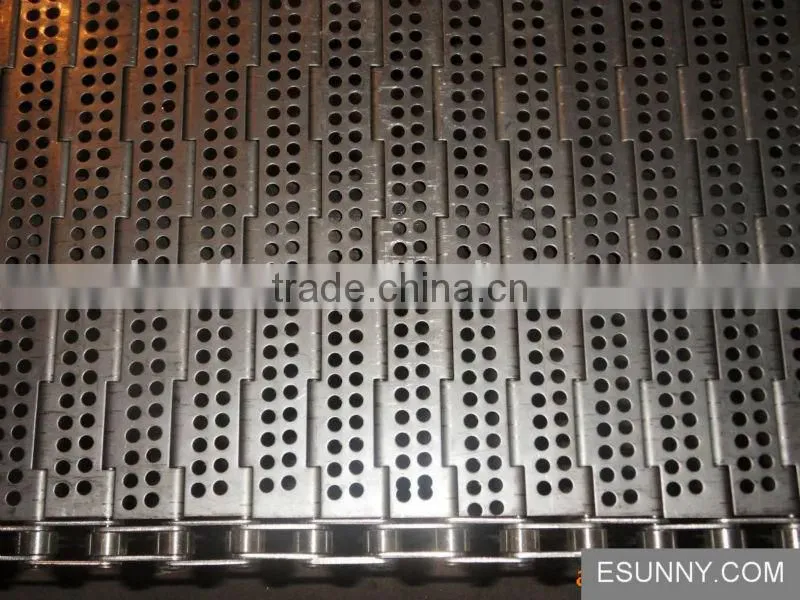

5, adopts imported brand stainless steel conveyor mesh belt, guaranteed the processing food hygiene standards.
6, using frequency double drive systems, even with the level of system malfunction, cannot work normally, the level also can continue to produce alone, guarantee the production without delay.
7, the air cooler USES the whole aluminum tube set piece, improve the efficiency of the health level and quick-frozen food.
8, excellent heat preservation system adopt polyurethane foam sandwich double-sided stainless steel plate as peripheral library. With heat insulation effect significantly, appearance is beautiful
FDD Series main parameters :
Model |
FDD-500 |
FDD-750 |
FDD-1000 |
FDD-1500 |
|
Production capacity(kg) |
500 |
750 |
1000 |
1500 |
|
Cooling power(kw) |
115 |
165 |
185 |
256 |
|
|
Dimension L×W×H(M) |
8.0×3.3×1.6 |
10.0×3.7×1.6 |
13.0×3.7×1.6 |
16.0×4.3×1.6 |
|
|
Overall dimension L×W×H(M) |
10.0×3.3×2.2 |
12.3×3.7×2.2 |
15.3×3.7×2.2 |
18.3×4.3×2.2 |
|
Power(kw) |
12 |
15 |
22 |
32 |
|
Input material temp(°C) |
+20°C |
||||
Output temp(°C) |
-18°C |
||||
Inner recycling temp(°C) |
-35±2°C |
||||
Freezing time min |
10~60 |
||||
coolant |
R717or R22 |
||||
