2017 buy sany concrete pump truck parts

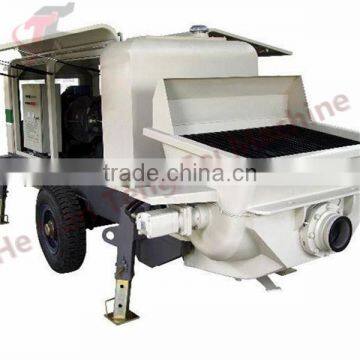

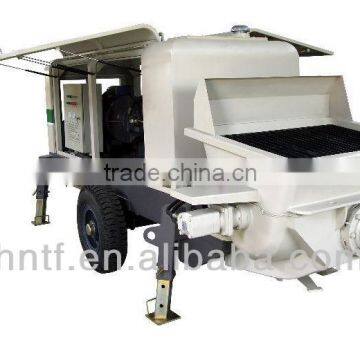

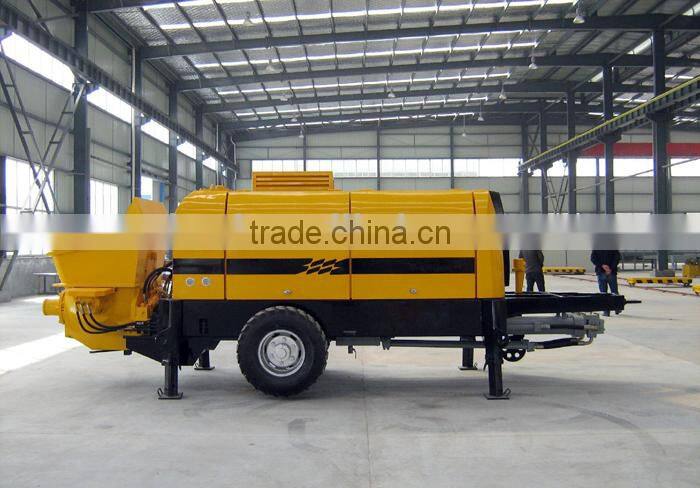

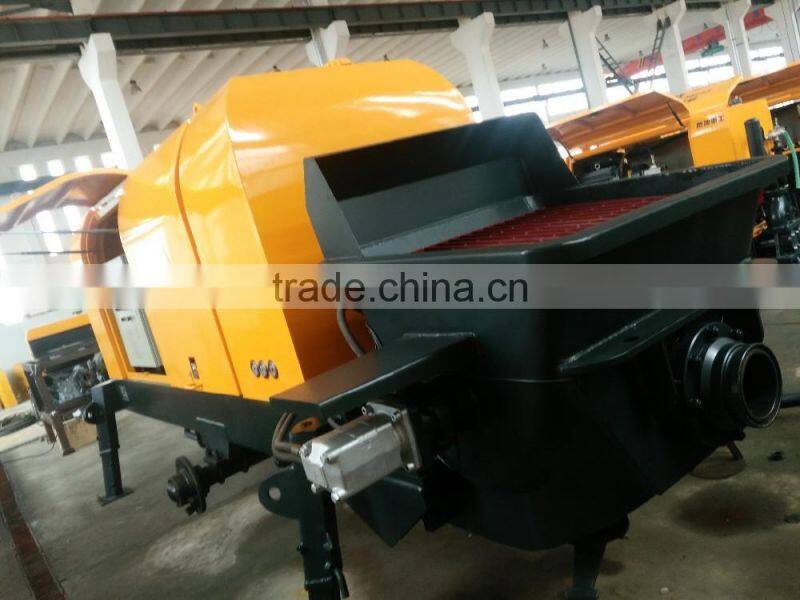

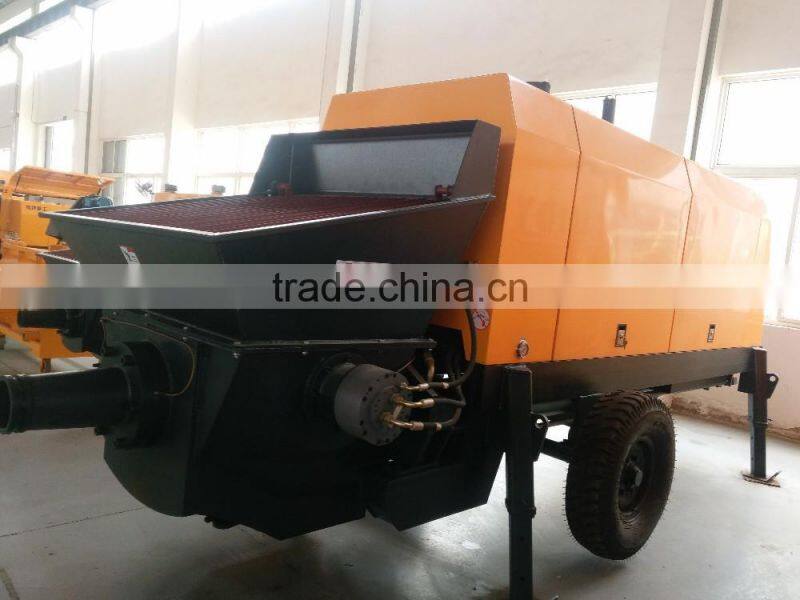

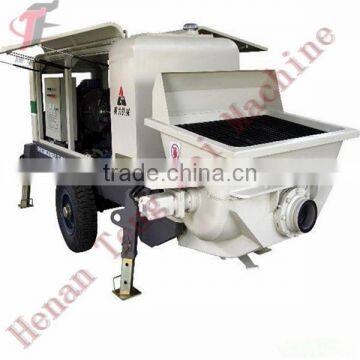

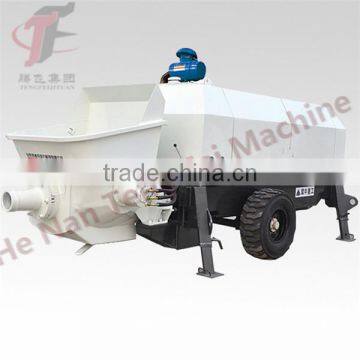

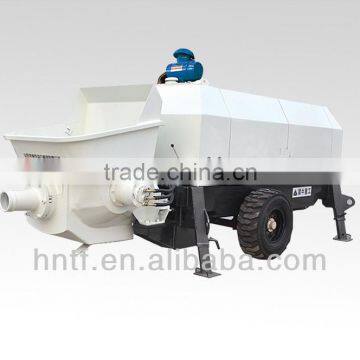

Large portable concrete pump truck parts is designed for tall buildings, roads, bridges and other large concrete construction engineering project. It works with high efficiency, stable delivery, long distance transportation and small concrete slump.

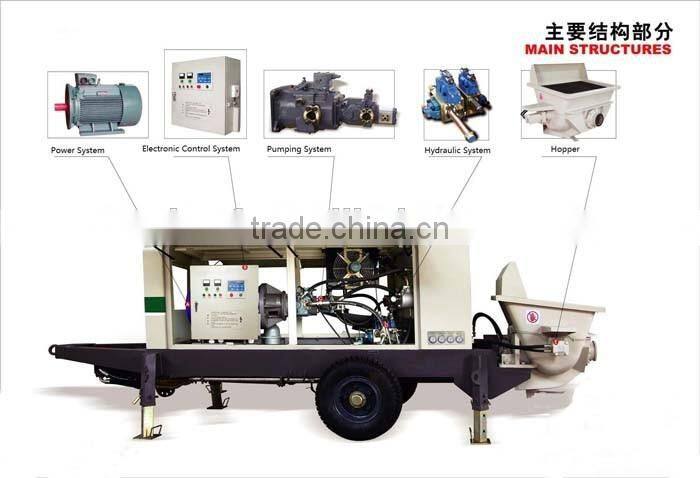

Advantages:
Outstanding electric control system is advanced technology, simplified design and high reliability.
Cooling system of concrete pump truck parts:
The forced air cooling radiator device, ensure the hydraulic system of working oil temperature control in normal operating range, in order to protect the host hydraulic system in normal working condition.
Lubrication system of concrete pump truck parts:
Equipped with filter, avoid blocking due to dirty oil; blocking automatic display, ensure the concrete does not flow backwards, and the reliable lubricating system extends the service life of S valve.
Hydraulic system of concrete pump truck parts:
A. Adopt open circuit hydraulic system, easily fault diagnosis and troubleshooting;
B. Decompression control to the pilot valve, avoiding impact from the commutation;
C. Pump hydraulic system with safely overflow protection;
D. The oscillating circuit works under constant pressure pump, powerful oscillating and energy-saving.
Distribution valve system of concrete pump truck parts:
The technical parameter of concrete pump truck parts:
Item |
HBTS80.13.90 |
HBTS80.16.110 |
HBTS60.9.75 |
HBTS90.13.130R |
Max conveying capacity (m³/h) |
78 |
81 |
60 |
88 |
Max pump conveying pressure (Mpa) |
13/7 |
16/6 |
9/5 |
13/7 |
Hydraulic system |
Open system |
Open system |
Open system |
Open system |
Hydraulic system pressure(Mpa) |
32 |
32 |
32 |
32 |
Motor type |
Y280M--4 |
Y315M--4 |
Y280S--4 |
TBD266B-6 |
Rotation (r/min) |
1480 |
1480 |
1480 |
2400 |
Power (KW) |
90 |
110 |
75 |
130 |
Main oil pump |
A11Vl0190 |
A11Vl0260 |
A11Vl190 |
A11VL0260 |
Oil pump nominal working flow(L/min) |
281 |
456 |
281 |
456 |
|
Pumping oil cylinder bore /route(mm) |
ø 125/1600 |
ø 140/1600 |
ø 125/1400 |
ø 125/1600 |
|
Concrete cylinder bore /route(mm) |
ø 200/1600 |
ø 200/1600 |
ø 200/1400 |
ø 200/1600 |
High &low voltage switching |
Yes |
Yes |
Yes |
Yes |
Oil Tank Capacity(L) |
500 |
500 |
500 |
500 |
Hopper Capacity(m3) |
0.8 |
0.8 |
0.8 |
0.8 |
Feeding height (mm) |
1430 |
1430 |
1430 |
1430 |
Max conveying distance(m) |
270/1200 |
270/1200 |
320/1380 |
270/1200 |
Concrete slump (mm) |
120~230 |
120~230 |
120~230 |
120~230 |
Out dimension (mm) |
6000×2160×2300 |
6000×2160×2300 |
6000×2160×2300 |
6400×2160×2600 |
Total weight (kg) |
6000 |
6150 |
6150 |
6200 |

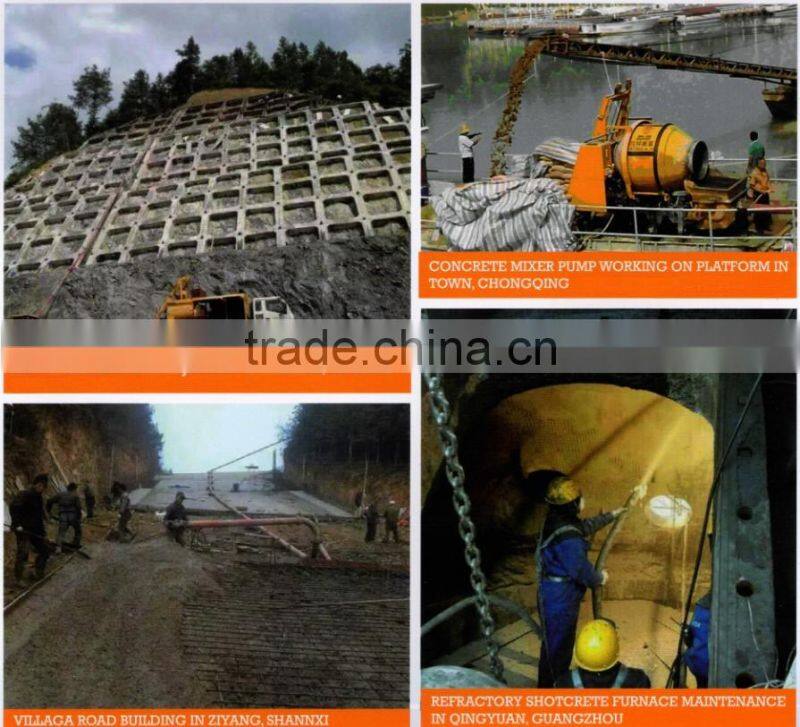

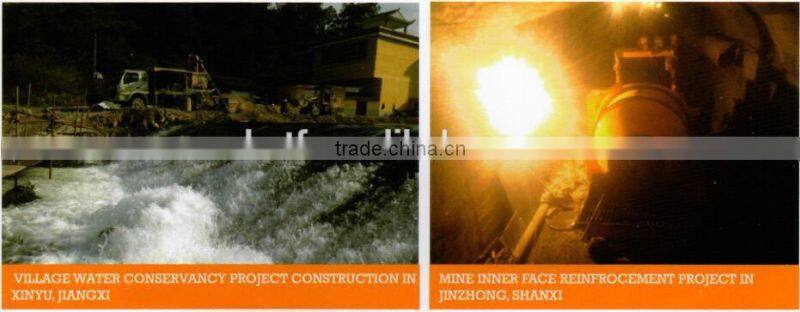

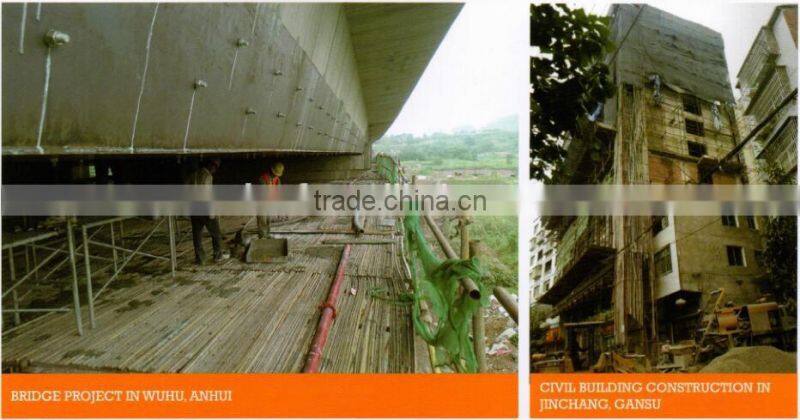

CONSTRUCTION CASED of concrete pump truck parts:

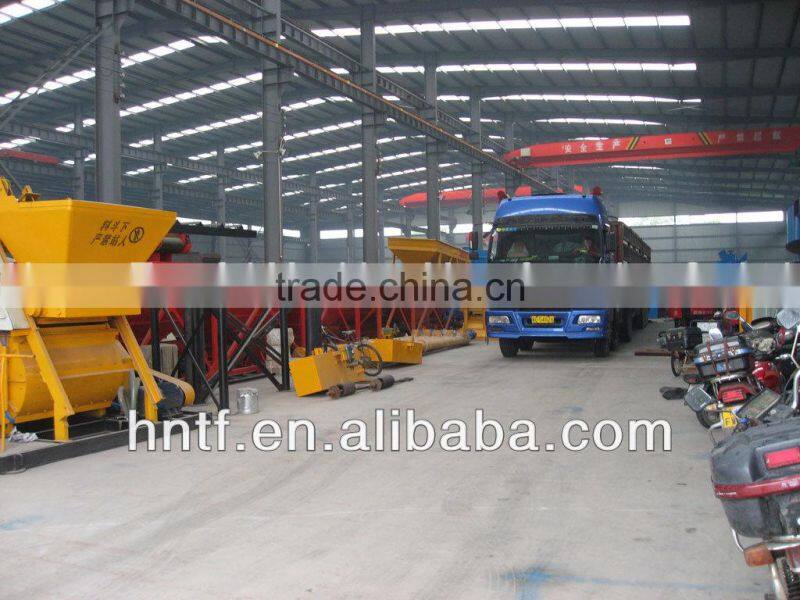

TENGFEI machinery is committed to integrating the design, production and sales of high concentration fluid construction equipment, with its superb technological R&D strength and manufacturing capabilities, providing customers with high performance, cost-effective high concentration fluid construction equipment.

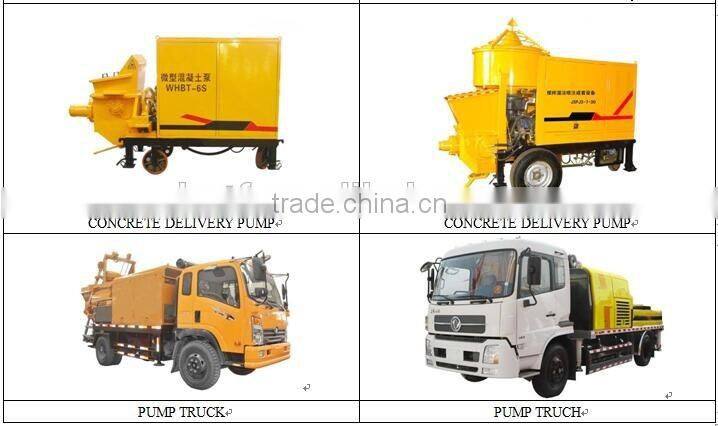

The related products of concrete pump truck parts:
Q: How many kinds of concrete pump truck parts you have?
A: We have all kinds of concrete pump truck parts such as small models with capacity 20,25, 30,40m3/h, medium models with capacity 40, 50m3/h, large models with capacity 60, 803/h.
Q: Do you have concrete placing booms that could be working together with concrete pump truck parts?
A: Yes, We have below series.
1: 12/15/18m Manual Mechanical Spider Concrete Placing Booms
2: 13/15/17/18m Mobile Hydraulic Spider Concrete Placing Booms
3: 28/32m Floor Climbing Type and Elevator Well Shaft Climbing Concrete Placing Booms (Tubular Column)
4: 21/24/28/32 Elevator Well Shaft Climbing Concrete Placing Booms (Mast Section)
Q: What is the configuration?
A: For exporting, most of the components are world famous top brands such as VOLVO, DEUTZ, Siemens, Rexroth, Kawasaki, Schneider, Omron, LG, Eaton, Manuli, Parker etc. The configuration could be customized according to client’s requirements.
Q: Is engineer available for training and after sales service?
A: Yes, our oversea engineers team are standing by for oversea service. Some engineers could speak English.
