Specifications
Titanium dioxide kiln1.active lime production
2.Large-capacity facotry
3.Quality-control
Titanium dioxide kiln
Types:
Rotary kiln belongs to building material equipment, and it can be divided into cement kiln, metallurgy chemical kiln and lime kiln according to different materials.
Application:
1) Rotary kiln is the key equipment in cement industry for calcining clinker.
2) It is also used in various industries, such as metallurgy, chemistry, building, refractory material, environmental protection, etc.
3) The kiln is composed of the cylindrical shell, roller supporting device with thrust roller, driving gear unit movable kiln hood, sealing device at kiln inlet, coal dust pipe device etc.
Working Principle:
1) With a certain slope to the level, the whole kiln body is supported by rollers and fitted with thrust rollers to control up and down movement of the kiln body.
2) Besides main driving unit for driving system, it is also fitted with the auxiliary driving unit so as to ensure the kiln body still can rotating when the main motor is powered off and prevent it from deforming.
3) The kiln head adopts housing type sealing and kiln rear uses axial contact sealing unit so that reliability of sealing could be ensured. Titanium dioxide kiln
Technical parameters:
| Specification | Capacity(t/d) | Incline of body(°) | Speed(r/min) | Main motor(kw) | Remarks |
| Φ2.5*60 | 168 | 3.5 | 0.516-1.549 | 75 | Alumyte-alumina forge kiln |
| Φ3*48 | 700 | 3.5 | 0.726-3.63 | 110 | Kiln with 5-stage cyclone precalciner |
| Φ3*60 | 3.5 | 0.492-1.476 | 75 | Alumyte-alumina forge kiln |
|
| Φ3*100.94 | 450 | 4 | 0.3-1.503 | 90 | Multiple-drum cooling |
| Φ3.2*46 | 1000 | 3.5 | 0.36-3.57 | 160 | kiln with preheater precalcine |
| Φ3.2*52 | 1200 | 3.5 | 0.343-0.34 | 125 | kiln with preheater |
| Φ3.3*50 | 1300 | 3.5 | 0.676-3.38 | 160 | kiln with plateau suspension preheater |
| Φ3.3*52 | 1300 | 3.5 | 0.266-2.66 | 125 | kiln with preheater precalcine |
| Φ3.5*54 | 1500 | 3.5 | 0.55-3.4 | 220 | kiln with preheater precalcine |
| Φ3.6*70 | 1800 | 3.5 | 0.25-1.25 | 125 | Generating kiln for using ofterheat |
| Φ4*60 | 2500 | 3.5 | 0.396-3.96 | 315 | kiln with preheater precalcine |
| Φ4.15*58 | 5 | 0.35-0.7 | 110 | Zinc leaching(calcine rotary kiln) | |
| Φ4.2*60 | 3000 | 4 | 0.4-3.98 | 375 | |
| Φ4.3*60 | 3500 | 3.5 | 0.396-3.96 | 375 | kiln with preheater precalcine |
| Φ4.5*66 | 4000 | 3.5 | 0.41-4.1 | 560 | kiln with preheater precalcine |
| Φ4.8*74 | 5000 | 4 | 0.396-3.96 | 630 | kiln with preheater precalcine |
| Φ5.0*74 | 6000 | 4 | 0.35-4 | 710 | kiln with preheater precalcine |
| Φ5.6*87 | 8000 | 4 | Max4.23 | 800 | kiln with preheater precalcine |
| Φ6.0*95 | 10000 | 4 | Max5 | 950*2 | kiln with preheater precalcine |

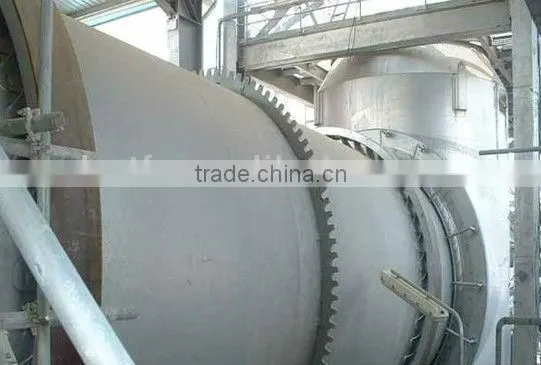

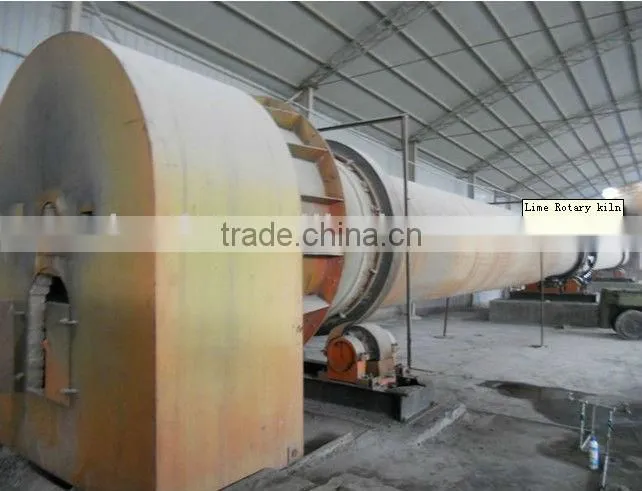

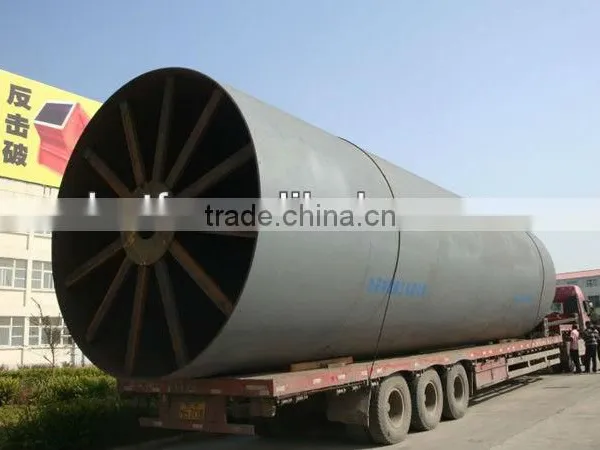

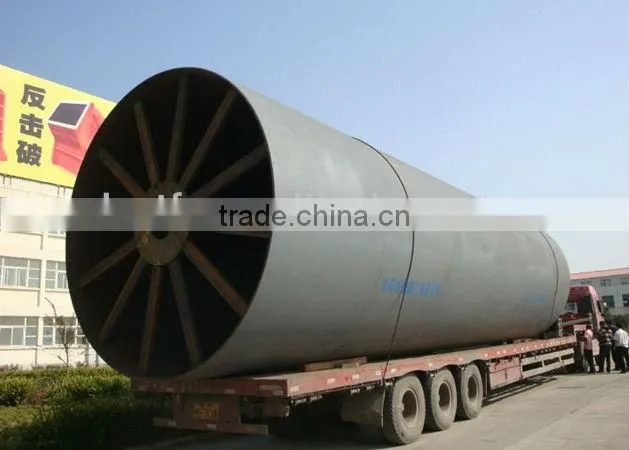

Rotary kiln in factory and site
