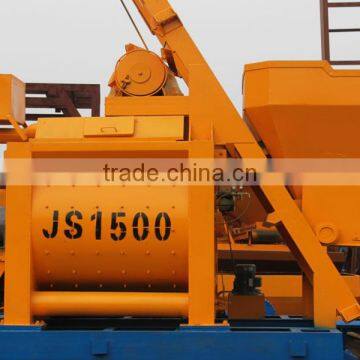

Concrete mixer JS1500
Applications
JS1500 concrete mixer machine can mix dry rigid concrete, plastic concrete,
the mobility of concrete, lightweight aggregate concrete and every kind of mortar.
It could be used for all kinds of precast plants, highways, bridges, water conservancy,
ports, terminals, etc. and construction sectors.
Working principle
After electrify, the main raw material through the hopper, into the internal mixer,
two stirring shaft by the motor reducer drive, in the opposite direction of rotation of the mixing work,
make sufficient raw materials mixing
Technical parameters
Item |
JS1500 |
||
Discharging capacity (L) |
1500 |
||
Charging capacity (L) |
2400 |
||
Output Capacity(m3/h) |
75 |
||
Max. Aggregate Size (mm) |
60/80 |
||
Cycle Time (s) |
60-75 |
||
Mixer Motor |
Power (kw) |
2*22 |
|
QTY |
2 |
||
Hoist Motor |
Power (kw) |
15 |
|
QTY |
1 |
||
Electric Oil Pump |
Power (kw) |
-- |
|
QTY |
-- |
||
Water Motor |
Power (kw) |
3 |
|
QTY |
1 |
||
Mixing Blade |
Rotate Speed (r/min) |
25 |
|
QTY |
2*8 |
||
Feeding type |
Skid Hopper |
||
Discharging type |
Pneumatic control, Automatically |
||
Dimensions (m) |
Transportation situation |
5.06*2.25*2.44 |
|
Working situation |
9.65*3.44*9.7 |
||
Weight (t) |
7.5 |
||
Detail about JS1500
Stirring motor
Reducer
Wear-resisting side plate
Inside structure
JS1500 concrete mixer machine price Manufacturing that is generally packed in the following ways: standard export packing, seaworthy packing or as required.
transport by sea way is the safest and most effective way
1. According to your inquiry, We will reply to you in 24 hours.
2.Best After-sales: We will send the technical personnel to the site for installation, commissioning and training work.
3.WARRANTY :12 MONTH
Warranty period, in addition to the force majeure and man-made factors, the damage caused by design, process and manufacturing equipment, the seller is responsible for sending people to offer free repair.
4. We will send the spare parts as soon as possible when necessary, equipment repair parts provided by the seller are original, authentic, quality goods.
