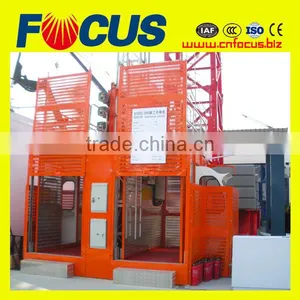

CE Approved SC200/200 Series Construction Lift/ Building Construction Hoist Double Cage thumbnail-1
CE Approved SC200/200 Series Construction Lift/ Building Construction Hoist Double Cage thumbnail-2
CE Approved SC200/200 Series Construction Lift/ Building Construction Hoist Double Cage thumbnail-3
CE Approved SC200/200 Series Construction Lift/ Building Construction Hoist Double Cage thumbnail-4
CE Approved SC200/200 Series Construction Lift/ Building Construction Hoist Double Cage thumbnail-5
CE Approved SC200/200 Series Construction Lift/ Building Construction Hoist Double Cage thumbnail-6
CE Approved SC200/200 Series Construction Lift/ Building Construction Hoist Double Cage photo-1
CE Approved SC200/200 Series Construction Lift/ Building Construction Hoist Double Cage photo-2

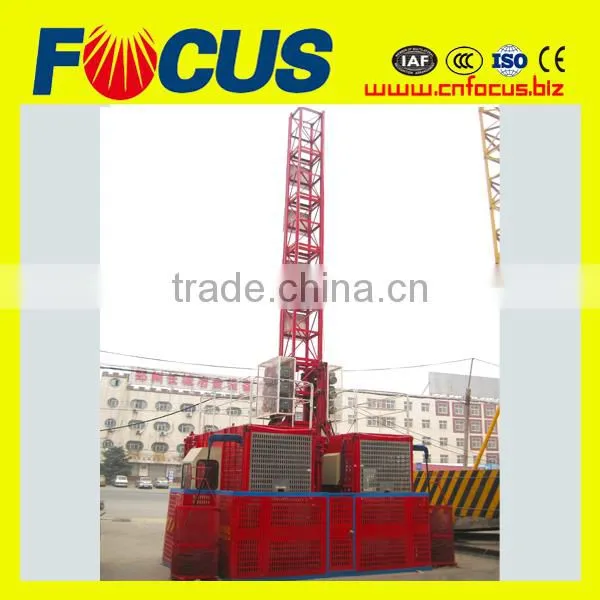

CE Approved SC200/200 Series Construction Lift/ Building Construction Hoist Double Cage photo-3

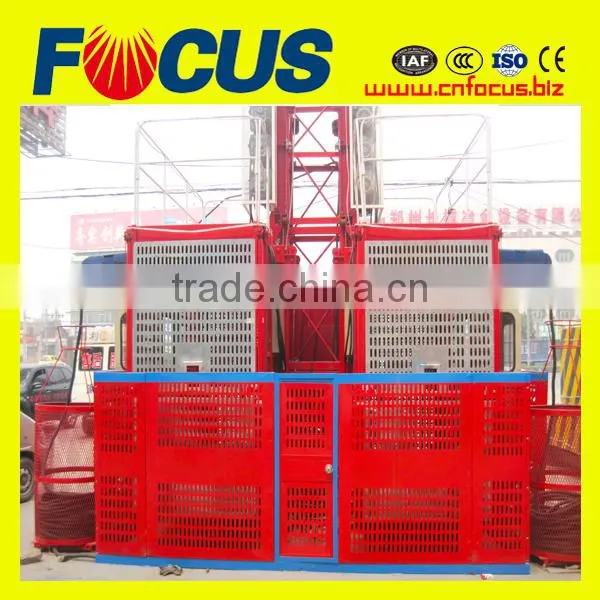

CE Approved SC200/200 Series Construction Lift/ Building Construction Hoist Double Cage photo-4

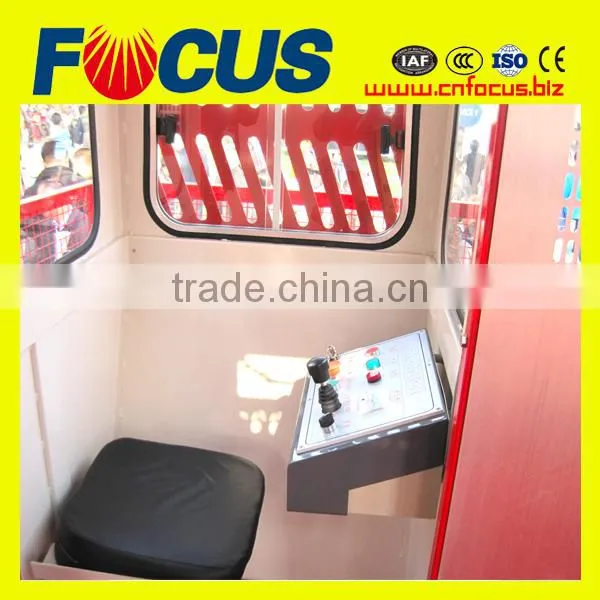

CE Approved SC200/200 Series Construction Lift/ Building Construction Hoist Double Cage photo-5

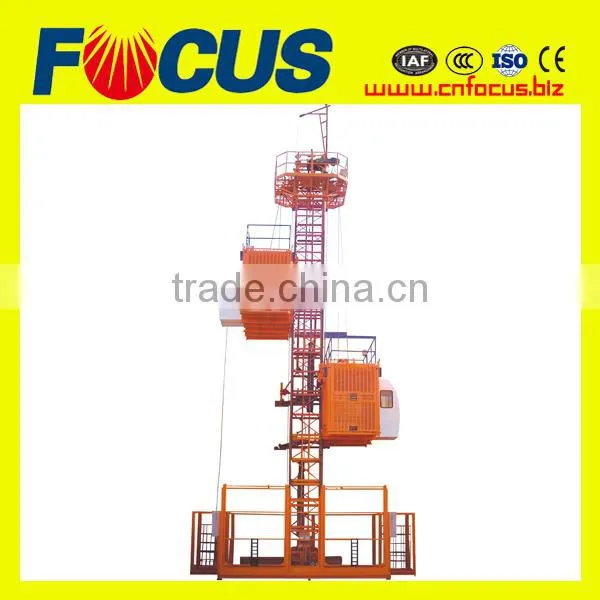

CE Approved SC200/200 Series Construction Lift/ Building Construction Hoist Double Cage photo-6
US$ 30,000 - 60,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Henan, China
Brand Name:
FOCUS
Contact Supplier Request Quote Chat Now
Zhengzhou Focus Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Henan, China
Brand Name FOCUS
Model Number SC200/200
Rated Loading Capacity(kg) 2*2000kg
Hoisting Speed 33m/Min
Max Lifting Height 250m or Above
Dimension(L*W*H) 1.5*3*2.4m
Loder Weight 2000*2KG
After-sales Service Provided Engineers available to service machinery overseas

CE Approved SC200/200 Series Construction Lift/ Building Construction Hoist Double Cage



Advantages of FOCUS Construction Hoist:

  1. Lifting speed can be easily controlled;
  2. Good after-sale service;
  3. ISO and CE certified with 12 months warranty
  4. Reliable performance



Why would our clients choose FOCUS construction hoist?
FOCUS MACHINERY construction hoist(construction lifter) adopts rack and pinion transmission based on domestic and foreign advanced technology, through many years of innovation and development.

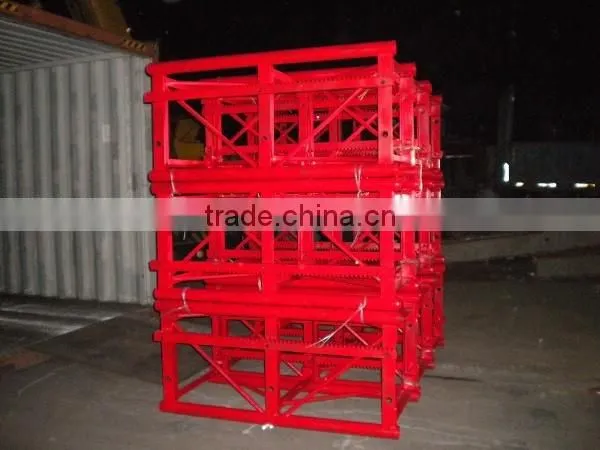

Mast section can be divided into three specifications as follows: 650x650x1508, 800x800x1508 and 960x650x1508, driving mode: SCD dual drive, counter weight, no counter weight of SC triple drive, built-in, upper-setting and frequency control etc. FOCUS construction elevators are applicable to bridges, chimneys, buildings and many other projects.



Main Parameters of FOCUS construction hoist:

Items
Type 		Type Pay load
(kg) 		Lifting speed
(m/min) 		Motor power
(kw) 		Cage dimension


Single cage 		SC120 1200 33 11kw*2 1.3*3*2.4
SC150 1500 33 13kw*2 1.3*3*2.4
SC200 2000 33 11kw*3 1.5*3*2.4
SC200A 2000 30 11kw*2 1.3*3*2.4
SC200 2000 33 13kw*2 1.5*3*2.4
 Double cage SC120/120 1200*2 33 11kw*2*2 1.5*3*2.4
SC150/150 1500*2 33 13kw*2*2 1.3*3*2.4
SC200/200 2000*2 33 11kw*3*2 1.5*3*2.4
SC200/200 2000*2 30 11kw*2*2 1.3*3*2.4
SC200/200A 2000*2 33 13kw*2*2 1.5*3*2.4

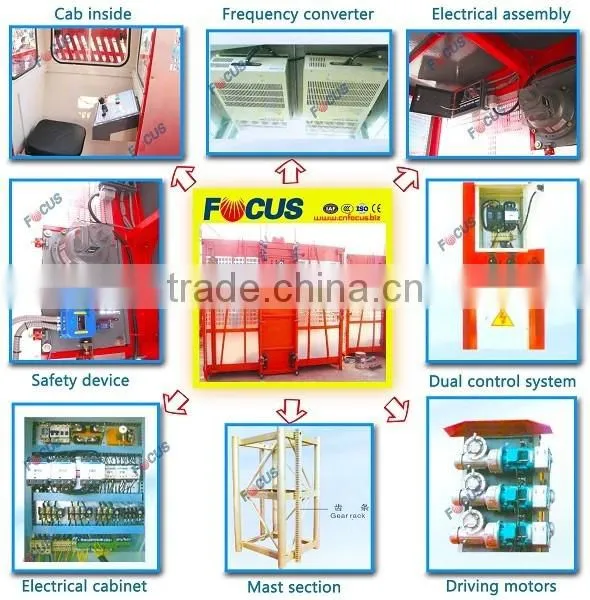

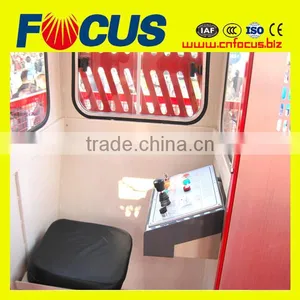

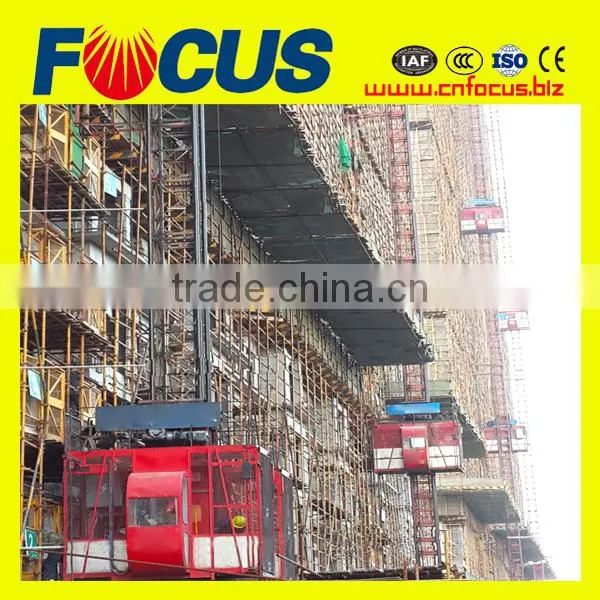

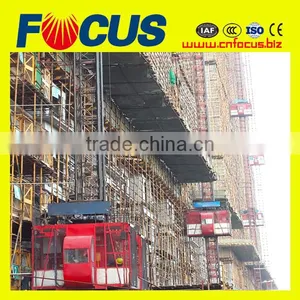

Product details of FOCUS construction hoist:
CE Approved SC200/200 Series Construction Lift/ Building Construction Hoist Double Cage



CE Approved SC200/200 Series Construction Lift/ Building Construction Hoist Double Cage



CE Approved SC200/200 Series Construction Lift/ Building Construction Hoist Double Cage

Thanks for visiting, by the time you are paying attention to us, our construction hoists are being delivered /distributed to the world everyday - it'll be such a great honor if you can join us.
For more information please visiting us @
