ISO Certified 50~60m3/H Mobile Concrete Batching Plant, Trailer Concrete Plant
Installation Video of Mobile Concrete Batching Plant:
/channel/UCew-L-l5cXqYflSxgFOjTlg
Advantages of FOCUS Mobile Concrete Batching Plant:
1.Complete mobile unit, easily transported
2.Reliable and consist mixing performance,precise dosing...
3.High quality, good after-sale service
Sizes of Mobile Concrete Batching Plant:
YHZS25(25cbm/h) mini small mobile concrete batching plant,
YHZS35(35cbm/h) mini small mobile concrete batching plant,
YHZS50/60(50-60cbm/h) small mobile concrete batching plant,
YHZS75(75cbm/h) small mobile concrete batching plant
Why would our clients choose FOCUS mobile concrete batching plant?
1.FOCUS MACHINERY boasts an award-wining small mobile concrete batching plant product range with capacity from 25cbm to 75cbm hourly.
2.This series of small mobile concrete batching plant adopts semi-pulling structure with running system and equipped with standard coupling pin, hence can be dragged by a tractor at the maximum speed of 40km/h.
3.As uniquely and compactly designed it is, this small mobile concrete batching plant assembles whole functions of accurate material weighing, efficient aggregate conveying, homogeneous mixing, computer auto-controlling and trailing.
The mobile concrete batching plant is the ideal concrete plant for projects that require frequent removal from one site to another.
What are the main features of FOCUS mobile concrete batching plant?
1. Complete mobile unit:
Unit easily transported on-site as well as from project to project, on-board hydraulic system changes plant from travel mode to full operational within 2-3 hours for this small mobile concrete batching plant.
2. Reliability of mix consistency:
Computer and manual dual control mode can be converted easily by a simple switch, twin-shaft mixer offers this small mobile concrete batching plant a consistent high grade of evenly mixed material, with its good quality mixing blades, paddles, arms and liners.
3. Highly precise dosing of water, cement, fly-ash and additive
Focus small mobile concrete batching plant dosing is realized by three-point suspension sensors, and they are all metered separately.
4. Optimized and modular design
FOCUS mobile concrete batching plant is convenient either for container transport or for towing vehicles.

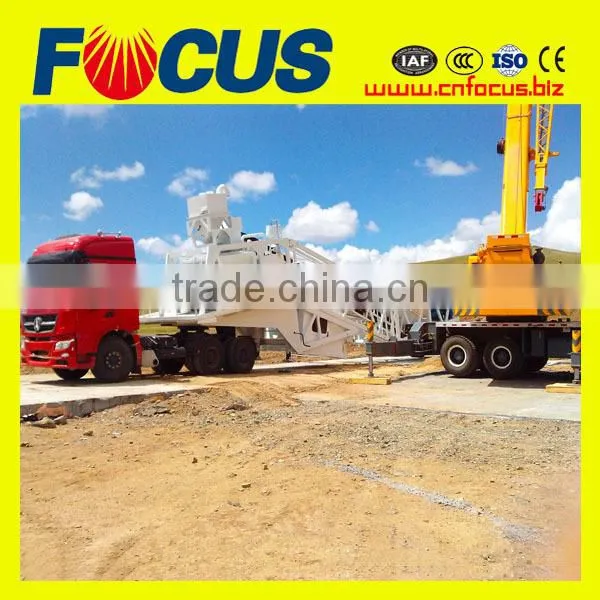

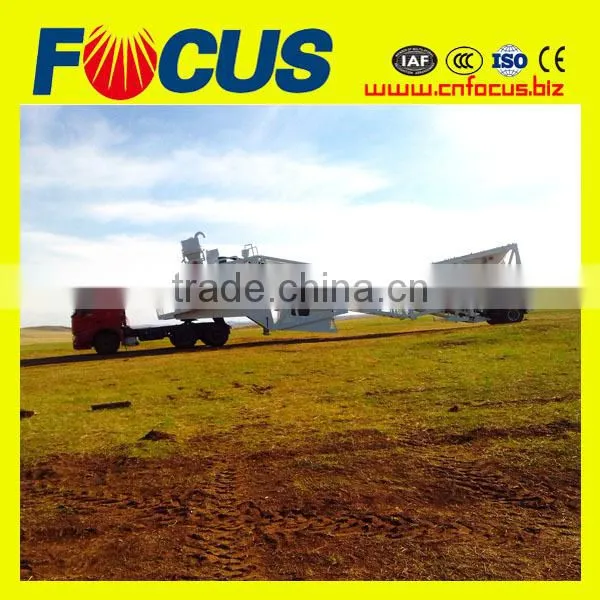

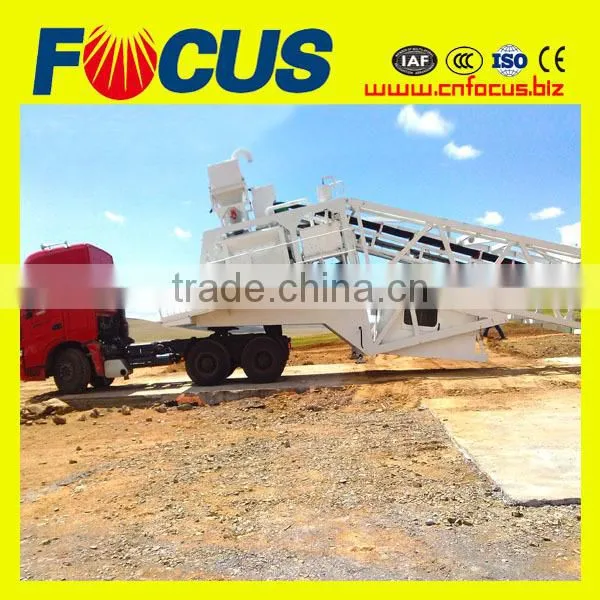

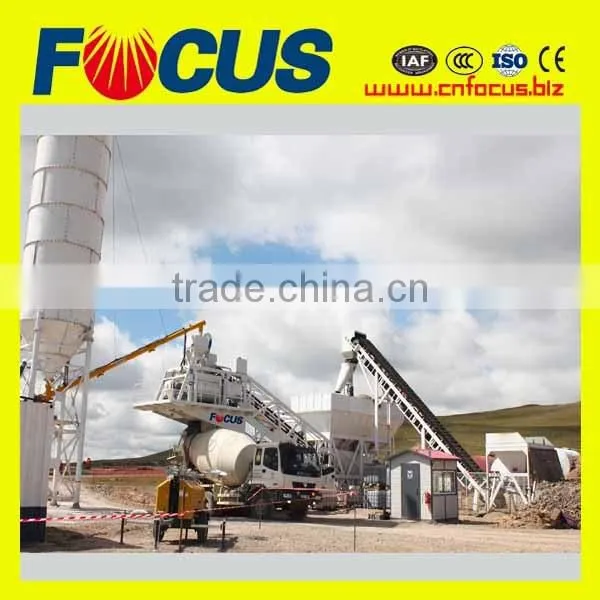

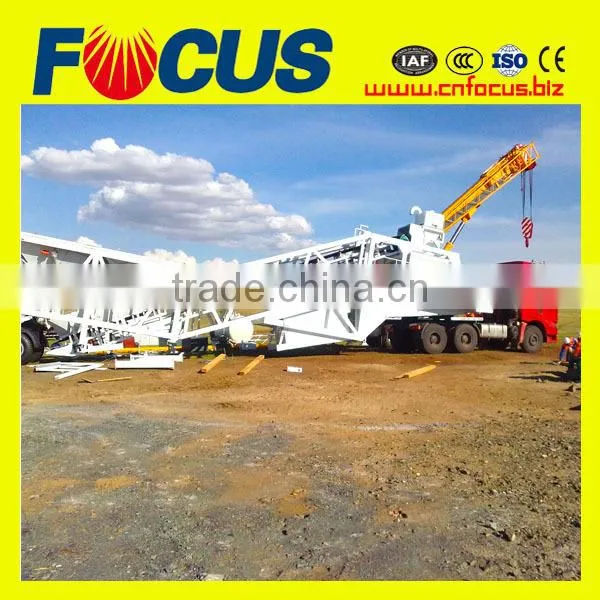

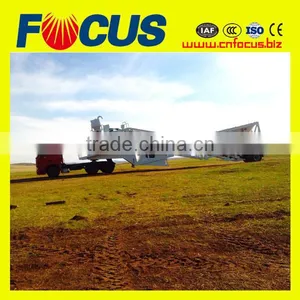

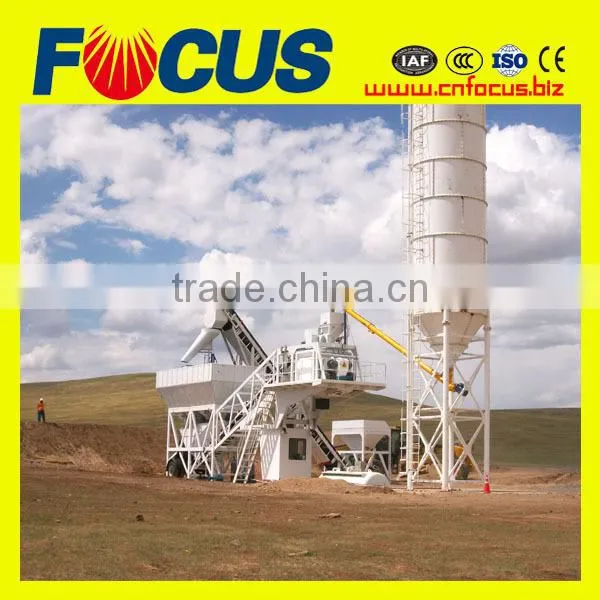

Demonstration with Photos:
FOCUS Mobile Concrete Batching Plant Technical Parameters:
| Model | YHZS25 | YHZS35 | YHZS50/60 | YHZS75 | |
| Output capacity | 25m³/h | 35m³/h | 50-60m³/h | 75m³/h | |
| Overall power | 40kw | 60kw | 85kw | 105kw | |
| Discharge height | 3800mm | ||||
| Max. hauling speed | 40km/h | ||||
| warranty | 13months after commissioning | ||||
| After-sale service | Guidance on erecting, commissioning and operator training, 24/7 technical assistance afterwards | ||||
| Concrete mixer | JS500 | JS750 | JS1000 | JS1500 | |
| Motor power | 18.5kw | 30kw | 18.5kw×2 | 30kw×2 | |
| Max. aggregate dia. | 80mm | ||||
| Aggregate batcher | PLD800 | PLD1200 | PLD1600 | PLD2400 | |
| Aggregate weighing precision | ±2% | ||||
| Aggregate feeder | Belt conveyor | ||||
| Other scale scope | Cement | ±1% | |||
| water | ±1% | ||||
| additive | ±1% | ||||
| Control system | Auto computer control, 1 set | ||||
| Pneumatic system | 1 set | ||||
Each second you are paying visits to our webpage, our mobile concrete batching plants are being purchased, installed and operated all over the world:
Thanks for visiting, by the time you are paying attention to us, our mobile concrete batching plants are being delivered /distributed to the world everyday - it'll be such a great honor if you can join us.
For more information please visiting us @
