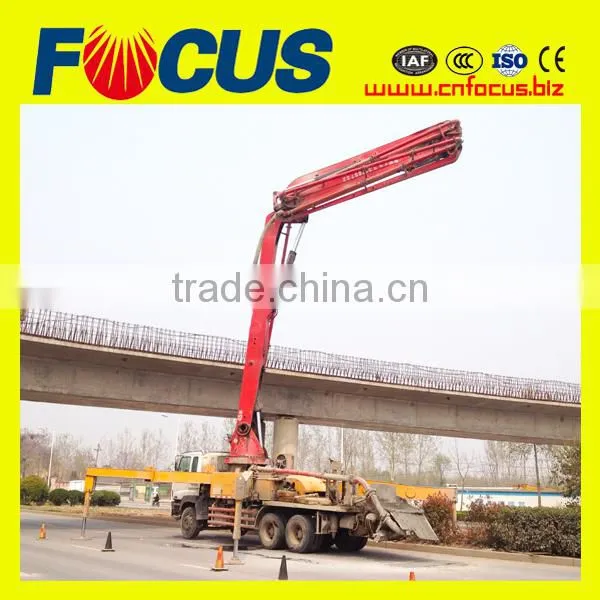

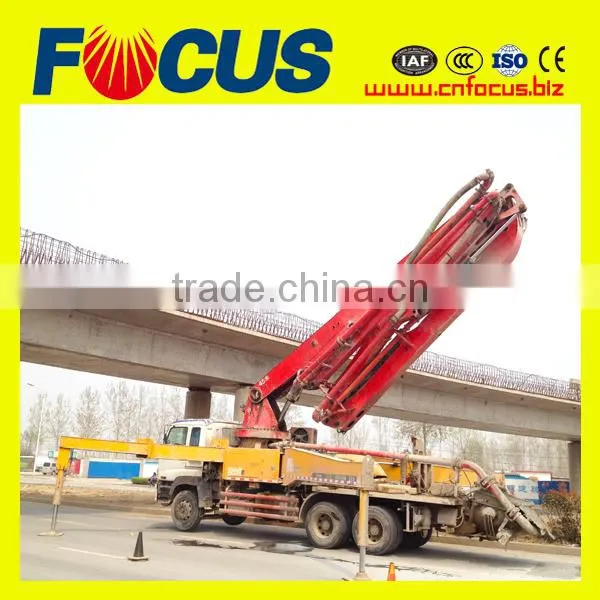

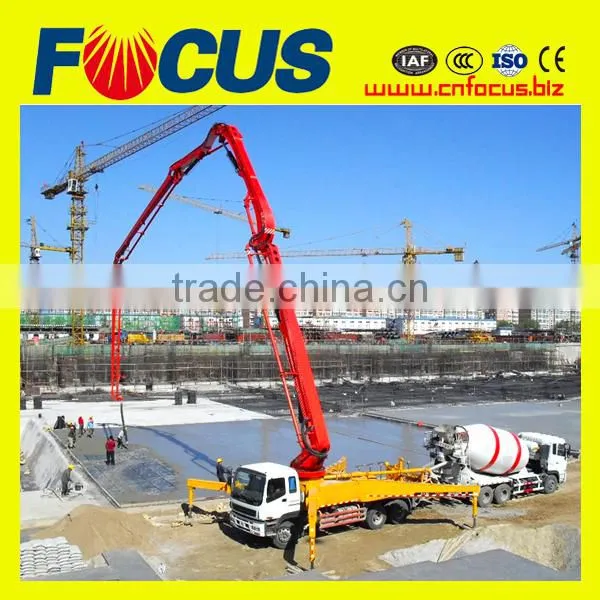

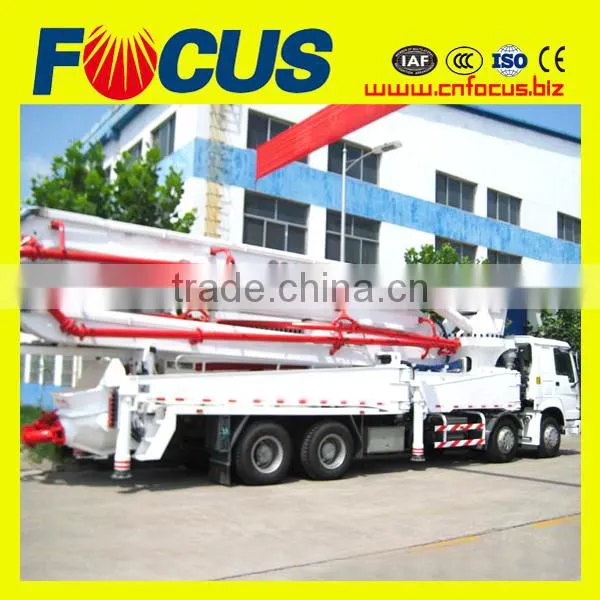

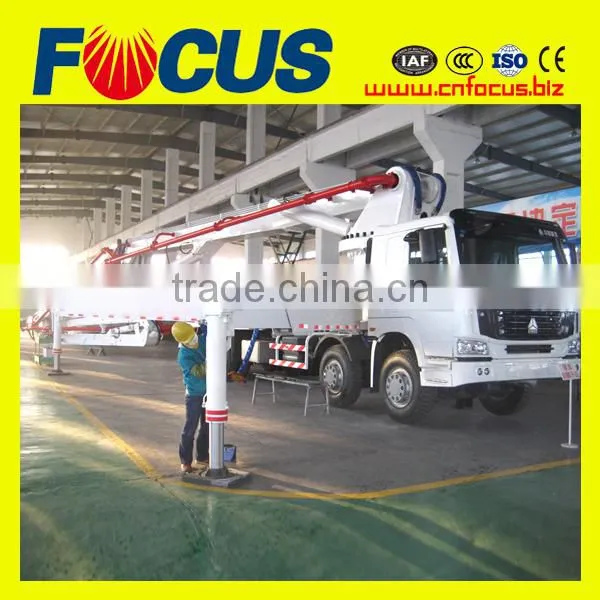

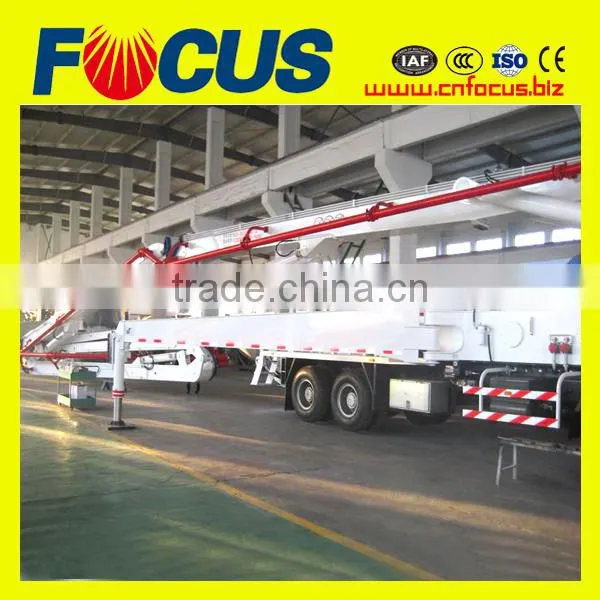

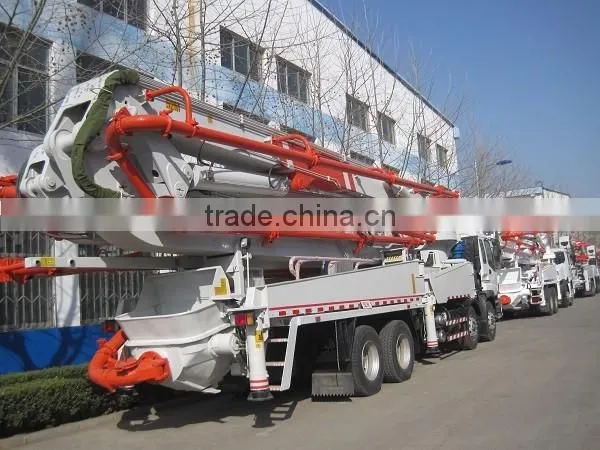

Isuzu Chassis Radio Remote Control
48m 52m Truck-Mounted Concrete Boom Pump
Bringing in advanced experience both at home and abroad, FOCUS boom concrete pump is developed by applying modern advanced computer simulation techniques and systematically analyzing the influence condition of the boom fatigue life because of the change of various parameters such as stress, displacement, natural frequency etc. The series products won many patents on boom structures optimization and hydraulic systems design.
Advantages of Focus Boom Concrete Pump:
1.good pumping performance;
2.ISUZU Chassis,low oil consumption,great mobility;
3.ISO certified.
Why would our clients choose Focus Boom Concrete Pump?
- large pumping capacity with high efficiency;
- light-weighed and optimized design enables FOCUS boom concrete pump truck small occupation of ground area;
- low oil consumption, economic engineered;
- full hydraulic system guarantee stable pumping performance;
Parameters of Focus 48m,52m Boom Concrete Pump:
| Parameter | Unit | HDT5380THB-48/5 | HDT5420THB-52/5 |
| Output in theory | m3/h | 125 | 125 |
| Bucket volume | L | 700 | 700 |
| Height of top surface of bucket | mm | 1400 | 1400 |
| Model of distribution valve | S Valve | S Valve | |
| Max. operation radius | m | 43.7 | 47.8 |
| Max. operation height | m | 47.7 | 51.8 |
| Max. operation depth | m | 34.3 | 39.8 |
| Open height of boom | mm | 9065 | 9400 |
| Distance between front landing legs | mm | 9780 | 10295 |
| Diameter of delivery pipe | mm | 125 | 125 |
| Quantity of boom | 5 | 5 | |
| Rotary angle of each boom | ° | 91/180/180/180/270 | 90/180/180/180/270 |
| Wire line control distance | m | 33 | 33 |
| Remote control distance | m | 200 | 200 |
| Max. speed | km/h | 89 | 80 |
| Min. turn radius | mm | 11900 | 12500 |
| Brake distance | m | 10 | 10 |
| Chassis model | ISUZU CYH51Y | ISUZU CYH51Y | |
| Max. engine output power | kw | 287(2200r/min) | 259(2100r/min) |
| Max. engine output torque | n.m | 1863(1100r/min) | 1460(1100r/min) |
| Max, gradient ability | % | 37 | 37 |
| Fuel consumption | L/100km | 38 | 38 |
| Out dimension (L*W*H) | mm | 13300*2500*4000 | 13990*2500*4000 |
| Total weight | kg | 38000 | 42000 |

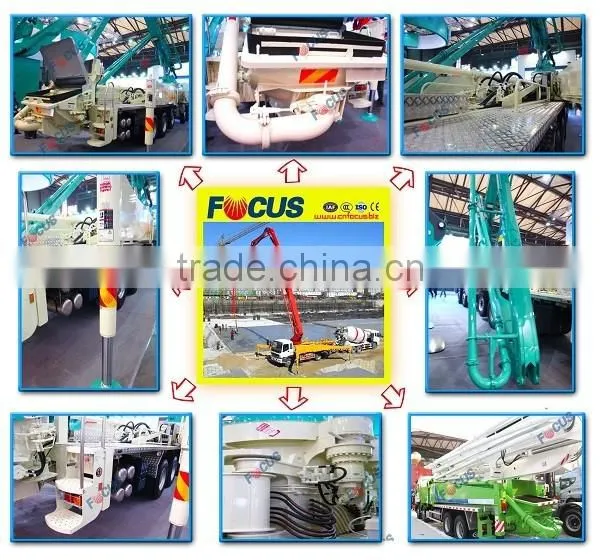

Product details of Focus Boom Concrete Pump:
Thanks for visiting, by the time you are paying attention to us, our boom concrete pumps are being delivered /distributed to the world everyday - it'll be such a great honor if you can join us.
