Advantages of Concrete mixer pump on truck:
1.Flexible mixer and batcher, keep truck balance, convenient maintenance.
2.Increase the feeding speed and production efficiency.
3.Reduce labor intensity and save manpower.
Featurers of Concrete mixer pump on truck:
1.Truck mounted concrete mixer pump, high efficiency concrete machine.
2.This machine can pump 70 meters in vertical and 300 meters in horizontal.
3.Max mixing output is 25 m3/h.
4.Electric motor, can use electricity power supply or diesel genset(diesel generator).
5.With the weighting system for aggregate, the quality of concrete is better.
6.It can be put on a truck, easy to move. The truck is normally prepared by user.
Parameter of Concrete mixer pump on truck:
Pumping System | ||||||||
Pump Model |
/ |
40.7.37S |
Main Motor |
kw |
37 |
|||
Max. Theo. Pumping Output |
m3/h |
40 |
Main Pump Brand |
/ |
Flutek Kawassik K3V112 |
|||
System Pressure |
Mpa |
28 |
Outlet Pressure |
Mpa |
7 |
|||
Delivery CylinderxStroke |
mm |
Φ200x100 |
Main Oil Cylinder/Rod*Stroke |
mm |
Φ100/Φ70*1000 |
|||
Distribute Valve |
/ |
S Valve |
Diameter of Outlet |
mm |
Φ200 |
|||
Oil Tank |
L |
300 |
Delivery Pipe |
mm |
Φ125 |
|||
Aggregate Size |
mm |
Pebble:40 Crushed Stone:30 |
Slumps |
cm |
12-23 |
|||
Generator |
kw |
100 |
Generator Brand |
/ |
Cummins |
|||
Mixing System | ||||||||
Mixer |
/ |
JS500 |
Mix Motor |
kw |
18.5 |
|||
Max. Theo. Mixing Output |
m3/h |
25 |
Hoist Motor |
kw |
5.5 |
|||
Incharge HopperxFilling Height |
Lxmm |
800x1200 |
Water Pump |
kw |
0.75 |
|||
Discharge Hopper Capacity |
L |
500 |
Vibrator |
kw |
0.75x2 |
|||
Flexible |
/ |
Yes |
|
|
|
|||
Batching System | ||||||||
Hopper Capacity |
m3 |
1.8 |
Compressor |
bar |
3 |
|||
Hydraulic Outrigger |
pcs |
2 |
Flexible |
/ |
Yes |
|||
Frame | ||||||||
LxW |
mm |
4000x2200 |
Hydraulic Outrigger |
pcs |
4 |
|||

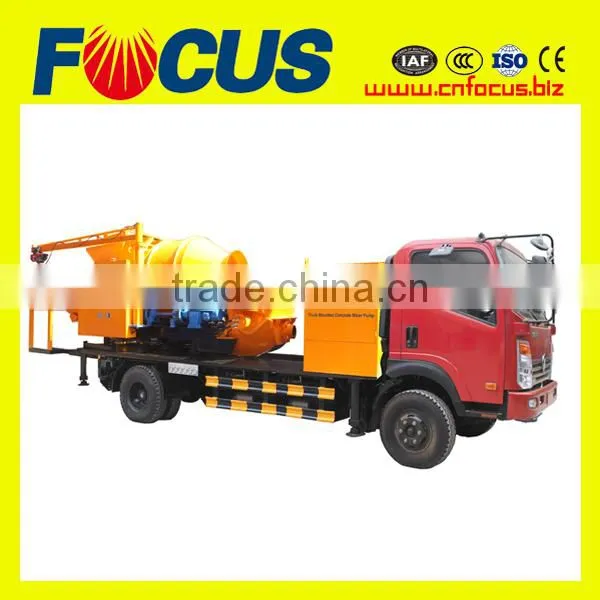

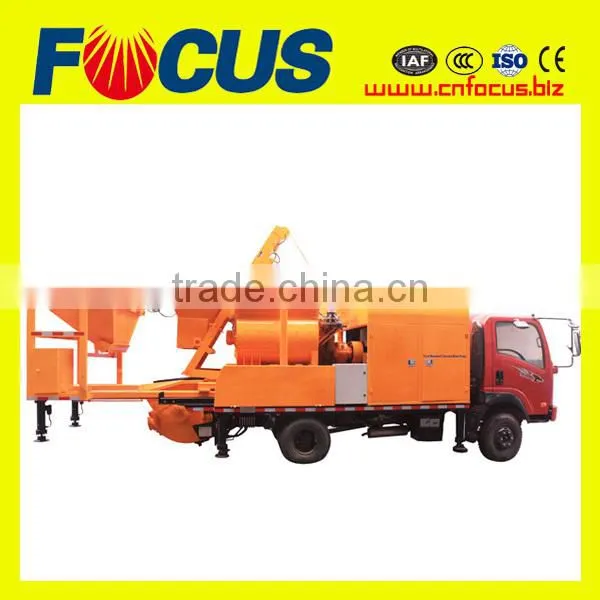

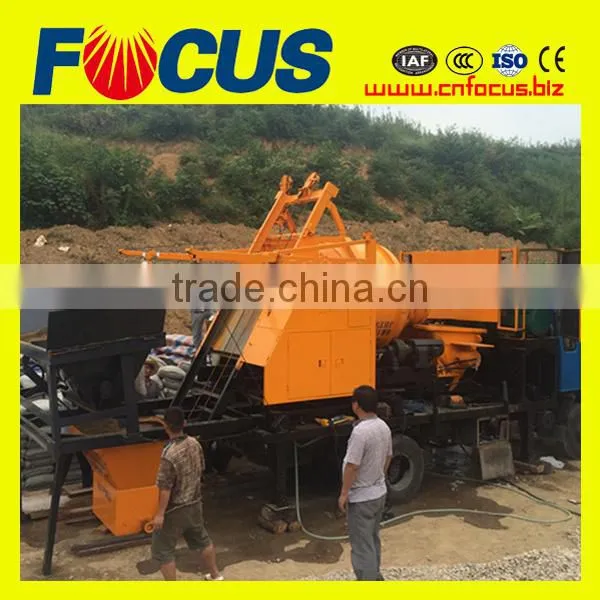

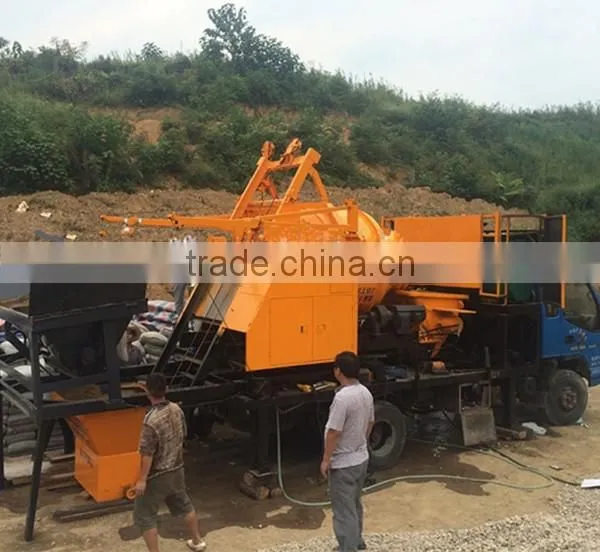

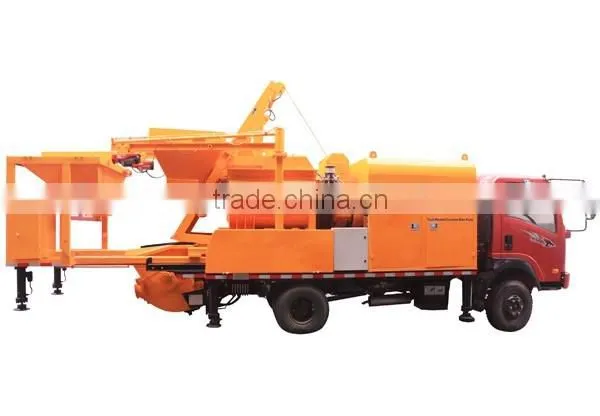

Photos of Concrete mixer pump on truck:
