Specifications
boiler of Concrete pole plant1.with 20 years of experiences
2.Perfect after-sale services
3.ISO,CE certificated
Why would our clients choose FOCUS boiler for concrete pole plant?
Based on 20 years of experience, FOCUS boiler for concrete pole plant adopt advanced technology and quality control system; Our concrete pole plant got good reputations from the customers home and abroad. Besides, FOCUS boiler for concrete pole plant adopts modular structure design, which maintains convenient installation& removal and safe, comfortable operation, with good effect and high efficiency.
What are the main features of FOCUS concrete pole plant?
1) Equipped with speed-regulating motor and controller, our concrete pole plant runs steadily.
2) Because of well-sealing bearing, its’ noise is very low. The whole concrete pole plant is operated comfortably and safely;
3) Box-typed, welded by quality structural steel, the base must be durable and easy to be installed.
4) Perfect welding technology, ensure our steel mould wall smooth, eliminate the uneven traces of the rivet hole; The concrete poles appearance will be improved significantly.

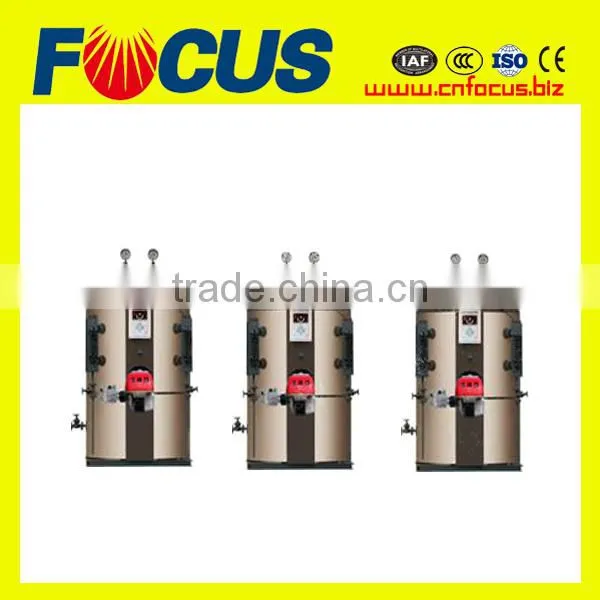

Technical Indexs of boiler:
Model Items | LSS0.03-0.4-Y/Q | LSS0.05-0.7-Y/Q | LSS0.1-0.7-Y/Q | LSS0.2-0.7-Y/Q | LSS0.3-0.7-Y/Q | |
Boiler horsepower | 1.9 HP | 3.2 HP | 6.4 HP | 12.8 HP | 19 HP | |
Rated steam output | 30 KG/HOUR | 50 KG/HOUR | 100 KG/HOUR | 200 KG/HOUR | 300 KG/HOUR | |
Maximum working pressure | <0.4MPa / 58PSI | <0.7MPa / 102PSI | <0.7MPa / 102PSI | <0.7MPa / 102PSI | <0.7MPa / 102PSI | |
Saturated steam temperature | <140°C | <172°C | <172°C | <172°C | <172°C | |
Material of main body | 20# carbon steel | 20# carbon steel | 20# carbon steel | 20# carbon steel | 20# carbon steel | |
Thickness of main body | 6mm | 8mm | 8mm | 10mm | 10mm | |
Thermal efficiency | >89% | >89% | >89% | >89% | >89% | |
Fuel consumption | 0# diesel | 2kg/h | 3.4kg/h | 6.8kg/h | 13.6kg/h | 20.2kg/h |
Natural gas | 2.4Nm3/h | 4Nm3/h | 8Nm3/h | 16Nm3/h | 24Nm3/h | |
LPG | 1.6kg/h | 2.7kg/h | 5.4kg/h | 10.8kg/h | 16kg/h | |
Dimensions after | Φ | 780mm | 820mm | 980mm | 1050mm | 1050mm |
H | 1150mm | 1290mm | 1810mm | 1990mm | 1990mm | |
Packing dimensions | L | 650mm | 900mm | 890mm | 950mm | 950mm |
W | 850mm | 770mm | 1050mm | 1050mm | 1050mm | |
H | 1150mm | 1300mm | 1700mm | 1940mm | 1940mm | |

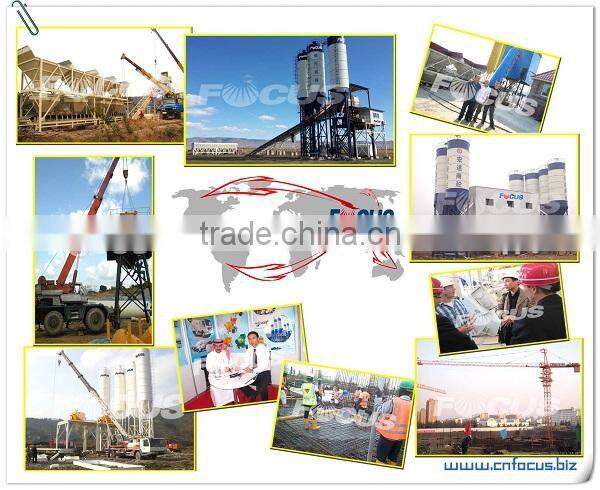

Our concrete pole plant has been purchased, installed and operated all over the world:
Thanks for visiting, by the time you are paying attention to us, our concrete pole plant is being delivered /distributed to the world everyday - it’ll be such a great honor if you can join us:
