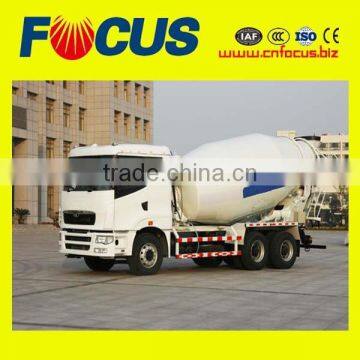

Why would our clients choose FOCUS 8 cubic meters concrete mixer truck?
- HINO chassis are available in FOCUS 8 cubic meters concrete mixer truck;
- international famous brand hydraulic drive fits are adopted in our 8 cubic meters concrete mixer truck;
- integral type oil tank, oil cooler and electrical fan are adopted with simple and reliable system;
- multi-points control system enables the 8 cubic meters concrete mixer truck operation to be easier, safer and more comfortable;
- air pressure water supply system with large capacity water tank.
What are the main features of FOCUS 8 cubic meters concrete mixer truck?
- Oil tank and radiator are imported top brand combination with temperature control switch and vacuum meter while oil change and maintenance are easily realized for our 8 cubic meters concrete mixer truck.
- Pump, motor and reducer in 8 cubic meters concrete mixer truck are all original imported AMERICA static pressure driving system with big driving torque and high efficiency.
- Imported hose and connector are separately from GERMANY EMB and ITALY MANULI. 8 cubic meters concrete mixer truck
- Hose buckling device is totally from GERMANY HYDAC.
- Stirring vat auto-welding improves 8 cubic meters concrete mixer truck production efficiency and makes welding quality finer.
- Tri-axial design and three-section double logarithm helix surface design can ensure concrete speedy feeding and discharge and low surplus rate in our HINO mixer truck .
- Fault indicator for the 8 cubic meters concrete mixer truck can check all welding seams of stirring vat to ensure good welding quality after it’s being welded by auto-welding machine.
- Truck frame adopts tri-axial lineation machining, and adopts laser check to ensure an accurate installation position.
FOCUS concrete mixer truck technical data
Model |
8m³ |
9m³ |
10m³ |
12m³ |
14³ |
|
|
Truck |
Chassis |
HINO |
HINO |
HINO |
HOWO |
HOWO |
Length(mm) |
8550 |
9200 |
9800 |
10150 |
10150 |
|
Width(mm) |
2490 |
2490 |
2495 |
2496 |
2496 |
|
Height(mm) |
3800 |
3800 |
3830 |
3900 |
3960 |
|
Weight(kg) |
25000 |
25000 |
31000 |
31000 |
31000 |
|
Load weight(kg) |
12600 |
13000 |
15650 |
16370 |
16700 |
|
Max.speed(kg/h) |
75 |
72 |
90 |
90 |
50 |
|
Oil consumption(L/100km) |
32 |
34 |
38 |
38 |
38 |
|
|
Engine |
Engine model |
WD615.69 |
||||
Engine type |
6-cylinder direct injection diesel engine with water cooling |
|||||
Engine power(kg) |
247(2200r/min) |
247(2000r/min) |
||||
Max.torque(N.M) |
1250(1600r/min) |
|||||
|
Working device |
Drum volume(m³) |
12.8 |
14.7 |
17.05 |
19.65 |
20.1 |
Mixing volume(m³) |
8 |
9 |
10 |
12 |
14 |
|
