ISO Standard 14 Cubic HOWO Brand Concrete Mixer Truck With 6-Cylinder

ISO Standard 14 Cubic HOWO Brand Concrete Mixer Truck With 6-Cylinder thumbnail-1
ISO Standard 14 Cubic HOWO Brand Concrete Mixer Truck With 6-Cylinder thumbnail-2
ISO Standard 14 Cubic HOWO Brand Concrete Mixer Truck With 6-Cylinder thumbnail-3
ISO Standard 14 Cubic HOWO Brand Concrete Mixer Truck With 6-Cylinder thumbnail-4
ISO Standard 14 Cubic HOWO Brand Concrete Mixer Truck With 6-Cylinder thumbnail-5
ISO Standard 14 Cubic HOWO Brand Concrete Mixer Truck With 6-Cylinder thumbnail-6
ISO Standard 14 Cubic HOWO Brand Concrete Mixer Truck With 6-Cylinder photo-1
ISO Standard 14 Cubic HOWO Brand Concrete Mixer Truck With 6-Cylinder photo-2
ISO Standard 14 Cubic HOWO Brand Concrete Mixer Truck With 6-Cylinder photo-3
ISO Standard 14 Cubic HOWO Brand Concrete Mixer Truck With 6-Cylinder photo-4
ISO Standard 14 Cubic HOWO Brand Concrete Mixer Truck With 6-Cylinder photo-5
ISO Standard 14 Cubic HOWO Brand Concrete Mixer Truck With 6-Cylinder photo-6
US$ 55,000 - 68,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Henan, China
Brand Name:
FOCUS
Contact Supplier Request Quote Chat Now
Zhengzhou Focus Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Henan, China
Brand Name FOCUS
Model Number 14m3
Weight 31000kg
Dimension(L*W*H) 10150*2496*3960mm
Power(W) 247kw
Certification ISO9001:2008
Warranty 12 Months
After-sales Service Provided Engineers available to service machinery overseas

ISO Standard 14 Cubic HOWO Brand Concrete Mixer Truck with 6-Cylinder





1.  Product Specification

Model 8m³ 9m³ 10m³ 12m³ 14³




Truck 		Chassis HINO HINO HINO HOWO HOWO
Length(mm) 8550 9200 9800 10150 10150
Width(mm) 2490 2490 2495 2496 2496
Height(mm) 3800 3800 3830 3900 3960
Weight(kg) 25000 25000 31000 31000 31000
Load weight(kg) 12600 13000 15650 16370 16700
Max.speed(kg/h) 75 72 90 90 50
Oil consumption(L/100km) 32 34 38 38 38

Engine 		Engine model WD615.69
Engine type 6-cylinder direct injection diesel engine with water cooling
Engine power(kw) 247(2200r/min) 247(2000r/min)
Max.torque(N.M) 1250(1600r/min)
Working
device 		Drum volume(m³) 12.8 14.7 17.05 19.65 20.1
Mixing volume(m³) 8 9 10 12 14

FOCUS concrete truck mixer:
1.HINO,HOWO chassis available;
2.Germany ZFP reducer, 12 months warranty;
3.ISO and CE certified concrete truck mixer.

2. Product Detail
ISO Standard 14 Cubic HOWO Brand Concrete Mixer Truck with 6-CylinderISO Standard 14 Cubic HOWO Brand Concrete Mixer Truck with 6-CylinderISO Standard 14 Cubic HOWO Brand Concrete Mixer Truck with 6-Cylinder

What are the main features of FOCUS Concrete Truck Mixer?

  1. Oil tank and radiator are imported top brand combination with temperature control switch and vacuum meter while oil change and maintenance are easily realized for our mixer truck.

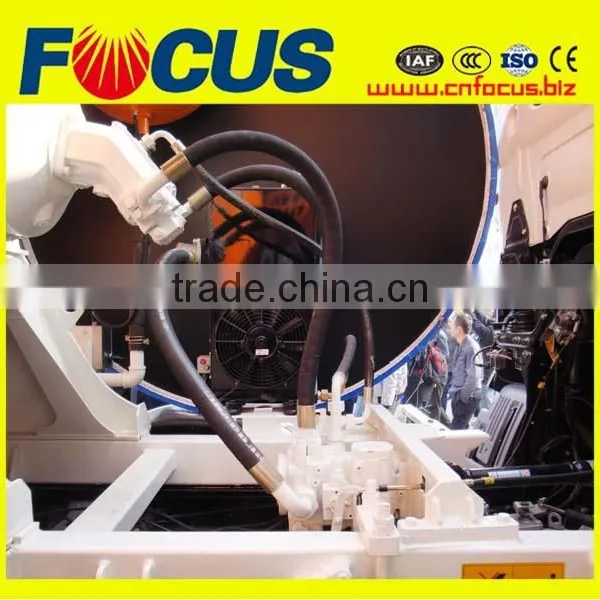

  2. Pump, motor and reducer in FOCUS mixer truck are all original imported AMERICA static pressure driving system with big driving torque and high efficiency.
  3. Imported hose and connector are separately from GERMANY EMB and ITALY MANULI.
  4. Hose buckling device is totally from GERMANY HYDAC.
  5. Stirring vat auto-welding improves FOCUS mixer truck production efficiency and makes welding quality finer.

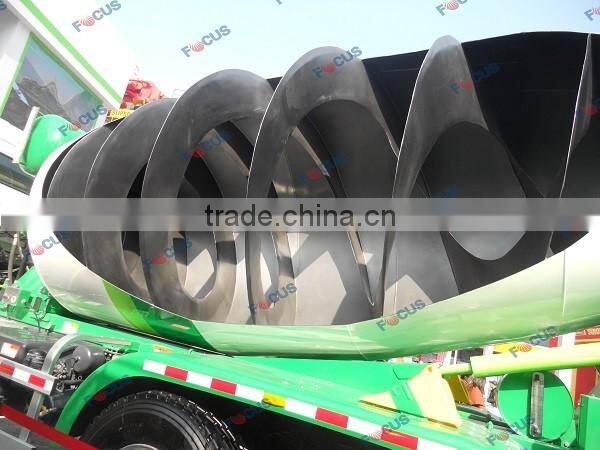

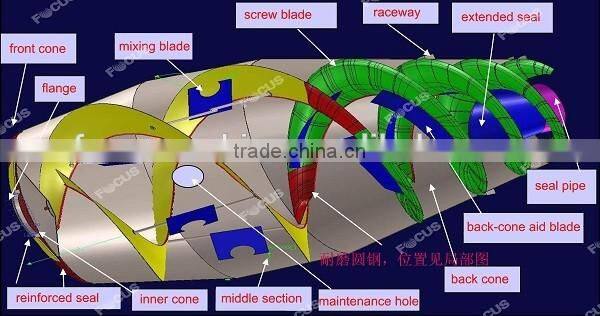

  6. Tri-axial design and three-section double logarithm helix surface design can ensure concrete speedy feeding and discharge and low surplus rate in our mixer truck.
  7. Fault indicator for the mixer truck can check all welding seams of stirring vat to ensure good welding quality after it's being welded by auto-welding machine.
  8. Truck frame adopts tri-axial lineation machining, and adopts laser check to ensure an accurate installation position.

ISO Standard 14 Cubic HOWO Brand Concrete Mixer Truck with 6-Cylinder

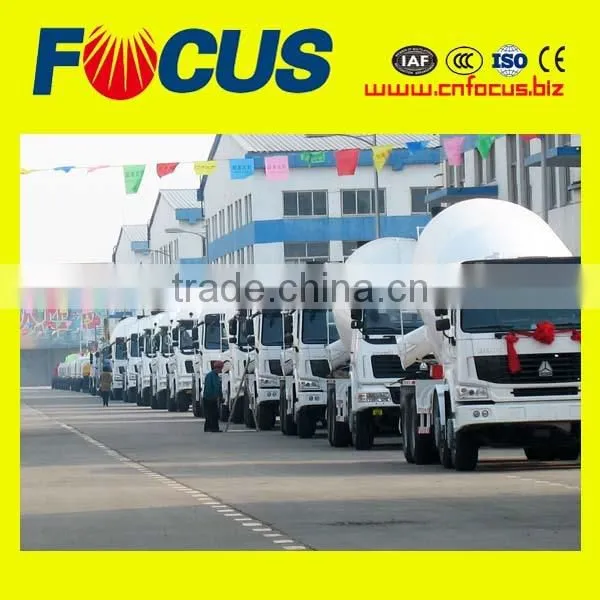

Each second you are paying visits to our webpage, our truck mixers are being purchased, installed and operated all over the world:
ISO Standard 14 Cubic HOWO Brand Concrete Mixer Truck with 6-Cylinder
Thanks for visiting, by the time you are paying attention to us, our truck mixers are being delivered /distributed to the world everyday - it'll be such a great honor if you can join us.

For more information please visiting us @
