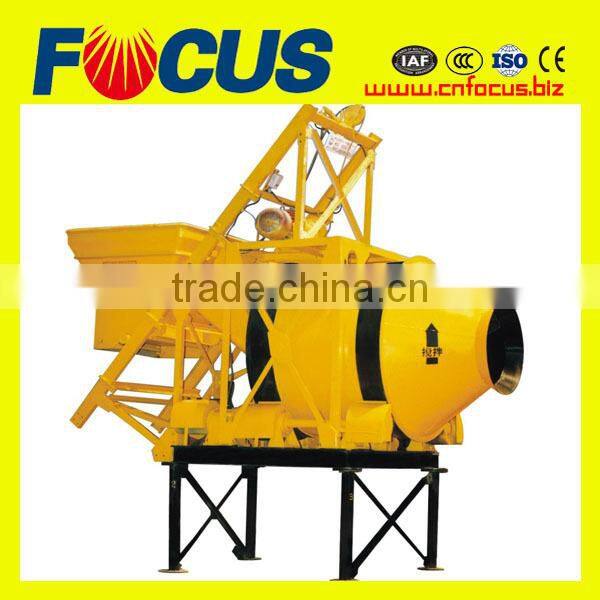

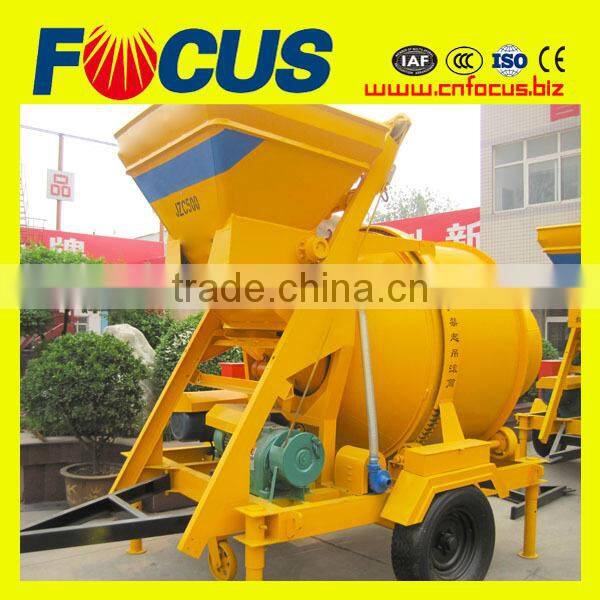

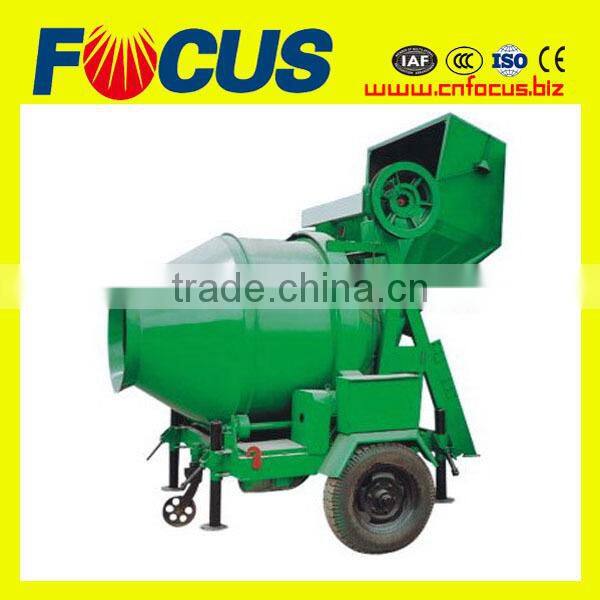

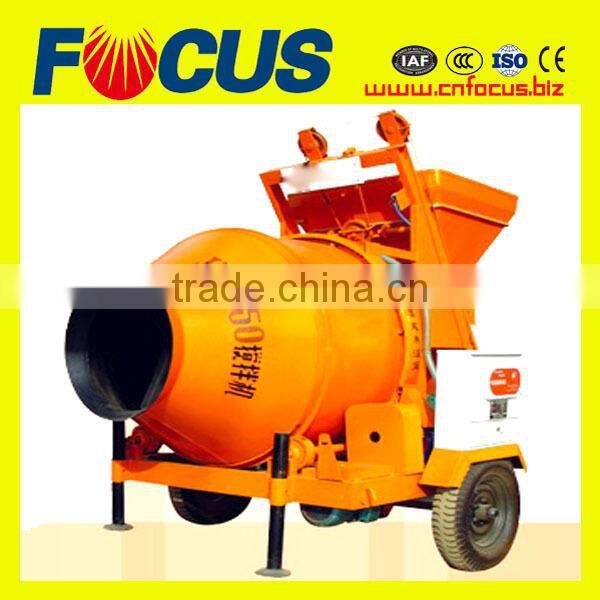

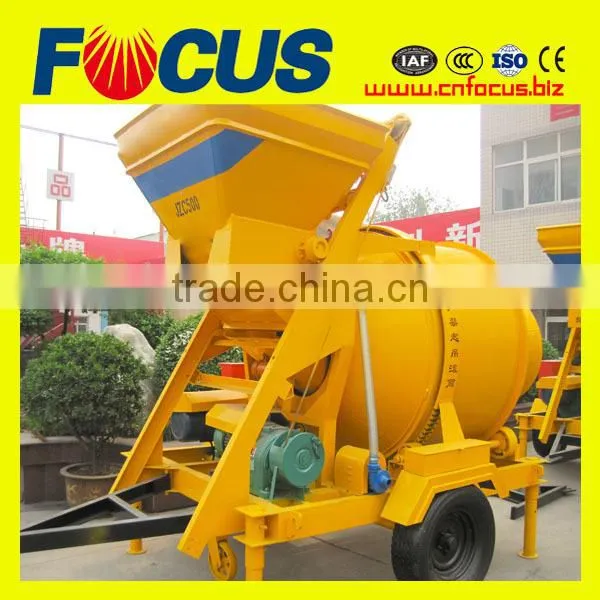

JZC series portable rotary concrete mixer with climb bucket:
Introduction of JZC portable rotary concrete mixer:
FOCUS JZC Series portable rotary concrete mixer is a kind of reversal discharging mobile concrete mixer, which can mix semi-rigid and plastic concrete.
The mixing drum is gear-driven or friction-driven and has characteristics of balance running, simple operation and high mixing quality. FOCUS JZC portable rotary concrete mixer can be composed as a medium-sized mixing station matched with feeding and weighing equipments, widely used in different kinds of construction projects, applicable in general construction sites, roads, bridges and hydropower projects, especially for urban residential construction.
Characteristics of JZC portable rotary concrete mixer:
1. Leading professional design and manufacture;
2. Gear/hydraulic drive portable concrete mixer
3. Lifting motor aggregate feeding
4. High quality and reliable performance;
5. Safe and long service life;
6. Sell well at home and abroad.
Sizes:
JZC:Gear ring type reversal discharging
JZC250/350:Electric Motor with climb bucket(lift bucket)
JZC500:Electric Motor with climb bucket(lift bucket)
JZC250/350:Diesel Motor with skip bucket (tipping bucket)
JZM:Rubber Friction type reversal discharging
JZM750 concrete mixer is driven by friction between rubber covered roller and the rotary drum, more powerful and efficient than gear type used in JZC350 and JZC500, to meet the demand of high production capacity.
JZM750
FOCUS JZC series rotary concrete mixer main parameters:
| Parameter | JZC250 Electric | JZC250 Diesel | JZC350 Electric | JZC350 Diesel |
Working performance | Output volume | 250L | 250L | 350L | 350L |
Input volume | 320L | 320L | 560L | 560L | |
Productivity | 6-8cbm/h | 6-8cbm/h | 10-14cbm/h | 10-14cbm/h | |
Drum rotation | 17r/min | 17r/min | 14r/min | 14r/min | |
Aggregate diameter | 60mm | 60mm | 60mm | 60mm | |
Water supply accuracy | 2% | 2% | 2% | 2% | |
motors | Mixing motor | 4kw | 4kw | 5.5kw | 5.5kw |
Lifting motor |
|
| 4.5kw |
| |
Water motor | 0.55kw |
| 0.55kw |
| |
specification | Tire | 6.50-16 | 6.50-16 | 6.50-16 | 6.50-16 |
Max. trailing speed | 20km/h | 20km/h | 20km/h | 20km/h | |
Loading(sets/40HQ) | 6sets | 6sets | 5sets | 5sets | |
Weight | 1300kg | 1300kg | 1950kg | 1950kg |

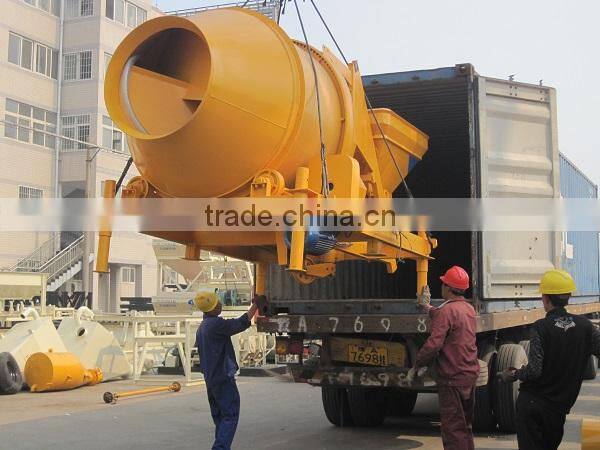

Loading of JZC Series Rotary Concrete Mixer:
