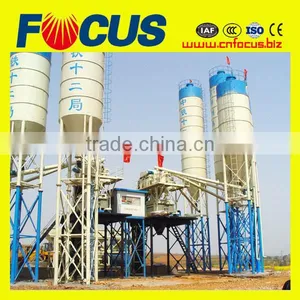

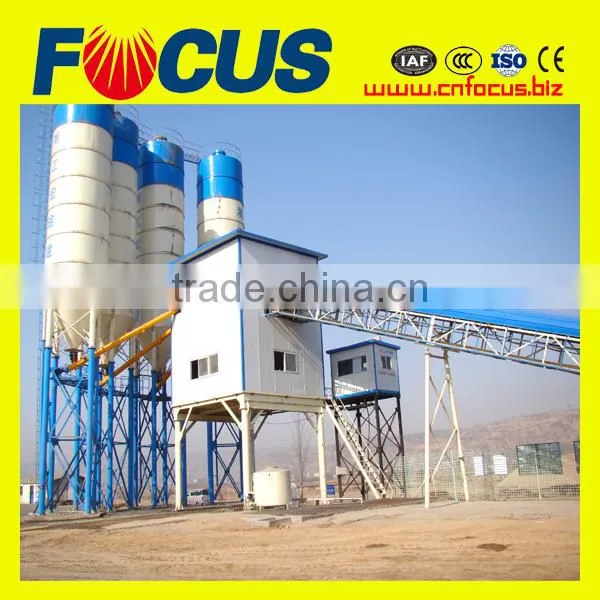

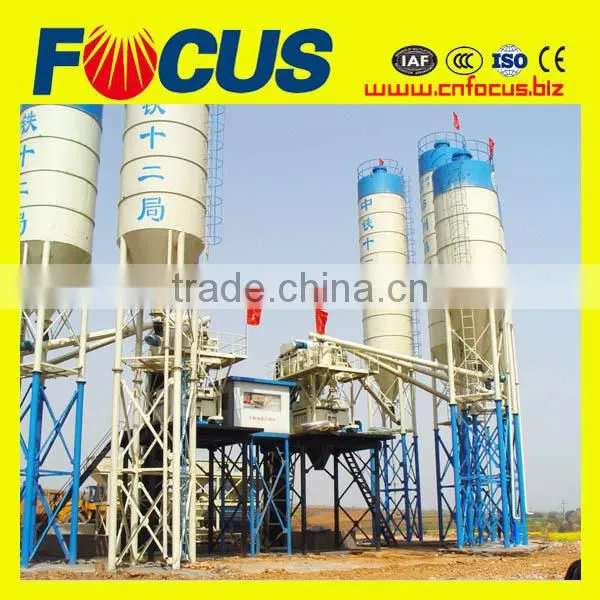

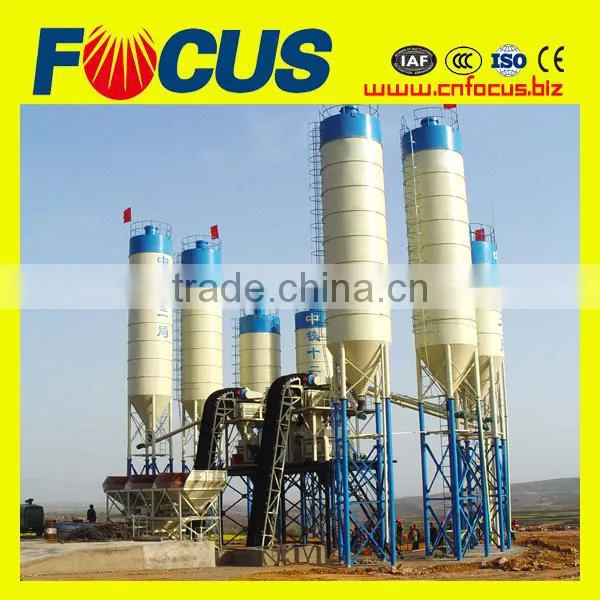

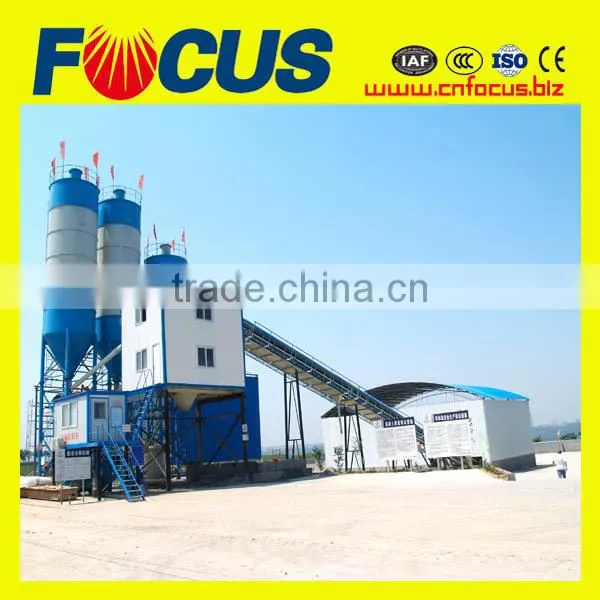

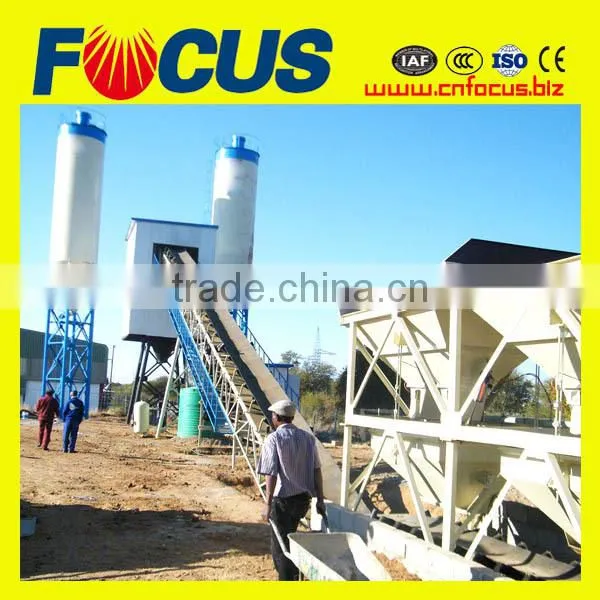

60m3/H Stationary Concrete Batching Plant, Hzs60 Concrete Mixer Plant
US$ 30,000 - 90,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Power Type:
Electric
Place of Origin:
Henan, China
Payment & Shipping
Payment Methods:
Port of Shipment:
any China port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hot Sale Hzs60 Belt Conveyor Concrete Batching Plant of 60m3/HUS$ 30,000 - 90,000MOQ: 1 Set -
Ready Mixed Concrete Mixing Plant, Hzs60 Belt Concrete Batching PlantUS$ 50,000 - 90,000MOQ: 1 Set
-
Precast Concrete Plant Equipment, Automatic 90m3/H Fixed Concrete Batching Plant With Belt ConveyorUS$ 38,000 - 128,000MOQ: 1 Set
-
Belt Type Hzs90 Concrete Batching Plant With Sicoma Concrete MixerUS$ 38,000 - 128,000MOQ: 1 Set
-
Best Price Hzs90 Belt Conveyor Concrete Batching Plant of 90m3/HUS$ 38,000 - 128,000MOQ: 1 Set
Condition
New
Power Type
Electric
Place of Origin
Henan, China
Brand Name
FOCUS
Model Number
HZS60
Power(W)
110kw
Dimension(L*W*H)
33.8m*14.8m*19.4m
Weight
46t
Certification
ISO9001:2008
Warranty
12 Months
After-sales Service Provided
Engineers available to service machinery overseas
60m3/H Stationary Concrete Batching Plant, Hzs60 Concrete Mixer Plant
FOCUS Belt conveyor concrete batching plants adopt the twin-horizontal shaft, which can produce many kinds of concrete such as plastic and dry concrete.
The aggregate adopt the accumulated or separate measurement. The cement, water, additive adopt the weighing hopper to measure, which can reach a very accurate measurement.
It is easy to operate. Because all the parts are controlled by the computer.
Advantages of FOCUS Belt conveyor concrete batching plant:
- Competitive price and high quality
- Good after-sale service;
- ISO and CE certified with 12 months warranty
- Reliable performance
Parameters of FOCUS Belt conveyor concrete batching plant:
| Model | HZS60 | HZS90 | HZS120 | HZS180 | HZS240 |
| Theoretical output(m³/h) | 60 | 90 | 120 | 180 | 240 |
| Mixer model | JS1000 | JS1500 | JS2000 | JS3000 | JS4000 |
| Output per batch(m³) | 1 | 1.5 | 2 | 3 | 4 |
| Aggregate batcher | PLD2400 | PLD2400 | PLD3200 | PLD4800 | PLD6400 |
| Total power(KW) | 110 | 145 | 160 | 205 | 340 |
| Aggregate weighing accuracy(%) | (0-3000)kg±2% | (0-4000)kg±2% | (0-4500)kg±2% | (0-4500)kg±2% | (0-6000)kg±2% |
| Cement weighing accuracy(%) | (0-600)kg±1% | (0-1000)kg±1% | (0-1200)kg±1% | (0-1800)kg±1% | (0-2400)kg±1% |
| Water weighing accuracy(%) | (0-400)kg±1% | (0-400)kg±1% | (0-600)kg±1% | (0-800)kg±1% | (0-1000)kg±1% |
| Fly ash weighing accuracy(%) | (0-400)kg±1% | (0-400)kg±1% | (0-600)kg±1% | (0-800)kg±1% | (0-700)kg±1% |
| Additive weighing accuracy(%) | (0-40)kg±1% | (0-40)kg±1% | (0-50)kg±1% | (0-50)kg±1% | (0-120)kg±1% |
| Discharge height(m) | 3.8-4.2 | ||||
| Max. aggregate dia.(mm) | 80-100 | ||||
| Cement silo and screw conveyor | On request | ||||
| Total weight (ton) | 46 | 60 | 71 | 87 | 112 |
| Overall dimension(LxWxH)(m) | 33.8x14.8x19.4 | 38x16x19.4 | 44x18x19.4 | 58.5x23.5x22 | 60x25x22 |
Product details of FOCUS Belt conveyor concrete batching plant:
What are the main features of FOCUS Belt conveyor concrete batching plant?

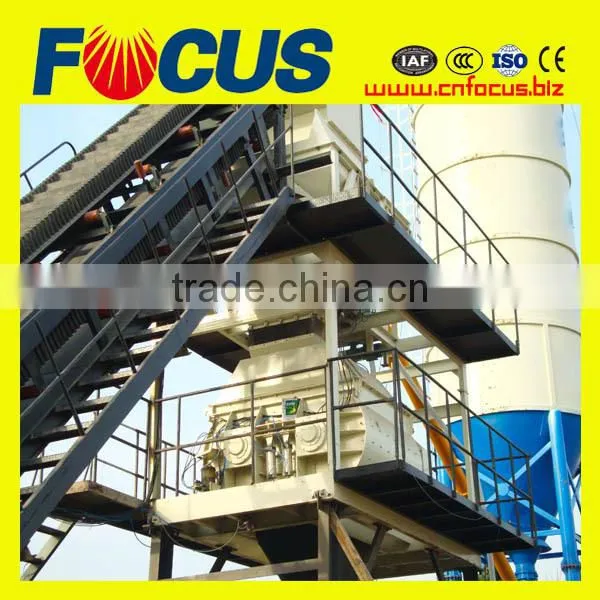

- Adopting twin-shaft compulsory concrete mixer, FOCUS concrete batching plant mixes evenly and rapidly, achieving good mixing effect for all kinds of dry, semi-dry and plastic concrete;
- Compact-structured planetary gear was adopted in our concrete batching plant to ensure smooth, speedy and efficient transmission;
- Concrete batcher can be designed as underground, partially underground or fully-above ground, 3-6 hoppers are pneumatically controlled by computer with fast and accurate instruct, whole job can be done in separate or accumulative models;
- Aggregate belt conveyor is truss-framed for easy assembly, inclination angle is normally less than 20 degrees, however, it can be up to 45°by adopting through(groovy) belt when the ground area is limited for the concrete batching plants;
- Three-point suspension sensors equipped to guarantee accurate and fast powder and liquid weighing;
- Dust collection system mainly aims at dealing with dust generated in the process of loading the mixer and pumping powder into the powder tank, the whole batching plant is all in closed state;
- UPS, stable performance Siemens PLC, high speed and precision weighing unit module combined with our professional control and monitoring software;
- Full automatic and easy operated production process of material measurement, transfer, mixing and discharging.
- Heating system and ice plant could be adopted into this concrete plant in severely cold and hot environment.
Thanks for visiting, by the time you are paying attention to us, our concrete batching plants are being delivered /distributed to the world everyday - it'll be such a great honor if you can join us.
For more information please visiting us @
