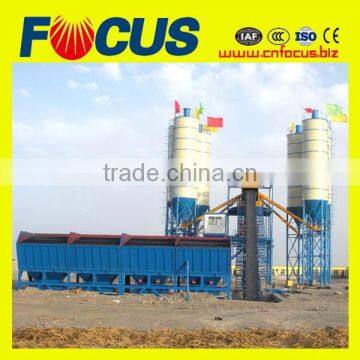

Efficient Hzs120 Belt Converyor Concrete Batching Plant with Computer Control
HZS series concrete batching plant, which is mandatory, and high-efficient equipment to produce plastic, dry-hard concrete, high production efficiency, and is widely used in large and medium-sized construction, road and bridge engineering, as well as the production of concrete products precast plant, ideal equipment for the production of commodity concrete.

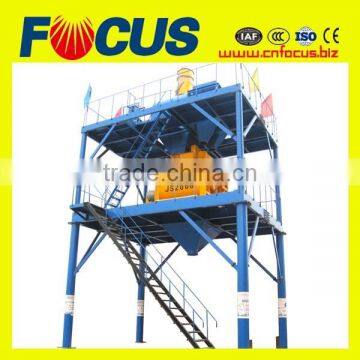

The mixing system adopts JS series twin-shaft mandatory mixer with good mixing homogeneity, short mixing time, long service time spare parts and easy for client inspecting and maintenance.
It also adopts new-design of electrical weighing system that includes computer control, digital display, etc. This kind of system also is equipped buffered device and auto-add function when weighing deflection, that will make sure the measurement accurate and timely.

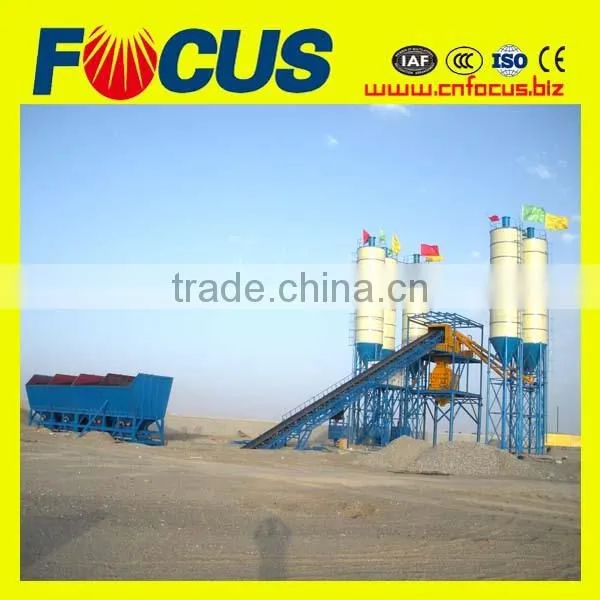

Aggregate feeding system adopts big width belt conveyor, is equipped ladder for worker maintenance or service and ideal for the majority of construction unit to produce high-quality concrete.
Advantages of Focus Belt Conveyor concrete batching plant:
1. Competitive price & high quality
2. Good after-sale service
3. ISO&CE certified with 1 year warranty
4. Reliable perfoemance
Parameters of FOCUS Belt Conveyor concrete batching plant:
| Model | HZS60 | HZS90 | HZS120 | HZS180 | HZS240 |
| Theoretical output(m³/h) | 60 | 90 | 120 | 180 | 240 |
| Mixer model | JS1000 | JS1500 | JS2000 | JS3000 | JS4000 |
| Output per batch(m³) | 1 | 1.5 | 2 | 3 | 4 |
| Aggregate batcher | PLD2400 | PLD2400 | PLD3200 | PLD4800 | PLD6400 |
| Total power(KW) | 110 | 145 | 160 | 205 | 340 |
| Aggregate weighing accuracy(%) | (0-3000)kg±2% | (0-4000)kg±2% | (0-4500)kg±2% | (0-4500)kg±2% | (0-6000)kg±2% |
| Cement weighing accuracy(%) | (0-600)kg±1% | (0-1000)kg±1% | (0-1200)kg±1% | (0-1800)kg±1% | (0-2400)kg±1% |
| Water weighing accuracy(%) | (0-400)kg±1% | (0-400)kg±1% | (0-600)kg±1% | (0-800)kg±1% | (0-1000)kg±1% |
| Fly ash weighing accuracy(%) | (0-400)kg±1% | (0-400)kg±1% | (0-600)kg±1% | (0-800)kg±1% | (0-700)kg±1% |
| Additive weighing accuracy(%) | (0-40)kg±1% | (0-40)kg±1% | (0-50)kg±1% | (0-50)kg±1% | (0-120)kg±1% |
| Discharge height(m) | 3.8-4.2 | ||||
| Max. aggregate dia.(mm) | 80-100 | ||||
| Cement silo and screw conveyor | On request | ||||
| Total weight (ton) | 46 | 60 | 71 | 87 | 112 |
| Overall dimension(LxWxH)(m) | 33.8x14.8x19.4 | 38x16x19.4 | 44x18x19.4 | 58.5x23.5x22 | 60x25x22 |
Product details of FOCUS Belt Conveyor concrete batching plant:
What are the main features of FOCUS Belt Conveyor concrete batching plant?
1. Adopting twin-shaft compulsory concrete mixer, FOCUS concrete mixing plant mixes evenly and rapidly, achieving good mixing effect for all kinds of dry, semi-dry and plastic concrete;
2. Compact-structured planetary gear was adopted in our concrete mixing plant to ensure smooth, speedy and efficient transmission;
3. Concrete batcher can be designed as underground, partially underground or fully-above ground, 3-6 hoppers are pneumatically controlled by computer with fast and accurate instruct, whole job can be done in separate or accumulative models;
4. Aggregate belt conveyor is truss-framed for easy assembly, inclination angle is normally less than 20 degrees, however, it can be up to 45°by adopting through(groovy) belt when the ground area is limited for the concrete mixing plants;
5. Three-point suspension sensors equipped to guarantee accurate and fast powder and liquid weighing;
6. Dust collection system mainly aims at dealing with dust generated in the process of loading the mixer and pumping powder into the powder tank, the whole mixing plant is all in closed state;
7. UPS, stable performance Siemens PLC, high speed and precision weighing unit module combined with our professional control and monitoring software;
8. Full automatic and easy operated production process of material measurement, transfer, mixing and discharging.
9. Heating system and ice plant could be adopted into this concrete plant in severely cold and hot environment.
Thanks for visiting, by the time you are paying attention to us, our concrete batching plants are being delivered /distributed to the world everyday - it'll be such a great honor if you can join us.
