ZL50 5 Ton Wheel Loader Zl50g

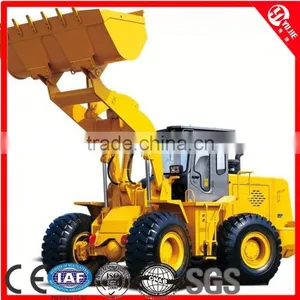

ZL50 5 Ton Wheel Loader Zl50g thumbnail-1
ZL50 5 Ton Wheel Loader Zl50g photo-1
US$ 40,000 - 60,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Brand Name:
Yujie
Model Number:
ZL50
Contact Supplier Request Quote Chat Now
Zhengzhou Changli Machinery Manufacturing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Brand Name Yujie
Model Number ZL50
Place of Origin Henan, China
Type Front Loader
Moving Type Wheel Loader
Dimension(Long * Breadth * High) 7450*3000*3400mm
Rated Load 5000KG
Certification CE,ISO,BV,SGS
Warranty 12 month
After-sales Service Provided Engineers available to service machinery overseas

5 ton wheel loader zl50g







Product Description







ChangLi is the best and the biggest construction machine brands in china and its export is the most , your best choice!





Main Specifications of 5 ton wheel loader zl50g:





Performance

1

rated load

5000kg

2

overall weight

17100kg

3

rated bucket capacity

3m3

4

maximum tractive force

152KN

5

maximum breakout force

≥170KN

6

maximum grade ability

30°C

7

maximum dump height

3150mm

8

maximum dump reach

1250mm

9

overall dimension (L*W*H)

7920*3050*3400mm

10

minimum turning radius

6640mm

Engine

11

model

Weichai Steyr WD615G.220

12

type

Lnline/water cooling/dry cylinder/  injection

13

No. of cylinder-bore/stroke

6-126*130mm

14

rated power

162kw--2400r/min

15

maximum torque

860N.m

16

min fuel-consume ratio

≤215g/kw.h

Transmission system

17

torque converter

YJ375

18

gearbox mode

Power shift normally engaged straight gear

19

gear shift

4 forward shift  4reverse shift

20

maximum speed

38km/h

Drive axles

21

main reducing spiral

bevel gear grade 1reduction

22

decelerating mode

planetary reduction,grade 1

23

wheel base (mm)

3200mm

24

wheel tread

2250mm

25

minimum ground clearance

450mm

 Hydraulic system

26

system working pressure

18MPa

27

boom lifting time

5.95 +-0.2s

28

total time

10.95+-0.5s

29

fuel tank capacity

300L

30

function of leveling automatically

yes

Brake system

31

service brake

air over hydraulic disc brake on 4 wheels

32

parking brake

manual parking brake

Tyre

33

type specification

23.5-25

34

front tyre pressure

0.4Mpa

35

rear tyre pressure

0.35Mpa

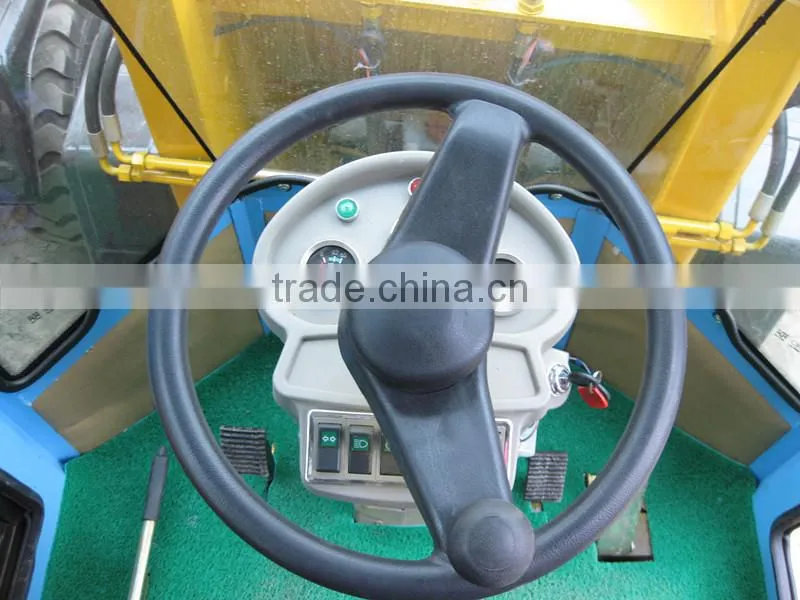

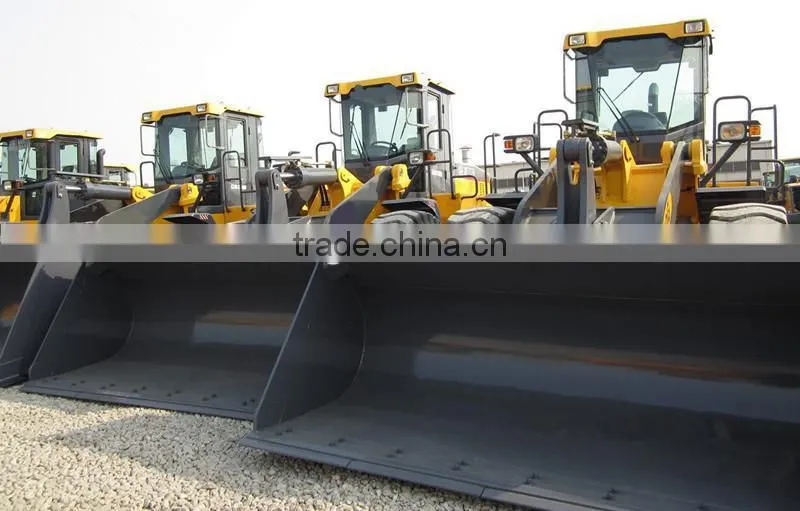

ZL50 Pictures

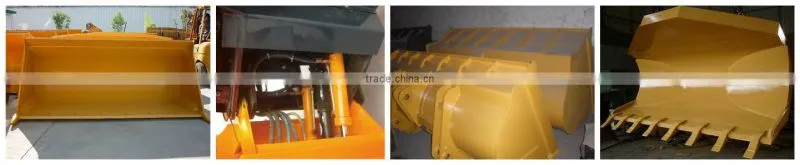

Optional components of 5 ton wheel loader zl50g

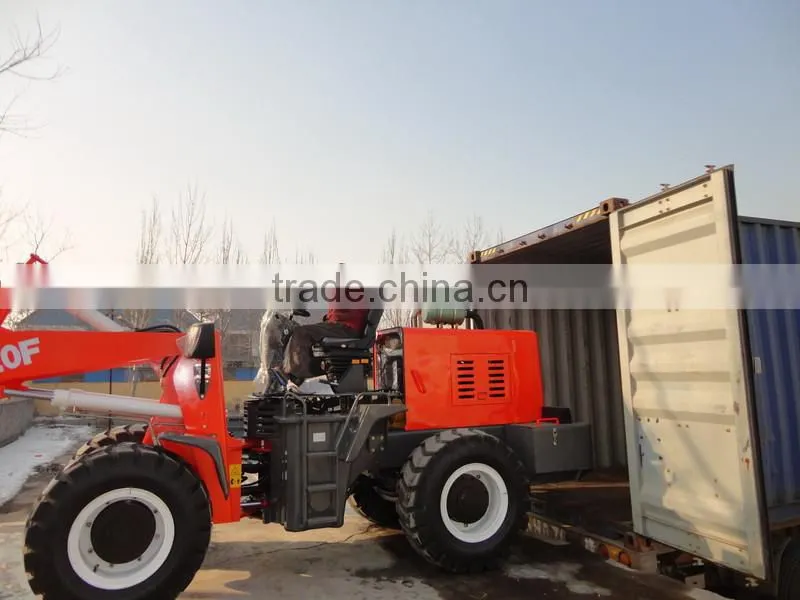

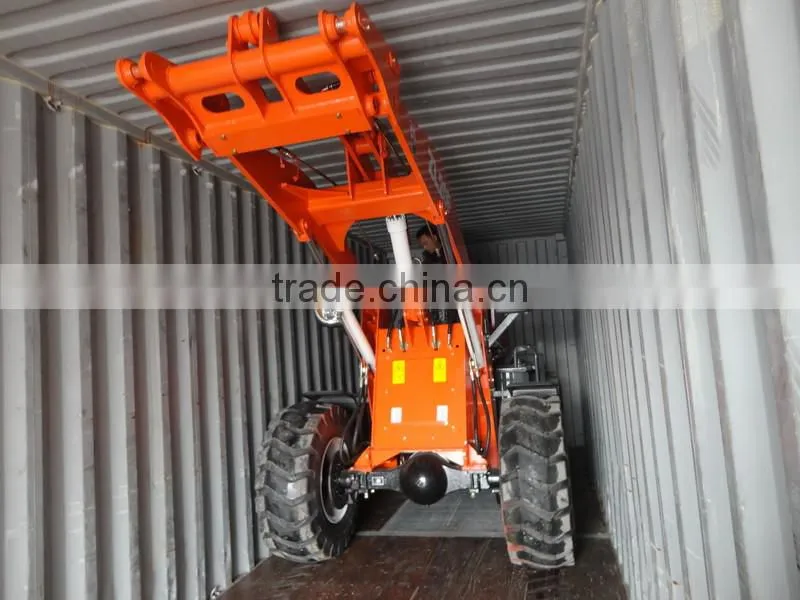

Packaging & Shipping






Our Services

   Our productions seeling well over the 30 countries!





Our products have been exported to Russia, Kazakhstan, Uzbekistan, Myanmar, Vietnam, Laos, Thailand, Pakistan,



Sir Lanka, Malaysia, Philippine, Indonesia, Japan, India, Iran, Ukraine, Australia, The United states, Argentina, Chili,



Paraguay, Egypt, Morocco, Botswana, Algeria, South Africa, Tunisia, Mozambique, Yemen, Ethiopia, Nigeria,



Ghana, etc, more than thirty countries and areas.

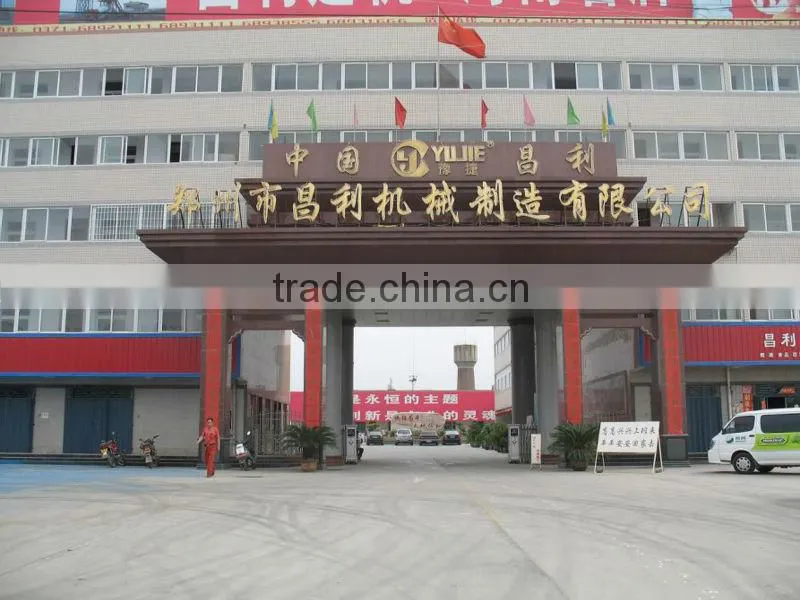

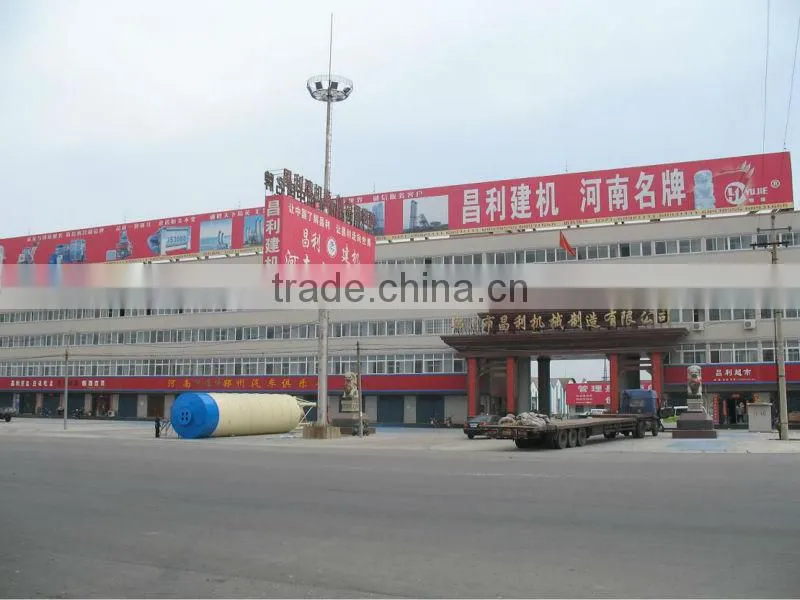

Company Information



Our certificates
