Technological process:
Saw the log--- steam and boil---rotary cut---carve cut---stoving and polishing-- selecting machine
--- chamfering machine---bunding machine---branding machine---packing machine
Introduction:
1. the specification of ice cream stick can be adjusted, by changing moulds. One production line has 3 sets carve-cutter. Of course, the user can collocate as their need.
2. the rotary cutter can not cut bubble wood, so advising to use birch or poplar wood
3. the log diameter exceed 400mm, the GD600 rotary cutter should be used.
4. Finished Products

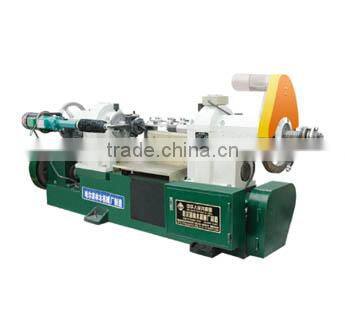

² Rotary Cutting Machine
This machine applies to process small diameter round wood material. It has computer controlling system, adjust easily, low noise, easy operation, good rigidity and high efficiency. It is widely used in wood processing machine.
Features:
Feeding part adopts ferrobronze and lead screw is made of 663# abrasion-proof material.
Adopt transducer ,PLC programming unit and other
high-performance numerical control components.The machine works stably and safely.
This machine is suitable to process birch,poplar,eucalyptus,pine and other wood mate.

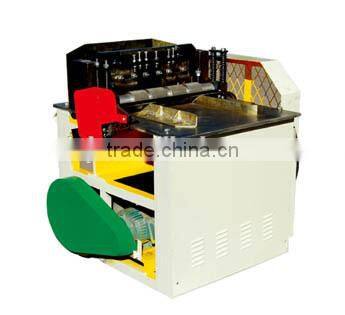

² Tri-Carved Cutting Machine
This machine is used to cut the wood board into certain size wood chips. The width and thickness of wood chips is adjustable. The machine installs safety protection system, it can protect the worker and ensure the machine operate smoothly.
Name |
Power (kw) |
Weight (kg) |
Dimension (m) |
|
Rotary cutter |
6.5 |
1800 |
2.0×0.8×8.8 |
|
Carve-Cutter(3sets) |
0.75 |
550 |
1.2×0.9×1.3 |
|
Polishing mahcine |
1.5 |
210 |
1.5×0.8×1.1 |
|
Grinding machine |
1.18 |
450 |
1.8×0.7×1.3 |
|
Branding Machine |
3 |
200 |
1.6*0.65*1.1 |
|
Baling Machine |
13 |
300 |
2.5×0.8×1.43 |
|
|
Remark: Above is the wooden ice cream production line. Capacity: 40-50 ten thousand/8 hours | ||||
