JZ Series Winch Air

JZ Series Winch Air thumbnail-1
JZ Series Winch Air photo-1
US$ 5,000 - 8,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
Bidragon
Model Number:
JZ
Contact Supplier Request Quote Chat Now
Beijing Double Dragon International Industrial & Mining Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin Qingdao Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Henan, China
Brand Name Bidragon
Model Number JZ
Condition New
After-sales Service Provided Engineers available to service machinery overseas

Specifications

JZ series winch air:
1.Modern AC or DC drive systems.
2.Reliable and efficient designs.
3.Customer training.

JZ series shaft mining equipment main:



1. Hoist reliability.



2. Availability and performance.



3. Reliable and efficient designs.



4. High quality steel made.



5. Every design meets the customer’s requirements.



6. Shaft equipment such as skips, ropes with attachments and measuring pockets.



7. Customer training.





Applications:





JZ Series Shaft Sinking Winch is applied to overhang like scaffold ,water pump ,water pipe, grouting pipe, wind-cone, etc. during sinking operation on vertical shaft of coal ,metal and nonmetallic mine.



Technical Parameters:





Model JZ-5/400 JZA-5/600 JZ-10/800/1000 JZ-16/800 JZ-16/1000/1300 JZ-25/1300/1500
Maximum Static Tension of Rope 5000KG 5000KG 10000KG 16000KG 16000KG 25000KG
Rope Capacity 400M 600M 800/1000M 800M 800/1300M 1300/1500M
Mean Speed of Rope High Speed 6M/MIN 6M/MIN 6M/MIN 6M/MIN 6M/MIN 6M/MIN
Low Speed 3M/MIN 3M/MIN 3M/MIN 3M/MIN 3M/MIN 3M/MIN
Twisting Layers 6 Layers 10 Layers 7 Layers 6 Layers 7 Layers 9 Layers
Rope Diameter 23MM 23MM 31MM 40MM 40MM 52MM
Winding Drum Diameter 400MM 400MM 800MM 1000MM 1000MM 1050MM
Width 900MM 1000MM 1050MM 1400MM 1400MM 1560MM
Center Height 650MM 580MM 800MM 1050MM 1050MM 1250MM
Speed Ratio Reducer High Speed 50 50 63.5 77 77 77
Low Speed 100 100 127 154 154 154
Overall gear ratio High Speed 252.5 252.5 388 506.6 506.6 506.6
Low Speed 505 505 776 1013.2 1013.2 1013.2
Motor Model Y160L-6 Y160L-6 Y200L2-6 YR250M1-8 YR250M1-8 YZR280M-8
Power 11KW 11KW 22KW 30KW 30KW 55KW
Rotate Speed 970 Rp/M 950 Rp/M 970 Rp/M 720 Rp/M 720 Rp/M 728 Rp/M
Voltage 380V 380V 380V 380V 380V 380V

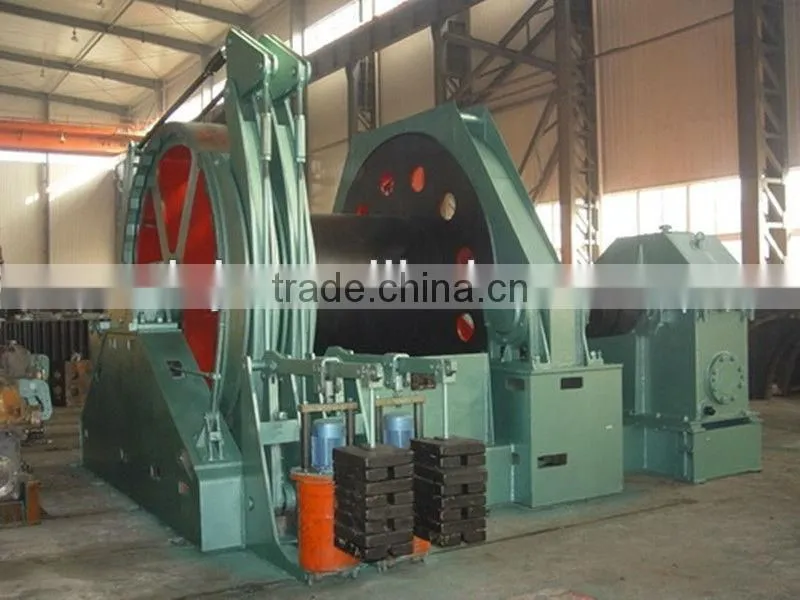

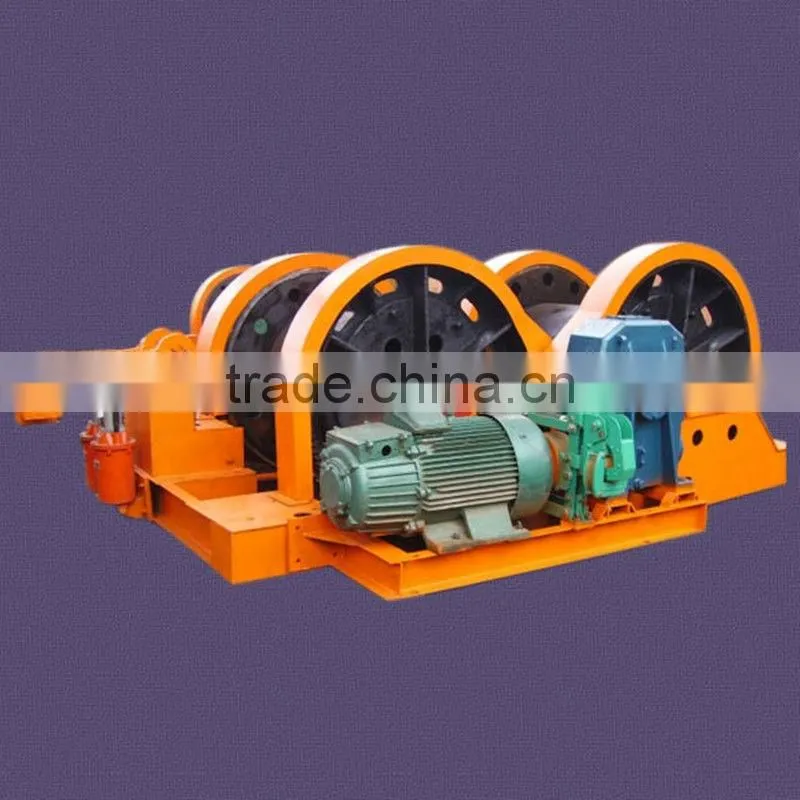

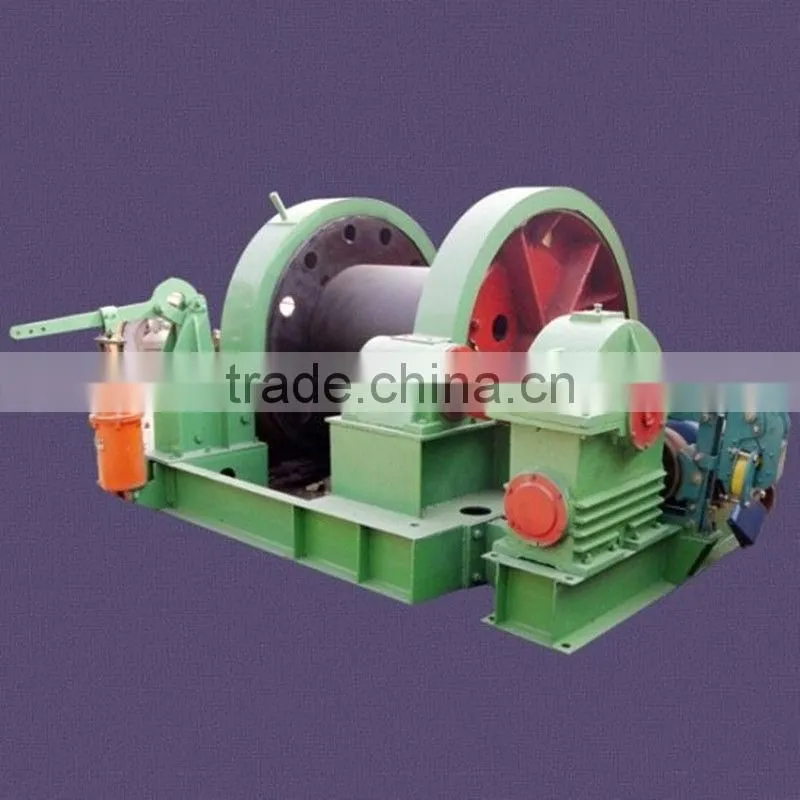

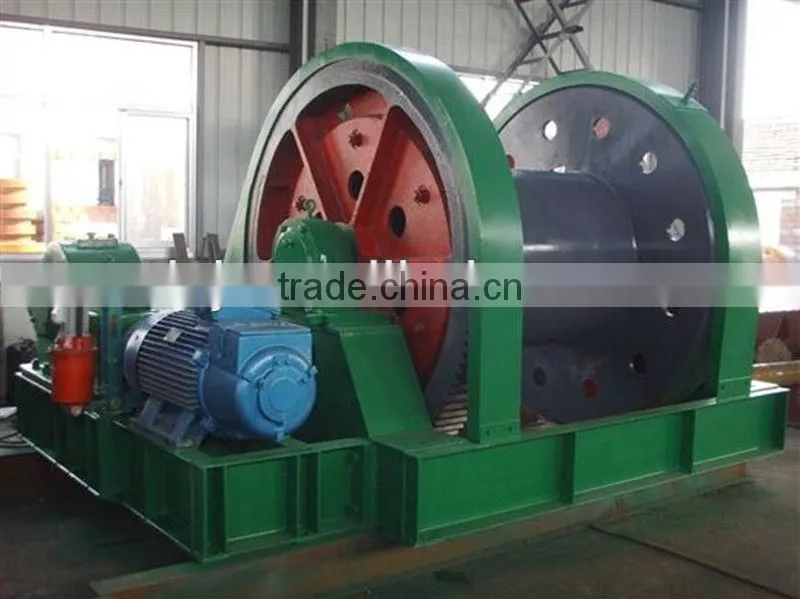

Pictures:

JZ series winch airJZ series winch airJZ series winch airJZ series winch airJZ series winch air
