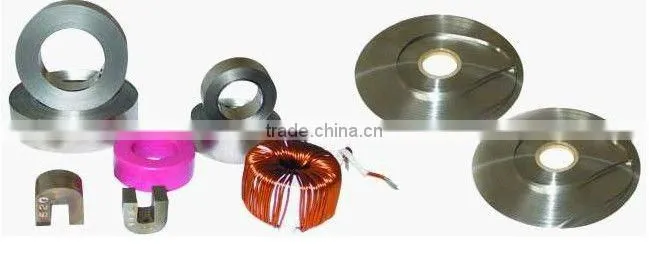

Toroidal Transformer for Various Applications
US$ 1 - 10
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
Bidragon
Model Number:
BOD-800VA
Payment & Shipping
Payment Methods:
Port of Shipment:
tianjin
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Supply Amorphous Alloy Core/transformer CoreUS$ 1 - 10MOQ: 10 Kilograms -
Soft Magnetic Materials,amorphous Alloy Core,transformer CoreUS$ 1 - 10MOQ: 10 Kilograms
-
Inductor Choke Filter for Switching PowerUS$ 1 - 10MOQ: 500 Pieces
-
Toroidal Coil Winding Machine For Current TransformerUS$ 1,000 - 3,000MOQ: 1 Set
-
Automatic Toroidal Winding Machine For Current Transformer Inductor UPSUS$ 5,000 - 40,000MOQ: 1 Set
Place of Origin
Henan, China
Brand Name
Bidragon
Model Number
BOD-800VA
Usage
Power
Phase
Single
Coil Structure
Toroidal
Coil Number
Autotransformer
Specifications
Toroidal Transformer1. Professional supplier
2. High quality
3. Best price

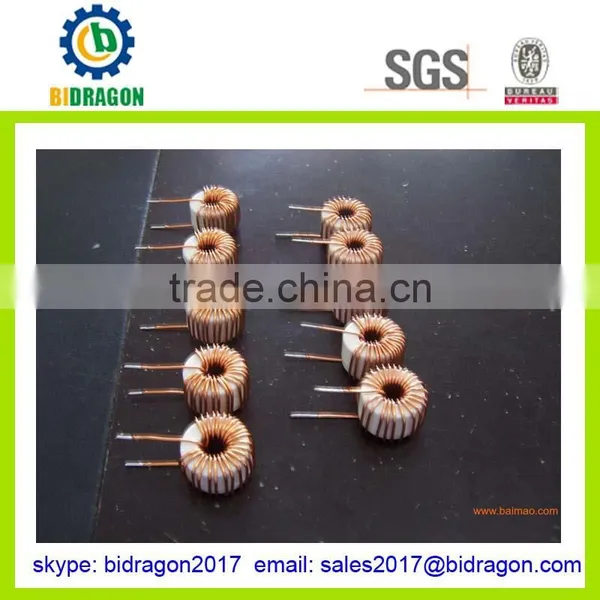

Toroidal Transformer
1. product description
Used by 0.27 mm, 0.30 mm high quality cold-rolled orientation silicon materials which is low iron loss and high magnetic, the advantages of our prod ucts are small size, low temperature, magnetic flux leakage small, installation easy
High efficient
It is product by high quality material and the type is compact. It can narrow the gap between the coil and the core. So the efficiency is above 90%.
Low magnetic flux leakage
The gap between core and coil is small and the coil is uniformly.
Low noise and low temperature
Due to the high quality materil and the coil is uniformly, the resistance loss and the fever is very low.
Application
Toroidal transformer is widely used in the area of the power transportation and the tranform of voltage and current. It is widely used in the power technology and electronic area. Such as autotransformer, isolation transformer and lighting transformer etc. It also has special application,such as mutual inductor. We can produce the transformer as the guests’ requirements.
Power |
30VA-5KVA |
Input voltage |
Technical drawings |
Frequency |
47Hz-63Hz |
Phase |
Single-phase |
Core shape |
The annulus |
Core structure |
The annulus |
Winding |
Technical drawings |
Insulation class |
Class B |
Dielectric |
4kv/3mA/3S |
Operating temperature |
50°C |
Shied |
Optional |
Terminal |
Optional |
2. Product material
Name |
Specification |
Features |
|
Cold rolling orientation quality ferrosilicon
|
0.27mm or 0.30mm |
Low iron loss High magnetic |
Lacquer clad round copper wire |
QZ-150,QZ-180 |
Anaerobic copper High strength Low loss |
BOPET thin film |
0.05mm-0.08mm |
Reduction: 150°C in 30minutes |
PV soft copper wire |
Technical drawing |
450V/750V |
3. SIZE
| Power/VA | Size | Weight/kg | Chasiss size | Gland | Screw | |
| Power | H/mm | D/mm | L/mm*W/mm | Mounting hole/mm | mm | |
| 20 | 32 | 70 | 0.5 | 80*80 | 6.5 | M6 |
| 30 | 30 | 73 | 0.6 | 80*80 | 6.5 | M6 |
| 50 | 30 | 80 | 0.85 | 90*90 | 6.5 | M6 |
| 80 | 35 | 85 | 1.1 | 100*100 | 6.5 | M6 |
| 100 | 40 | 90 | 1.32 | 100*100 | 8.5 | M8 |
| 150 | 45 | 95 | 1.4 | 100*100 | 8.5 | M8 |
| 200 | 50 | 105 | 2.4 | 110*110 | 8.5 | M8 |
| 250 | 52 | 110 | 2.7 | 110*110 | 8.5 | M8 |
| 300 | 55 | 110 | 2.9 | 110*110 | 8.5 | M8 |
| 350 | 60 | 115 | 3.2 | 125*125 | 8.5 | M8 |
| 400 | 65 | 120 | 3.5 | 125*125 | 8.5 | M8 |
| 450 | 65 | 120 | 3.8 | 125*125 | 8.5 | M8 |
| 500 | 68 | 120 | 4.2 | 125*125 | 8.5 | M8 |
| 600 | 70 | 140 | 5.3 | 150*150 | 8.5 | M8 |
| 700 | 70 | 147 | 5.6 | 150*150 | 8.5 | M8 |
| 800 | 70 | 150 | 6.2 | 150*150 | 8.5 | M8 |
| 1000 | 75 | 165 | 7.6 | 180*180 | 8.5 | M8 |
| 1200 | 78 | 170 | 8.5 | 180*180 | 8.5 | M8 |
| 1500 | 80 | 175 | 9.7 | 180*180 | 10.5 | M10 |
| 1800 | 83 | 190 | 12.5 | 200*200 | 10.5 | M10 |
| 2000 | 88 | 200 | 13.5 | 200*200 | 10.5 | M10 |
| 2500 | 92 | 205 | 14.8 | 200*200 | 10.5 | M10 |
| 3000 | 98 | 220 | 16.5 | 230*230 | 11.5 | M10 |
| 5000 | 110 | 235 | 20.5 | 245*245 | 12.5 | M10 |
FOR MORE INFORMATION PLEASE KINDLY CONTACT WITH MS.YOLAND, SKYPE; bidragon2017
