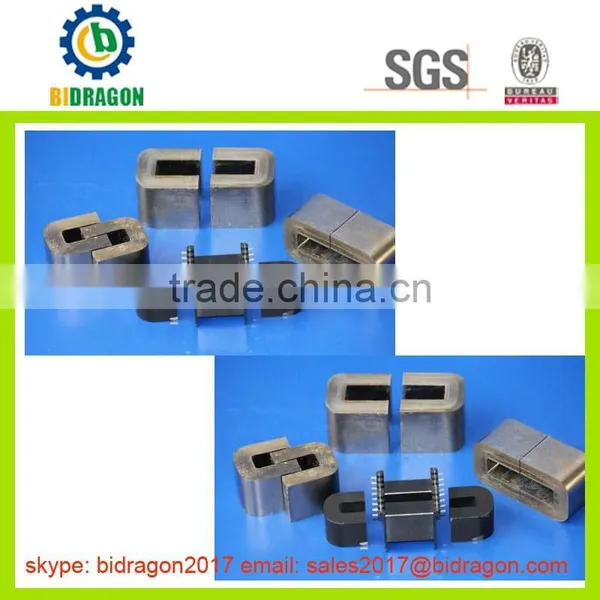

Widly Used Amorphous Magnetic Core

Name: Widly Used Amorphous Magnetic Core
Brand: bidragon
SKU: 139817111

US$ 1 - 100 MOQ: 200 Pieces

Key Specifications

Place of Origin:

Henan, China

Brand Name:

bidragon

Model Number:

Amorphous Core

Payment & Shipping

Payment Methods:

Port of Shipment:

China main port

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Henan, China

Brand Name bidragon

Model Number Amorphous Core

Type Other, Amorphous Core

Composite Ferrite Magnet

Shape Cup Shape

Application Industrial Magnet

Specifications

amorphous magnetic core
1. Close flux path
2. Low magnetic leakage and low noise
3 .High efficiency
4. Lig

amorphous magnetic core

Product Description

Properties :

Bs(T)	≥1.2T
Br(T)	≤0.15T
Core lossP3/50K(50KHZ 0.3T)	≤30W/Kg
Core lossP5/20K(20KHZ 0.5T)	≤25W/Kg
Initial permeability μ0(Hm=0.08A/cm)	≥30000
Corecivity Hc(A/m)	<2.0
Curie temperatureTc	570°C

Specifications :

Grade	Core dimentions(mm)			Finished dimentions(mm)			The effective section	Mean core path length (cm)	Weight (g)	Suitable power (KW ) (20KHz of fre- quency of utili- zation )
Grade	ID	OD	H	ID	OD	H	The effective section	Mean core path length (cm)	Weight (g)
FUL406420	40	64	20	37	66	23	1.77	16.3	215	0.8—1.4
FUL47025	40	70	25	37	73	28	2.42	17.3	310	1.2—2.0
FUL507525	50	75	25	47	78	28	2.13	19.6	310	1.2—2.1
FUL508020	50	80	20	47	83	23	2.18	20.4	330	1.3—2.2
FUL508025	50	80	25	47	83	28	2.65	20.4	400	1.6—2.7
FUL408030	40	80	30	37	83	33	4.50	18.8	625	2.5—4.2
FUL409020	40	90	20	37	83	23	3.64	20.4	550	2.2—3.8
FUL509030	50	90	30	46	93	34	4.42	21.98	720	3.0—4.8
FUL5010025	50	100	25	46	94	29	4.63	23.55	810	3.5—5.2
