Specifications
hot sell amorphous toroid coresre material: Ni-Zn
2.Core specification is complete
petitive price

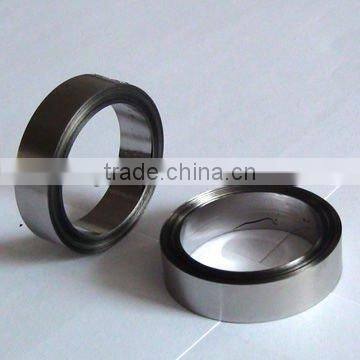

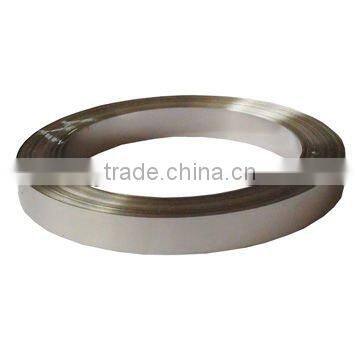

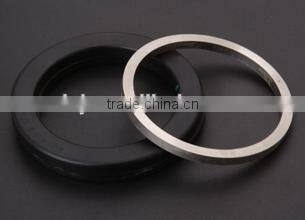

hot sell amorphous toroid cores
Transformer core / Toroidal core: (A series)
A round core wound by automatic machines with one continuous tape of CRGO silicon steel and annealed in a tunnel furnace under the protection of inert gases.
Material thickness: 0.30mm, 0.27mm, 0.23mm, 0.10mm, 0.08mm and 0.05mm
Transformer core / Toroidal core: (B series)
B round core wound by short silicon steel strips in 1 to 3 meters long, wounded with joints. They were annealed in vacuum furnace or tunnel furnace under protection of inert gases. The core posses the same advantages of A series, but the price was around 50-70% less than A series.
B series core commonly used as a replacement of EI and other toroidal transformers with lower magnetic loss requirement.
Material thickness: 0.30mm, 0.27mm, 0.23mm
Material Grade |
Equivalent Grade |
Bm (Gauss) |
BI |
M3-0.23mm |
16500/17000 |
BII |
M4-0.27mm/0.30mm |
16000 |
BIII |
M5-0.30mm |
15500 |
Can produce according to customers’ specification.
Toroidal core application:
Power transformer
Inductor
Instrument transformer
Audio transformer
Voltage regulators
Ballast
The advantage of toroidal core (Compare with EI core)
- Smaller size
- Lighter weight
- Less magnetic leakage
- Better over-load capacity
- Low temperature rise
- Easier design and mount
Our philosophy
Satisfy the customer’s demands, push forward enterprise development through quality, win trust and opportunity by constant application of creative work, realize new storage type, and promote the development of human society.
