Help CenterPLD1200(3) Concrete Dosing Unit Batching Machine Automatic
Related Products
-
PLD1600 Advanced Concrete Batching MachineUS$ 10,300 - 14,000MOQ: 1 Set -
PLD2400 Concrete Aggregate HopperUS$ 16,993 - 17,000MOQ: 1 Set
-
PLD1200B Concrete Aggregate HopperUS$ 10,000 - 15,000MOQ: 1 Set
-
PLD1200 Concrete Batching MachineUS$ 12,895 - 13,000MOQ: 1 Set
-
Industrial Dust CollecterUS$ 25,000 - 26,000MOQ: 2 Sets
Specifications
PLD1200(3) concrete dosing unit batching machine automatic1.Professional team.
2.Perfect quality.
3.Perfect service idea.

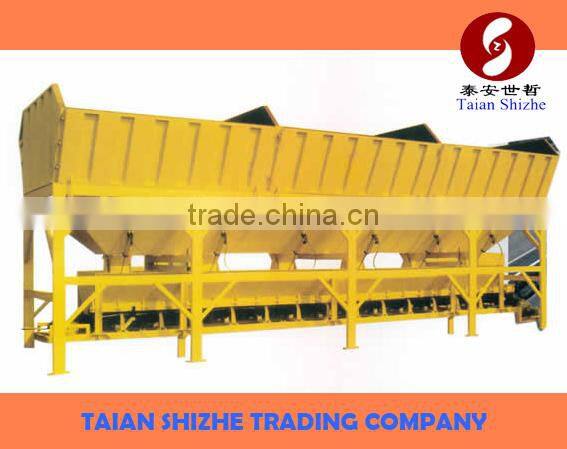

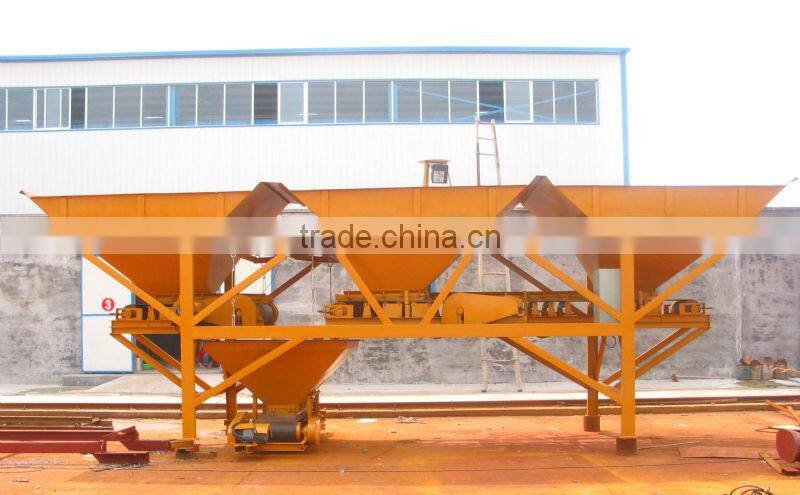

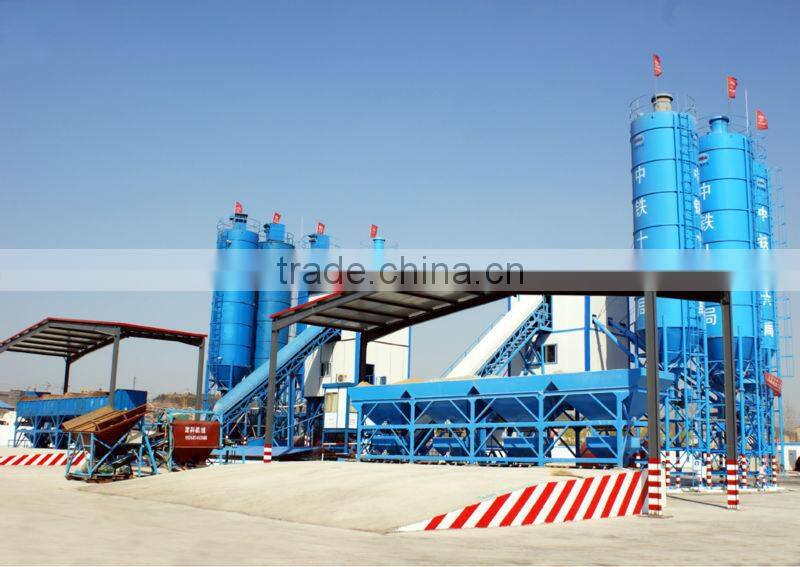

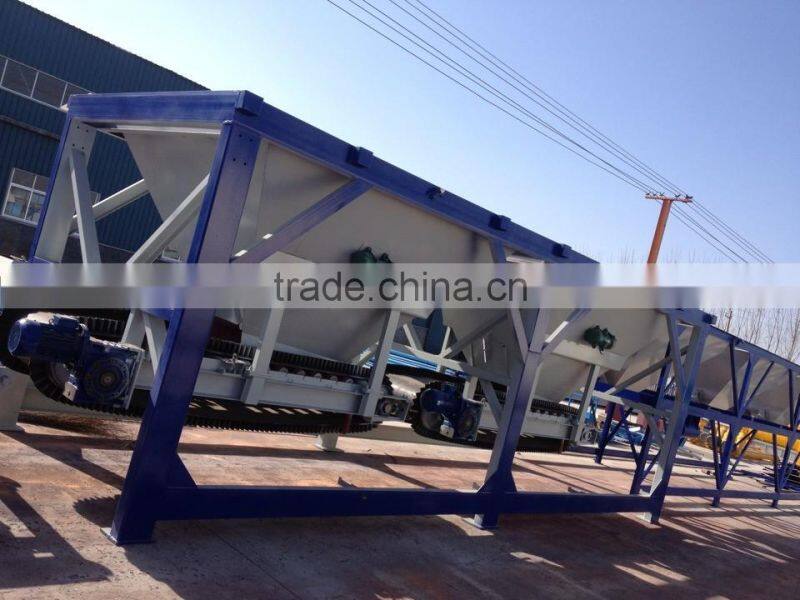

PLD1200(3) concrete dosing unit batching machine automatic
Performance Advantages:
- Automatically finish the proportioning and measuring of sand and stone.
- The control system is made up of controller and strong electricity part.
- The controller has visual features like high weighing accuracy, rapid reacting speed, stable and reliable performance, strong anti-jamming ability, simple operation, etc.
- It can control the specified proportioning times, and accumulate the total times automatically.
- Customers can choose the numbers of proportioning bins according to different use.
Cubage of weighing hopper |
1.2m3 |
Cubage of reserve hopper |
3 x 3m3 |
Productivity |
60m3/h |
Batching precision |
±2% |
Max. metage |
2000kg |
Batching category |
3 |
Loading height |
2400mm |
Measurement |
electronic weigher |
Power |
10.6kw |
Weight |
3760kg |
Batching and Unloading mode |
electronic strap (horizontal) |
| Different Models: | |||
| Model | Cubage quailty | PLD1200 | PLD1600 |
| Capacity of Single Storage Silo (m³) | 4.5 | 6 | |
| Capacity of Scale Hopper (L) | 1200 | 1600 | |
| Measuring Accuracy Error Measuring Accuracy Error | 2% | 2% | |
| Proportion Capacity(sandstone) (m³/h) | 72 | 96 | |
| Feeding Height (mm) | 2 Silo | 3000 | 3250 |
| 3&4 Silo | 2800 | 3050 | |
| Total Power (kw) | 2 Silo | 4 | 4 |
| 3 Silo | 6.5 | 8.5 | |
| 4 Silo | 7 | 9 | |
| External Dimensions (L*W*H) (mm) | 2 Silo | 6000*2370*3300 | 6600*2370*3550 |
| 3 Silo | 9300*2130*3080 | 9300*2130*3330 | |
| 4 Silo | 12300*2130*3080 | 12300*2130*3330 | |
application:
1. Technical support online service provided.
2. Technical files service provided.
3. On-site training service provided.
4. Spare parts replacement and repair service provided
5. Our Products can be customized according to clients' different requirement.
Taian Shizhe Trading Company established in 2011 is engaged in import and export trading. It is the international trading department of Shandong DOM Machinery Equipment Co., Ltd. We mainly conduct business including domestic and foreign trading, such as concrete mixing plant, concrete mixers, Chinese-foreign cooperative producing, and entrecote trading. Our manufacture mainly produces concrete batching plant, asphalt plant, brick production line and related equipments of construction. Concrete mixer, screw conveyor, cement silo and accessories have always been our hottest products for export. Besides, the small concrete tools such as concrete vibrator, concrete vibratory screed, tamping rammer, plate compactor, concrete cutter also belong to hot product. Besides, we purchase kinds of products in China for our customers.
1. Q: Where are your customers from?
A: Our Company is extending the trade scale at present. We have clients all over the world, such as Russia, Australia, Singapore, New Zealand, Canada, Malta, Turkey, Ukraine, Mongolia, Belarus, Qatar, Bangladesh, Mozambique, Brazil, Peru etc, and won the trust of the customers with good reputation. We make active effort to promoting the modernization construction of our country, encouraging the economic and technical communication with the world, and enhance the friendship with people all over the world.
2. Do you provide customize service?
Yes, we do. We can customize different products according to our customers' requirement.
3. Do you provide sample?
Yes, for most of our products, we provide sample for customers' reference. But, for the whole plant, we cannot provide. We welcome our customers to visit us very much.
4. Q: What is your MOQ?
A: Our MOQ is one set.
Thanks for your patience.
If you have any further question, please do feel free to contact me.
Tel: +86-157-53805280
Skype: wufangjie1118
