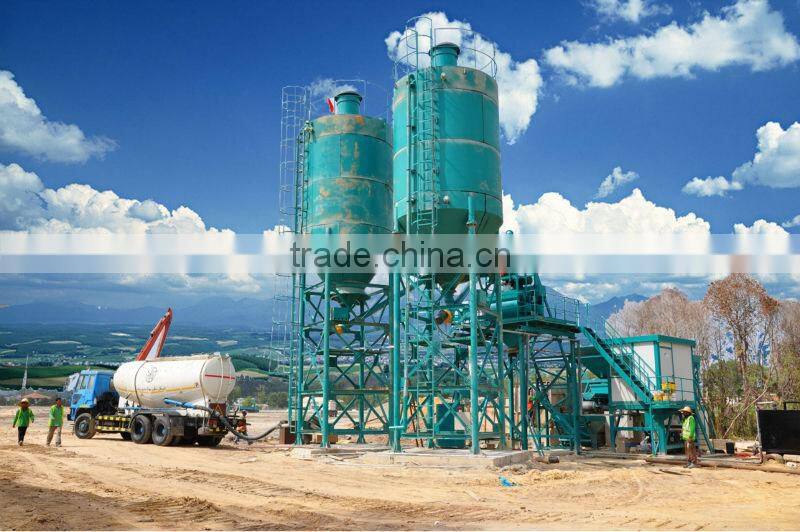

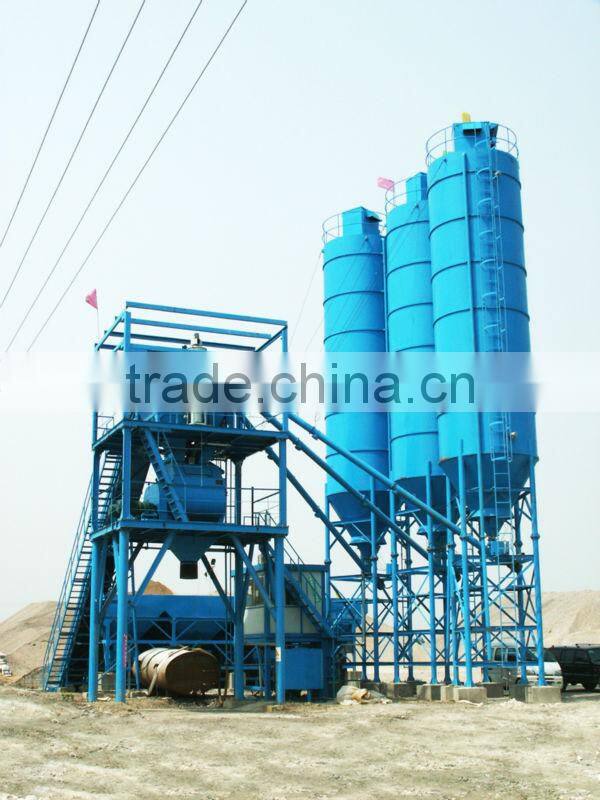

HZS25 concrete mixing station plant
HZS25concrete mixing plant is the ideal equipment for producing concrete products.
It adopts JS500 twin-shaft concrete mixer which has a high mixing quality.
The plant is consist of twin shaft mixer, measuring and weighing system, water supply system, air supply system, belt conveyor, batching machine.
This plant can be widely used in industrial, civil construction, road, railway, bridge, electric, water conservancy, port & quay and to produce commercial concrete.
The Technical Specification Data of Simple Combination HZS25 Concrete Mixing Plant
|
Production capacity |
25m³/h |
| Mixer | Model number | JS500 |
| Charging volume | 800L | |
| Discharging volume | 500L | |
Discharging height |
3.8m | |
| Maximum size of aggregate | 80/60mm | |
| Mixing motor power | 18.5KW | |
|
The aggregate batching system |
Aggregate batching system | PLD1200 |
| Aggregate hopper Volume | 5 m³ x3 | |
| Measuring accuracy | Aggregate measuring accuracy |
±2% |
| Water measuring accuracy | ±1% |
|
| Cement measuring accuracy | ±1% |
|
| Addictive measuring accuracy | ±1% |
|
| Screw conveyor | Screw conveyor capacity | 45t/h,65t/h |
| Dimension | 219mmx9000mm | |
| Cement silo | Cement silo capacity | 50t,100t |
| Control room | 6m2 |
the screw conveyor, cement silo and control room are all optional
- Technical support online service provided.
- Technical files service provided.
- On-site training service provided.
- Spare parts replacement and repair service provided
- Our Products can be customized according to clients' different requirement.
Taian Shizhe Trading Company Limited established in 2011 is engaged in import and export trading. We mainly conduct business including domestic and foreign trading, such as concrete mixing plant, concrete mixers, Chinese-foreign cooperative producing, and entrecote trading. Our manufacture mainly produce concrete batching plant, asphalt plant, brick production line and related equipments of construction. Concrete mixer, screw conveyor, cement silo and accessories have always been our hottest products for export. Besides, the small concrete tools such as concrete vibrator, concrete vibratory screed, tamping rammer, plate compactor, concret cutter also belong to hot product. Besides, we purchase kinds of products in China for our customers.
1. Q: Where is your customers from?
A: Our company is extending the trade scale at present. We have clients all over the world, such as Russia, Australia, Singapore,New Zealand, Canada, Malta, Turkey, Ukraine, Mongolia, Belarus, Qatar, Bangladesh, Mozambique, Brazil, Peru etc, and won the trust of the customers with good reputation. We make active effort to promoting the modernization construction of our country, encouraging the economic and technical communication with the world, and enhance the friendship with people all over the world.
2. Do you provide customerize service?
Yes, we do. we can customize different products according to our customers' requirement.
3.Do you provide sample?
Yes, for most of our products, we provide sample for customers' referene. But, for the whole plant, we can not provide. we welcome our customers to visit us very much.
4. Q: What is your MOQ ?
A: Our MOQ is one set.
If you have any further question, please do feel free to contact
