Specifications
HZS50 concrete mixing plants concrete batching plant concrete mixer plant1.Coulter type blade
2. high speed
HZS50 concrete mixing plants concrete batching plant concrete mixer plant
1 reasonably designed
2 short mixing time
3 low consumption
4 Competitive Price.
5 easy installatiom
6 CE certified
Product introduction

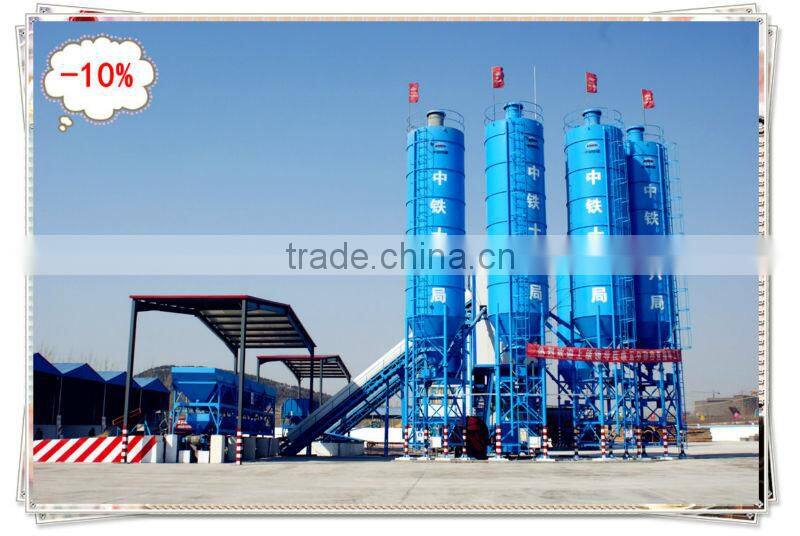

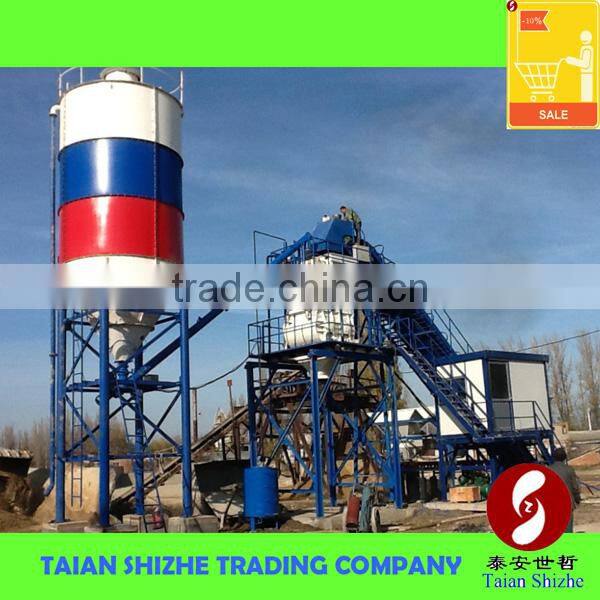

Economic HZS50 concrete batching plant by mixing materials supply,measuring,mixing and electrical control system components.Rated for50m3/h,concrete unloading height of 3.8m.It can stir all kinds of concrete.
Scope of application
Apply to electricity,water,airports,highways,bridges and other small-scale construction projects and commercial concrete production.
Advantages
Forced by JS twin-shaft mixing console,with good mixing quality,high production efficiency advantages.With the ratio of storage,automatic compensation gap,manual,semi and full automatic control computer system.According to use needs for various forms of combination.
| Technical Parameters: | ||
| Total system | Model | HZS50 |
| Max productivity (under standard conditions) | 50m3/h | |
| The total moter power | 74kw | |
| Discharge height | 3800mm | |
| Working time | 72s | |
| Mixer | Mixer model | JS1000 |
| Charging capacity/discharging capacity | 1600L/1000L | |
| Mixing motor power | 2x18.5Kw | |
| Allowable max diameter of gravel/scree | 60/80mm | |
| Batching machine | Motor power | 5.5Kw |
| Max capacity | 2700Kg | |
| Batching period | ≤60s | |
| Screw conveyor | Conveying capacity | 45t/h |
| Motor power | 7.5Kw | |
| Angle | 45° | |
| Weighing system | Aggregate measuring accuracy | ±2% |
| Powder measuring accuracy | ±1% | |
| Water additive weighing precision | ±1% | |
| Hydraulic system | Air compressor model | HK-120 |
| Motor power | 11Kw | |
| Additive system | Additive pump model | 32FS |
| Motor power | 1.5Kw | |
| Pump head | 10m | |
Cement silo |
50t,100t,150t | |
| Control room | 6m2 | |
| Total power (exclude bin and screw) | 74Kw | |
| Total weight (exclude bin and screw) | 26.5t | |
- Technical support online service provided.
- Technical files service provided.
- On-site training service provided.
- Spare parts replacement and repair service provided
Taian Shizhe Trading Company Limited established in 2011 is engaged in import and export trading. We mainly conduct business including domestic and foreign trading, such as concrete mixing plant, concrete mixers, Chinese-foreign cooperative producing, and entrecote trading. Our manufacture mainly produce concrete batching plant, asphalt plant, brick production line and related equipments of construction. Concrete mixer, screw conveyor, cement silo and accessories have always been our hottest products for export. Besides, the small concrete tools such as concrete vibrator, concrete vibratory screed, tamping rammer, plate compactor, concret cutter also belong to hot product. Besides, we purchase kinds of products in China for our customers.
