Specifications
1 Accurate measurement2 Advanted eletric control
3 Reliable after-sale service
Simple configuration with centrelied control system 2HZS35 concrete batching plant ,
***Feature: 1 reasonably designed
2 short mixing time
3 low consumption
4 low noise and long service life
5.Competitive Price.
6.easy installatiom
7.CE certified
1.Product introduction
HZS35 by mixing materials supply,measuring,mixing and electrical control system components.Rated for 35m3/h,concrete unloading height of 3.8m.It can stir all kinds of concrete.
2.Scope of application
Apply to electricity,water,airports,highways,bridges and other small-scale construction projects and commercial concrete production.
3.Advantages

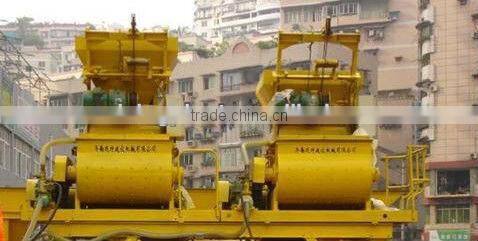

Forced by JS twin-shaft mixing console,with good mixing quality,high production efficiency advantages.With the ratio of storage,automatic compensation gap,manual,semi and full automatic control computer system.According to use needs for various forms of combination.
| Technical Parameters: | ||
| Total system | Model | HZS35 |
| Max productivity (under standard conditions) | 35m3/h | |
| Discharge height | 3800mm | |
| Working time | 60s | |
| Mixer | Mixer model | JS750 |
| Charging capacity/discharging capacity | 1200L/750L | |
| Mixing motor power | 50 Kw | |
| Allowable max diameter of gravel/scree | 60/80mm | |
| Batching machine | Motor power | 4Kw |
| Max capacity | 2000Kg | |
| Batching period | ≤60s | |
| Screw conveyor | Conveying capacity | 45t/h |
| Motor power | 7.5Kw | |
| Angle | 45° | |
| Fly ash screw conveyor | Conveying capacity | 20t/h |
| Motor power | 7.5Kw | |
| Angle | 45° | |
| Weighing system | Aggregate measuring accuracy | ±2% |
| Powder measuring accuracy | ±1% | |
| Water additive weighing precision | ±1% | |
| Hydraulic system | Air compressor model | HK-120 |
| Motor power | 11Kw | |
| Additive system | Additive pump model | 32FS |
| Motor power | 1.5Kw | |
| Pump head | 10m | |
| Total power (exclude bin and screw) | 72.5Kw | |
| Total weight (exclude bin and screw) | 1600Kg | |
