Help CenterCE ISO Hzs Ready Mix Concrete Plant on Sale Capacity 25m3/h -240m3/h
Related Products
-
Wet Mix Concrete Batching Plant Ready Mix Layout 25m3/h Oversea Engineers AvailableUS$ 1 - 21,800MOQ: 1 Set -
2HZS25 Ready Mixed Wet Double Concrete Mixing Plant AdmixtureUS$ 1 - 47,000MOQ: 1 Set
-
HZS180 Ready Mix Concrete Batching Plant 180m3/h With Free Spare PartsUS$ 1 - 205,600MOQ: 1 Set
-
YHZS90 Mobile Concrete Batching Plants for Sale 90m3/hNegotiableMOQ: 1 Set
-
Oversea Engineer Service Available 10-16m3/h Mini Portable Concrete Mixing Plant Mobile Concrete Batching Plant Wet MixNegotiableMOQ: 1 Set
Specifications
Hzs ready mix concrete plant on sale Capacity 25m3/h -240m3/h 1.Capacity:20-25m3/h2.JSTwin-shaft concrete mixer
3.German
Hzs ready mix concrete plant on sale Capacity 25m3/h -240m3/h
1.Introduction :

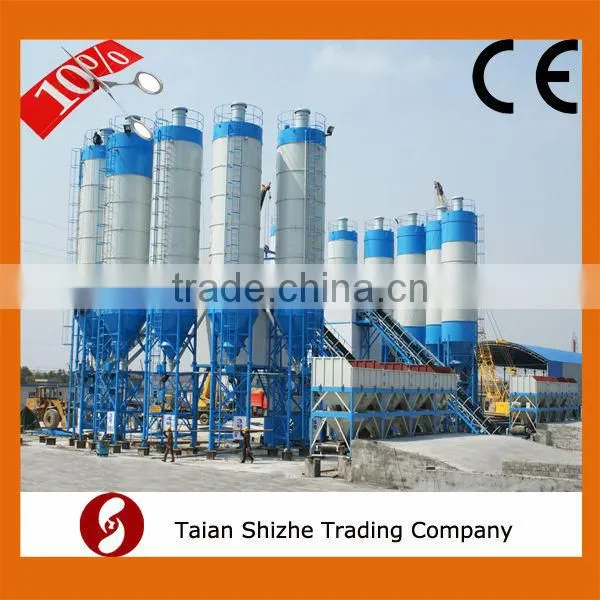

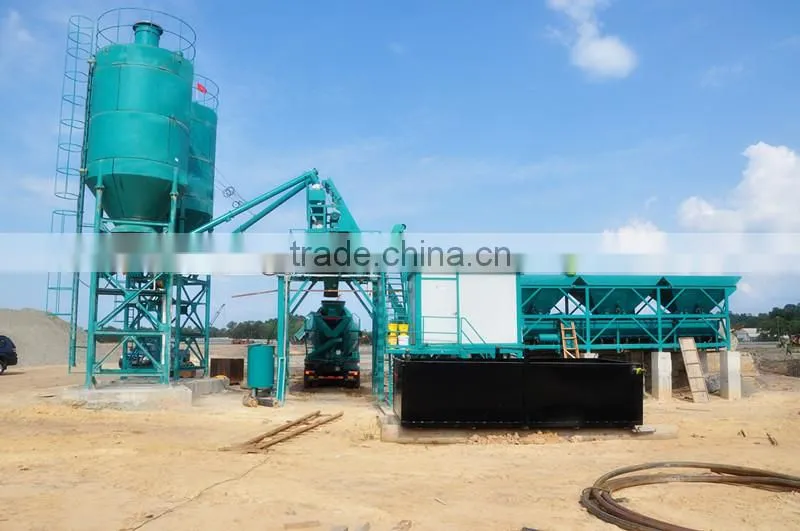

The ready mix concrete plant is consisted of mixer, material weighing system, conveying system, material storage system, control system and steel structure. It applies to large & medium scale construction site, prefabricated factory and commodity concrete manufacturer.
Technical parameter
| Model | Productivity(m3/h) | Discharger Capacity(L) | Discharger Height(m) | Mixed Aggregate(m3*number) | Aggregate | Power Balance | Water Balance | Additive Balance | Total Power(kw) | Control System | ||||
| Measure Range(kg) | Measure Precision | Measure Range(kg) | Measure Precision | Measure Range(kg) | Measure Precision | Measure Range(kg) | Measure Precision | |||||||
| HZS25 | 25 | 500 | 3.8 | 5*3 | 0-1500 | ±2% | 0-400 | ±1% | 0-200 | ±1% | 0-13 | ±1% | 75 | PC controller |
| HZS35 | 35 | 750 | 3.8 | 5*3 | 0-2300 | ±2% | 0-500 | ±1% | 0-300 | ±1% | 0-18 | ±1% | 87 | |
| HZS50 | 50 | 1000 | 3.8 | 7*4 | 0-3000 | ±2% | 0-700 | ±1% | 0-400 | ±1% | 0-25 | ±1% | 103 | |
| HZS60 | 60 | 1000 | 3.8 | 7*4 | 0-3000 | ±2% | 0-700 | ±1% | 0-400 | ±1% | 0-25 | ±1% | 142 | |
| HZS75 | 75 | 1500 | 3.8 | 15*4 | 0-4500 | ±2% | 0-1000 | ±1% | 0-600 | ±1% | 0-40 | ±1% | 188 | |
| HZS90 | 90 | 1500 | 3.8 | 15*4 | 0-4500 | ±2% | 0-1000 | ±1% | 0-600 | ±1% | 0-40 | ±1% | 191 | |
| HZS120 | 120 | 2000 | 3.8 | 15*4 | 0-6000 | ±2% | 0-1200 | ±1% | 0-800 | ±1% | 0-50 | ±1% | 225 | |
| HZS150 | 150 | 3000 | 4 | 20*4 | 0-9000 | ±2% | 0-1500 | ±1% | 0-1200 | ±1% | 0-75 | ±1% | 293 | |
| HZS180 | 180 | 3000 | 4 | 25*4 60*4 | 0-9000 | ±2% | 0-1600 | ±1% | 0-1200 | ±1% | 0-75 | ±1% | 293 | |
| HZS240 | 240 | 4000 | 4 | 30*4 65*4 | 0-12000 | ±2% | 0-2000 | ±1% | 0-1500 | ±1% | 0-90 | ±1% | 350 | |
Please note:
1. The total power doesn't include the power of cement screw;
2. Non-standard design could be made according to clients' demand;
3. The above-mentioned data could be changed due to the designing improvement, please check the updated configuration when purchasing.
components of ready mix concrete plant for sale

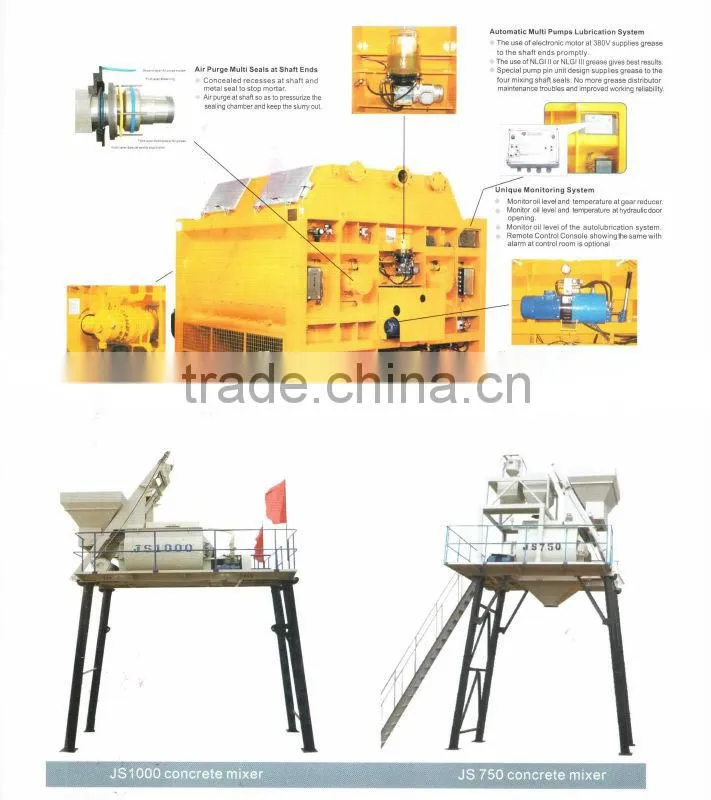

1.JSMixer
The mixing blade and lining board use wear-resisting-material. They have a long service life and they are convenient to dismantle and replace

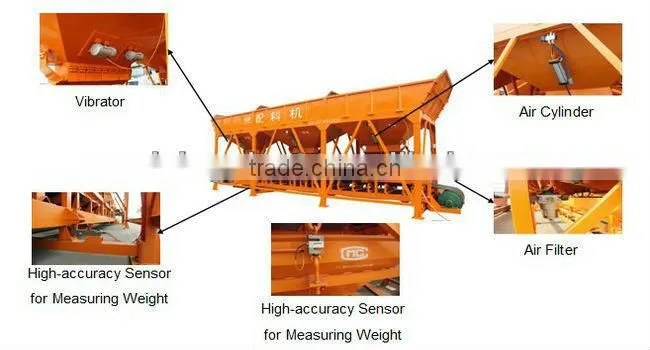

2 .Concrete batching plant
Automatically finish the proportioning and measuring of sand and stone
3.Cement silo(optional)

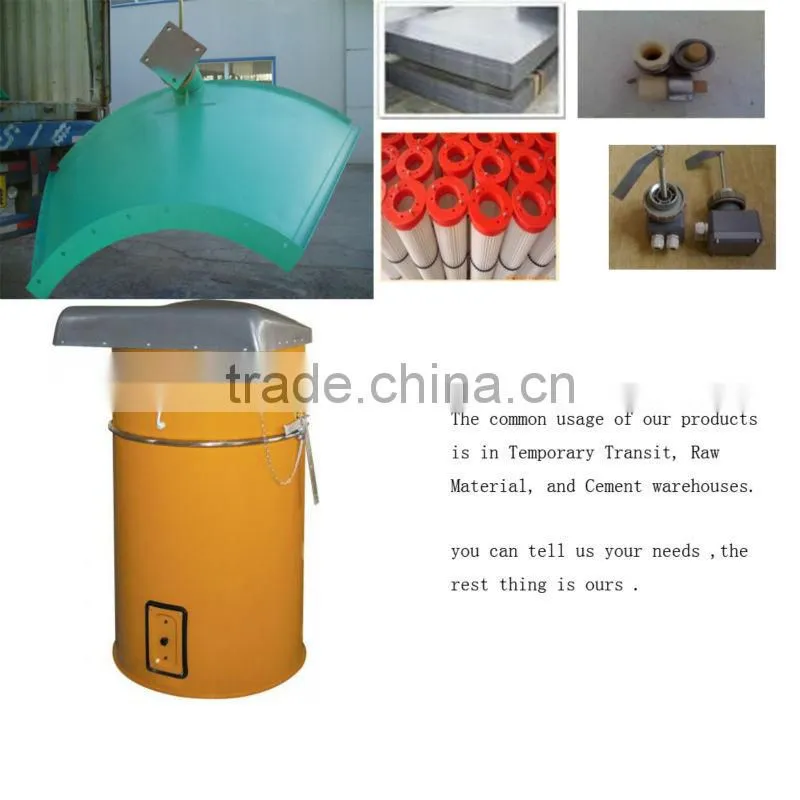

Cement silo are on storage of bulk cement, fly ash, and other things mixed agent powder special equipment, and is a kind of supplementary equipment of the concrete mixing station, mixing station buildings and roadbed materials.
With different capacities:50T,100T,150T,200T,etc(as your request).
Customized sizing and layout to specific requirement
